ProCraft Double Cover Polyester Round Slings
Made in Canada

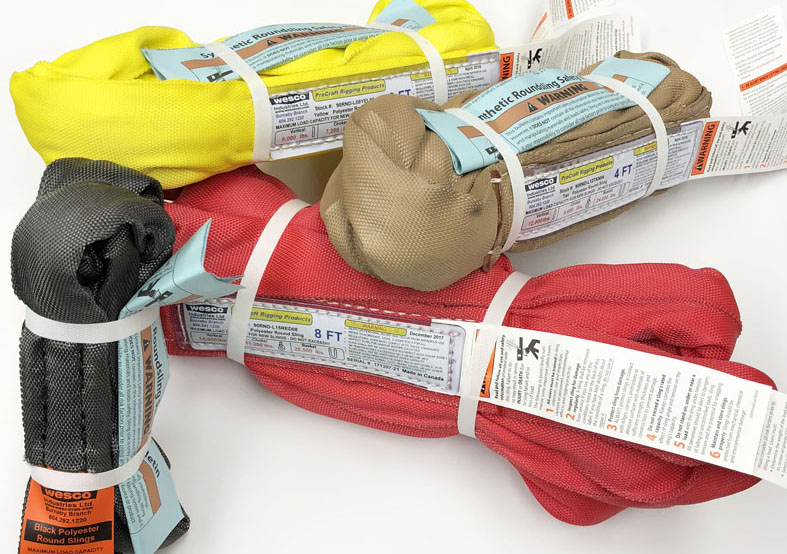

- ProCraft endless synthetic round slings are manufactured from a continuous loop of high tenacity polyester yarn covered by a polyester double jacket.
- The double wall jacket is color coded and serves to protect the inner load bearing polyester yarns from damage and UV rays
- Low stretch (about 3% at rated capacity)
- Excellent contact and conforms to shape of your loads
- Light weight and durable
- Excellent for use in choke hitch applications as sling releases easily after use
- Tagged with colour label sandwiched between thick clear plastc for longer service life
|
|

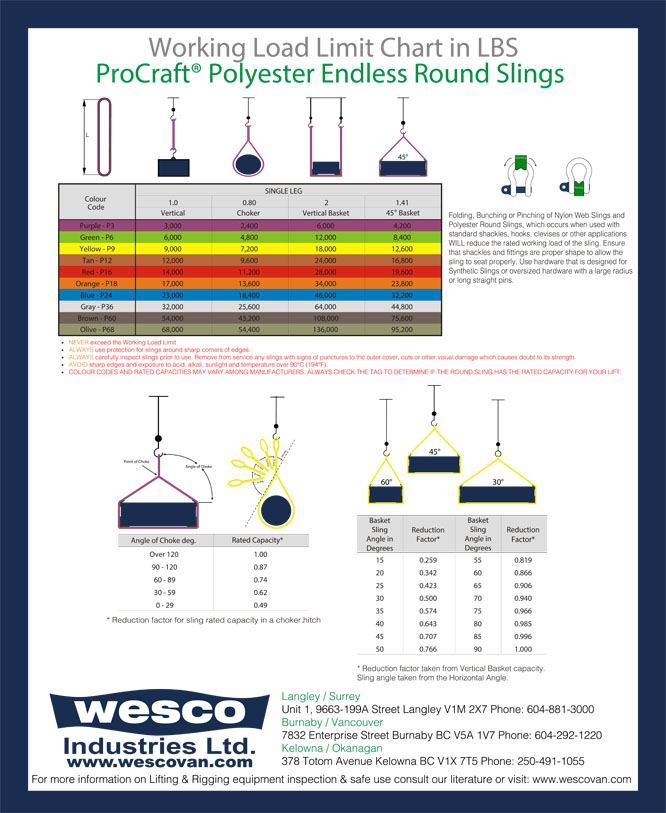

Working Load Limit of New Sling | Effective Length (Reach) when sling is pulled flat bearing point to bearing point | |||||||||||||
|
Colour (Sling Size) |
Vertical | Choker | Basket | 2 FT | 3 FT | 4 FT | 5 FT | 6 FT | 8 FT | 10 FT | 12 FT | 14 FT | 16 FT | 18 FT | 20 FT |
| 3,000 lbs. | 2,400 lbs. | 6,000 lbs. | $18.96 | $20.32 | $22.90 | $24.25 | $26.96 | $30.28 | $32.98 | $36.30 | $39.01 | $42.33 | $45.03 | ||
|
Green (#2) |
6,000 lbs. | 4,800 lbs. | 12,000 lbs. | $19.05 | $20.72 | $22.38 | $25.28 | $26.95 | $30.28 | $34.23 | $37.56 | $41.51 | $44.84 | $48.79 | $52.12 |
|
Black Studio (#2) |
6000 lbs. | 4,800 lbs. | 12,000 lbs. | $18.91 | $20.58 | $22.26 | $25.16 | $26.83 | $30.18 | $34.14 | $37.48 | $41.44 | $44.78 | $48.74 | |
|
Yellow (#3) |
9,000 lbs. | 7,200 lbs. | 18,000 lbs. | $20.53 | $22.77 | $25.02 | $28.50 | $30.75 | $35.24 | $40.35 | $44.84 | $49.95 | $54.44 | $59.55 | $64.05 |
|
Tan (#4) |
12,000 lbs. | 9,600 lbs. | 24,000 lbs. | N/A | $25.20 | $27.96 | $31.95 | $34.71 | $40.23 | $46.36 | $51.88 | $58.01 | $63.53 | $69.67 | $75.18 |
|
Red (#5) |
14,000 lbs. | 11,200 lbs. | 28,000 lbs. | N/A | $27.02 | $30.15 | $34.50 | $37.62 | $43.87 | $50.73 | $56.98 | $63.84 | $70.09 | $76.95 | $83.19 |
|
Orange (#6) |
17,000 lbs. | 13,600 lbs. | 34,000 lbs. | N/A | N/A | $32.55 | $37.43 | $41.07 | $48.36 | $56.27 | $63.56 | $71.46 | $78.75 | $86.65 | $93.94 |
|
Blue (#7) |
23,000 lbs. | 18,400 lbs. | 46,000 lbs. | N/A | N/A | $44.42 | $51.15 | $56.32 | $66.65 | $77.76 | $88.09 | $99.21 | $109.54 | $120.65 | $130.99 |
|
Gray (#9) |
32,000 lbs. | 25,600 lbs. | 64,000 lbs. | N/A | N/A | N/A | N/A | POR | POR | POR | POR | POR | POR | POR | POR |
! ! ! Do Not Exceed Working Load Limit ! ! !
