ISO GALVANIZED HI-TEST CHAIN
Sold per Foot
Tech Specs

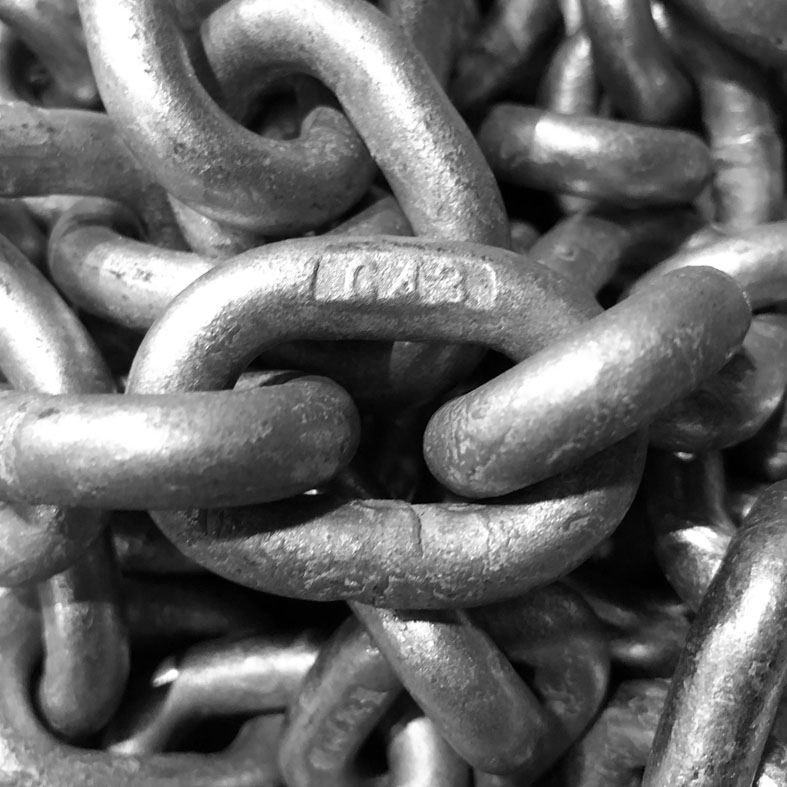

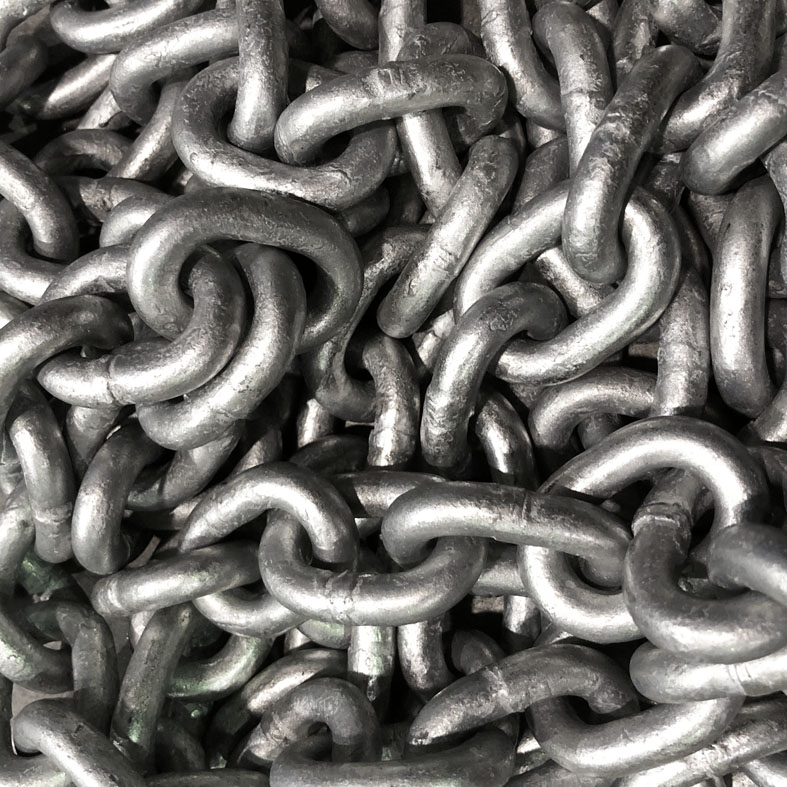

5/16 inch Grade 43 Hi-Test ISO Hot Dipped Galvanized Chain
A calibrated hot dipped galvanized carbon steel chain, with a short pitch which makes it ideal for an anchor windlass chain. The higher strength of the grade 43 allows for a higher strength to weight ratio, which allows the vessel to carry less weight in the chain locker. Each link is proof load tested and calibrated at manufacture.
Check windlass manufacturer’s specification prior to purchase, Try sample 10 ft piece in the pocket wheel to ensure correct fit.
Link dimensions - Diameter 8.4mm x 26.16mm x 29.8mm (inside length x outside width)
Breaking strength: 11,700 lbs.
Proof load tested: 5,850 lbs.
Working load limit: 3,900 lbs.
Direct fit for: 5/16 inch ACCO G43 HDG ISO Windlass Chain #'s: 500140502, 500140501, 501340501, 500191734
Country of Origin
Made in China
