Rock Exotica P3 Kootenay Ultra Block

Rock Exotica P3 Kootenay Ultra Block

The original Kootenay knot passing pulley was proposed by the legendary Arnor Larson in the late '80's and was made by Rock Exotica. Two holes for tag lines, a dual bearing and other features make the Kootenay Ultra the most advanced pulley of its type.

• Extemely compact and lightweight, while maintaining same capacity of larger Kootenay-style pulleys.

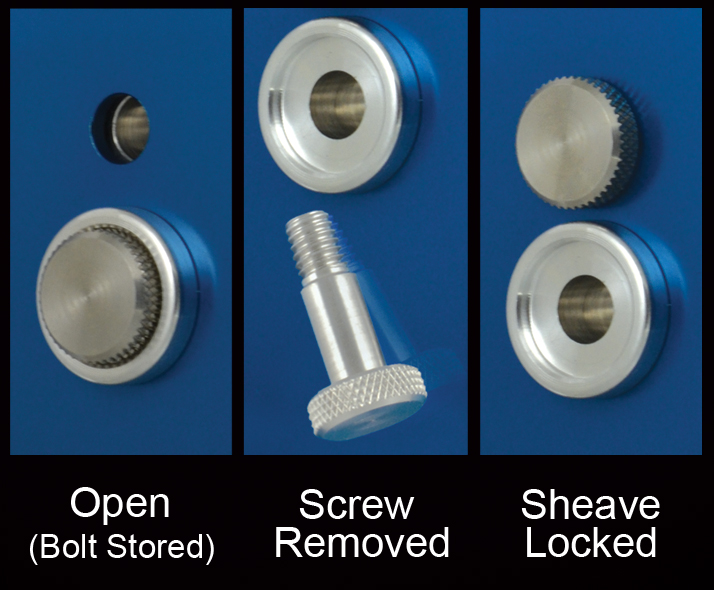

• Simplifies high-strength tie-off with a single locking screw, stowable within the axle.

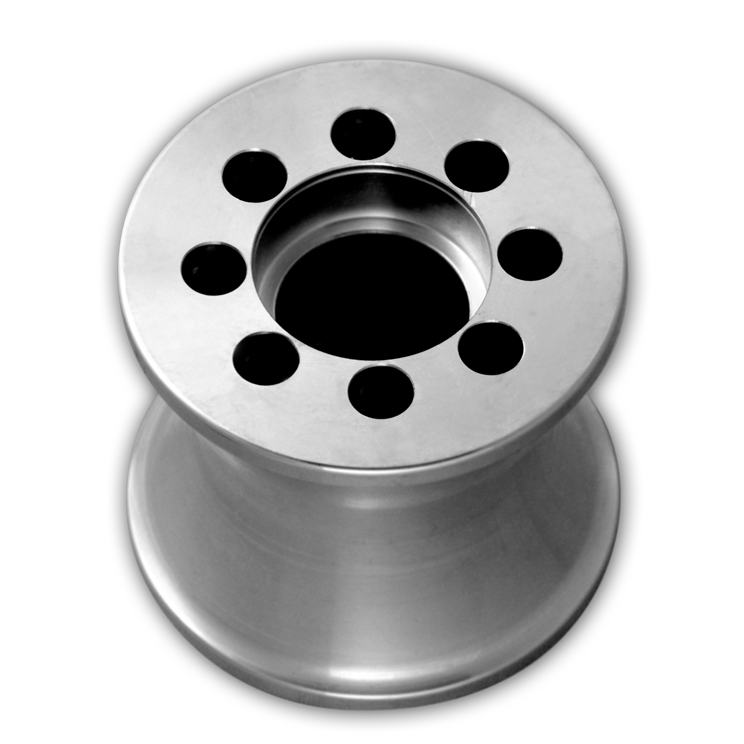

• Uses two independent sealed ball bearings for increased durability and efficiency.
• Two additional holes to separate tag lines and hoist lines, helping prevent spinning of the load and interference with connectors.

Part#: P3
Sheave diameter: 2.2 inch (56 mm)

Sheave: Single

Sheave material:  Aluminum

Weight: 25 ounces (711 gms)
Breaking strength: 39 kN
Working load: 6 kN

Rope diameter: 5/16" - 3/4" (8 to 19mm)

Type: Double Bearing
Certification: CE

Kootenay Ultra Specification Sheet Click Here

Kootenay Ultra Technical Notice Click Here

Declaration of Conformity Click Here
