Rock Exotica P41 SET-B Aztek Block Set

Rock Exotica P41 SET-B Aztek Kit

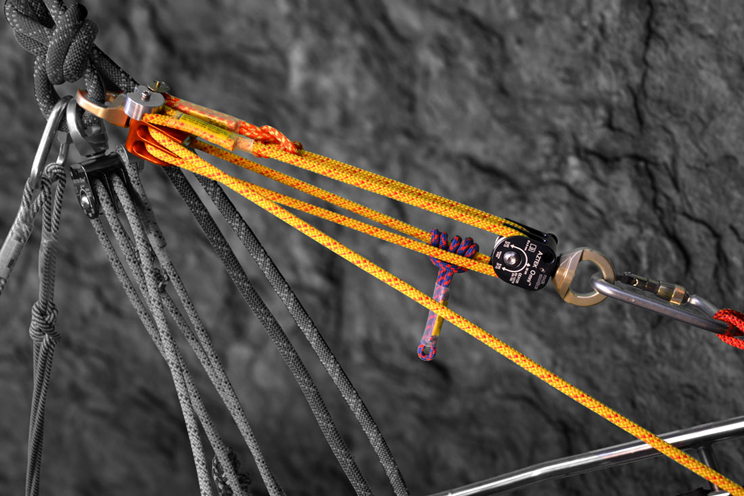

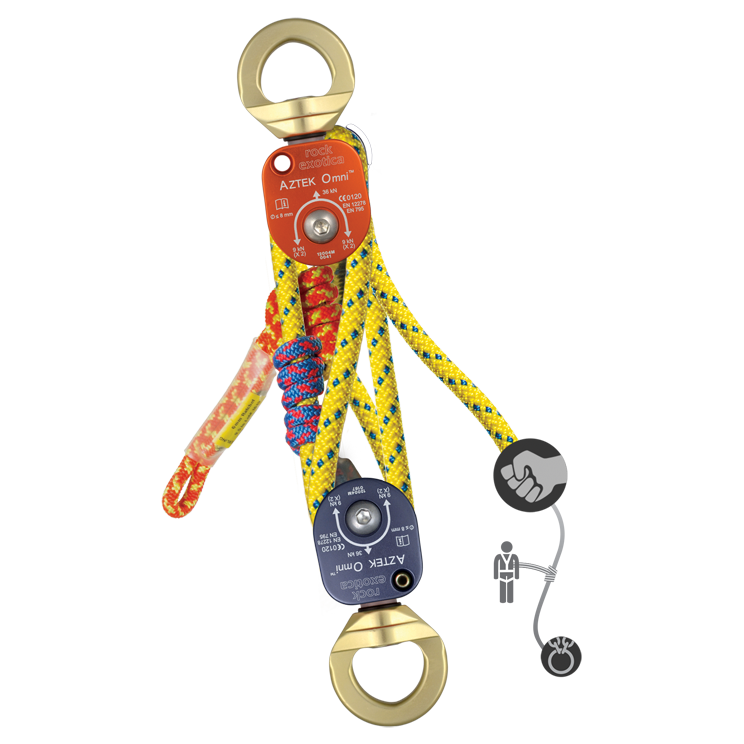

The AZTEK system has become the ultimate Personal Mechanical Advantage kit that can be configured as a 5:1, or 4:1 with a re-direct by just rotating the system. The AZTEK can be used as a pick off, adjustable directional, high directional guyline, high angle attendant tether, high angle litter scoop, load release hitch and much more. The pulleys come with 'A' and 'B' lasered on them. This coding is used to help set them up in the 4:1 configuration. The Omni-Blocks are also prusik minding pulleys and can accept up to an 8mm rope. The AZTEK pulleys are machined from solid aluminum, feature swivel connection points, and utilize high efficiency bearings.

Part#: P41 SET-B

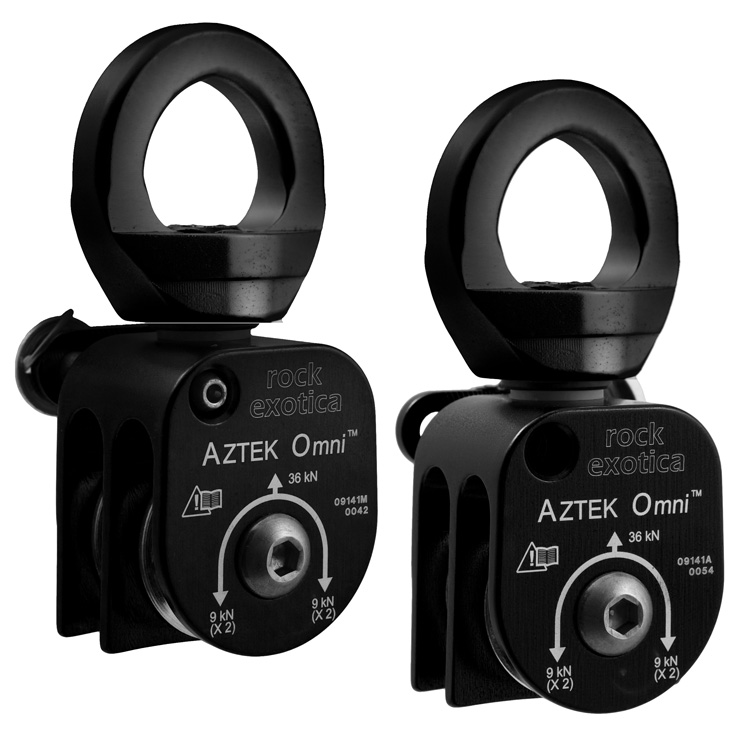

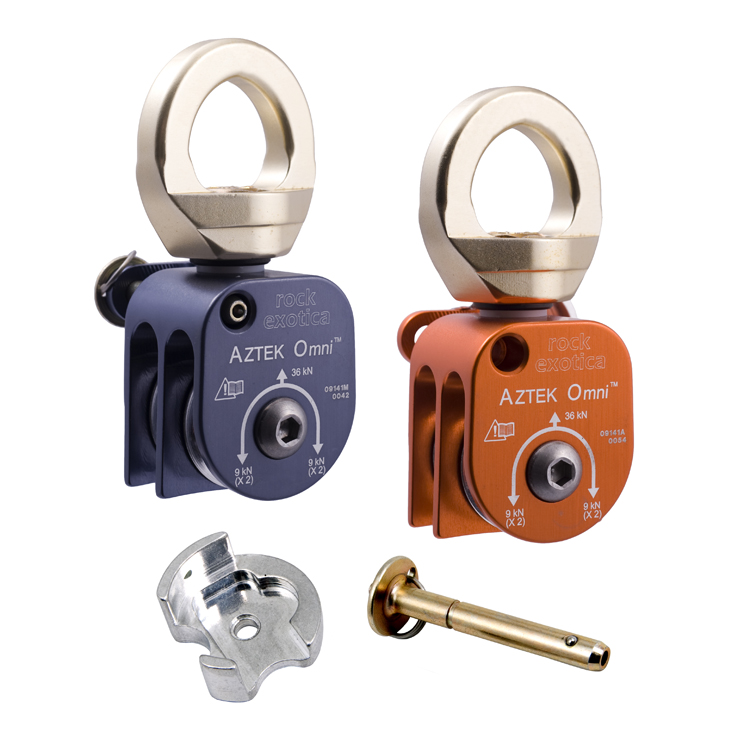

2 x Aztek Double Pulleys

1 x Quick Release Prusik Pin

1 x Rope Cover
Sheave diameter: 1 inch (25 mm)

Sheave: Double

Sheave material:  Aluminum

Weight: 15.4 ounces (436gms)

Breaking strength (Each Pulley): 2 x 9 kN x 2 = 36 kN
Working load human load: 3 kN
Working load: 5 kN non live load

Maximun rope diameter: 5/16" (8mm)
Certification: CE

Aztek Technical Notice Click Here

Declaration of Conformity Click Here
