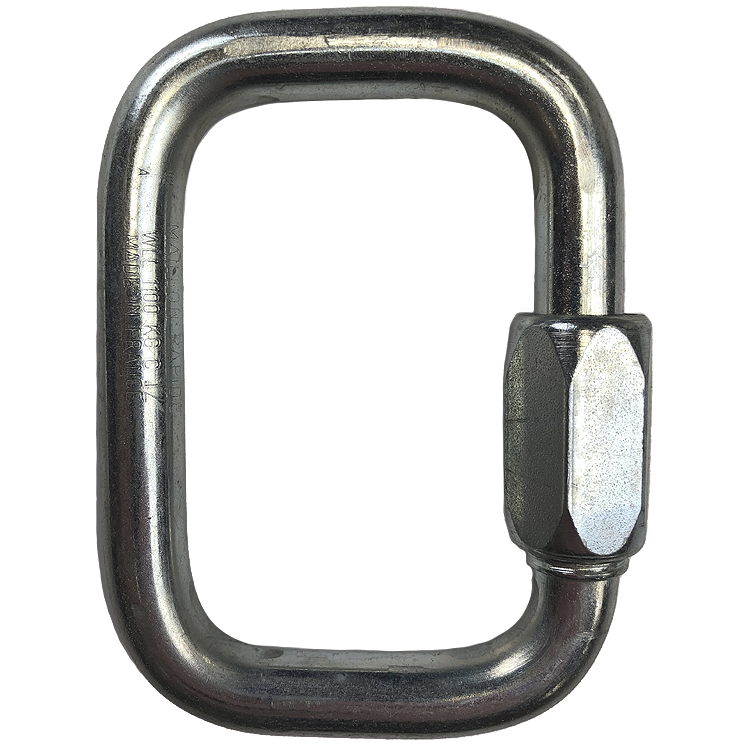

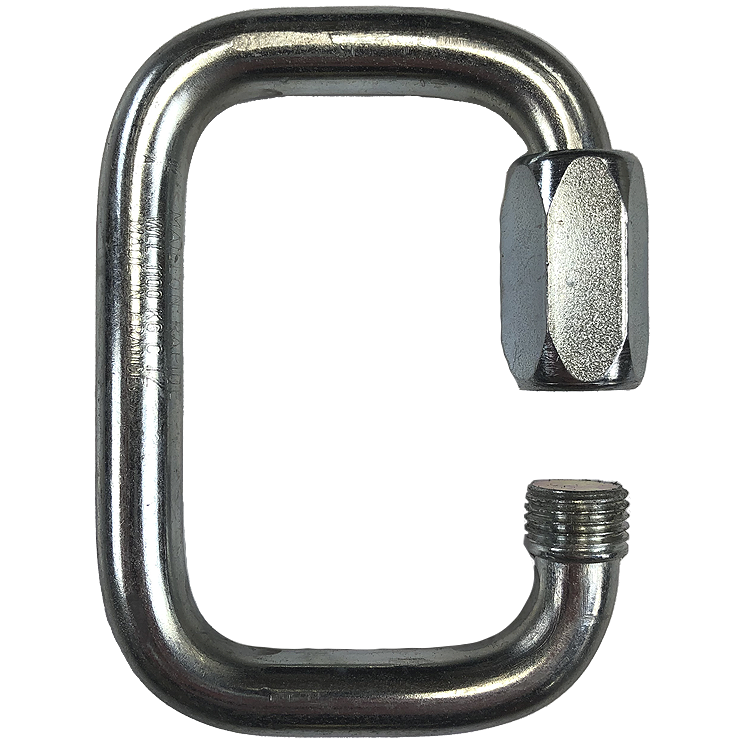

12mm Zinc Plated Square Maillon Rapide

The original oval shape was developed on the principle of a chain link fitted with nut opening. It was then further developed to a square shape for the finest connector when connecting two flat webbings of same width.. Zinc plated for extra corrosion protection suitable for general purpose applications.

Zinc plated material steel for the Rod FM-8 Sandard AFNOR 35-051 EN 10016-2 and the Nut A-42-FM 11 SMR 30 (1.0715) EN 10087

• Rod: custom-made steel used in surface processing, providing complete strength towards traction.

• Nut: high safety steel (lead-free, systematic control carried out after drawing through Eddy currents and ultrasounds).

• Surface processing made through electrolytic coating on the entire material (rod & nut).

Working Load Limit 1,100 kgs (2,425 pounds)

Technical information and dimensions (page # 19) Click Here
