Tech Specs
K090AA001 Petzl JAG Rescue Kit 60 Metre
Reversible rescue kit with JAG SYSTEM haul kit and I’D EVAC descender
The JAG RESCUE KIT is a ready-to-use reversible rescue kit designed to easily pick off and lower a victim. It contains a JAG SYSTEM haul kit, a RING OPEN gated ring, an I’D EVAC descender with integrated brake, a CONNEXION FIXE 150 cm anchor strap, a BUCKET bag and an AXIS 11 mm rope with two sewn terminations. It is available in three lengths: 30, 60 and 120 m.
Detailed description
Designed to easily pick off and lower a victim:

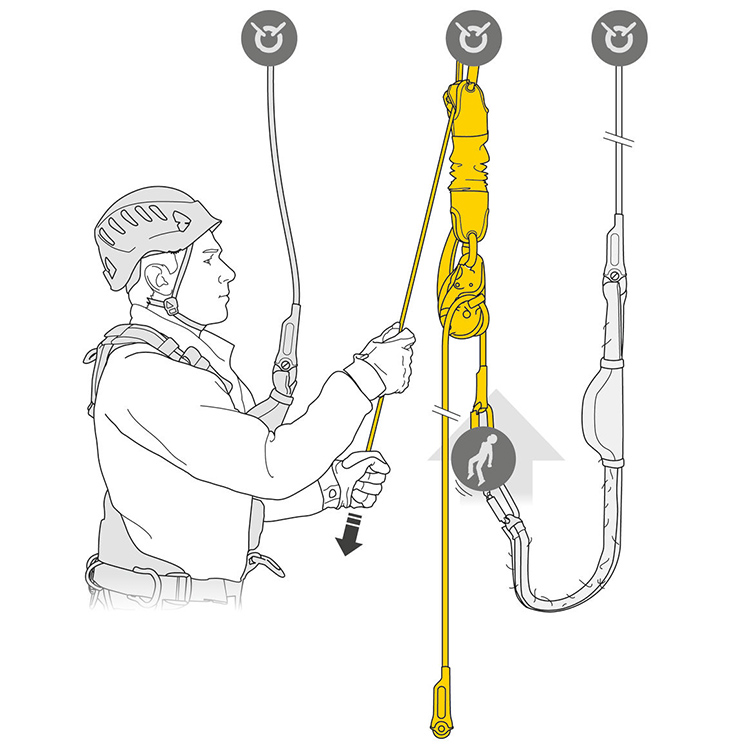

- pick-off with the JAG SYSTEM haul kit, whose 4:1 mechanical advantage and excellent sheave efficiency allow the user effort to be divided by 4 when raising a victim in order to release him

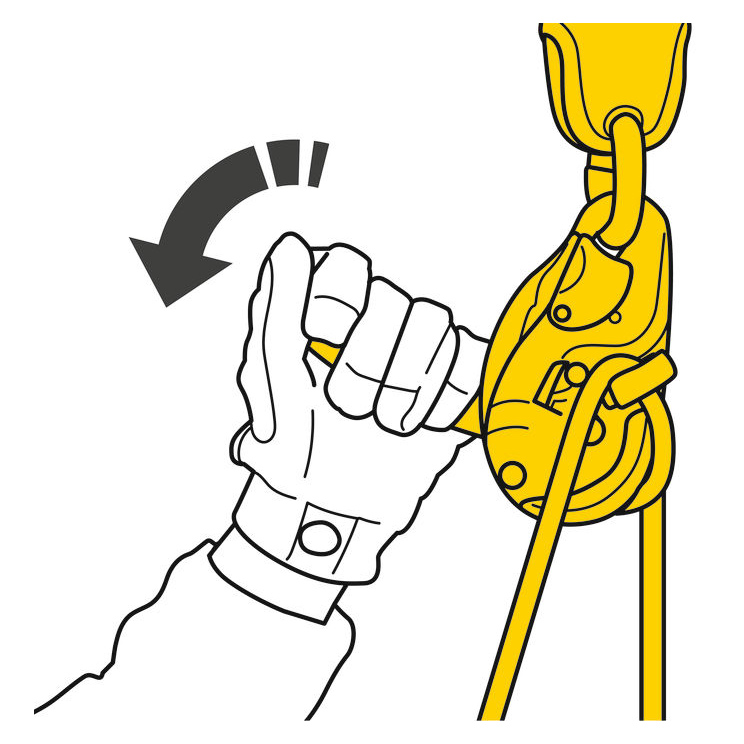

- evacuation with the I'D EVAC descender, whose handle is specially designed to easily lower a victim. Anti-panic function activates if the user pulls too hard on the handle, which brakes and stops the descent automatically
Always ready to use for quick intervention:

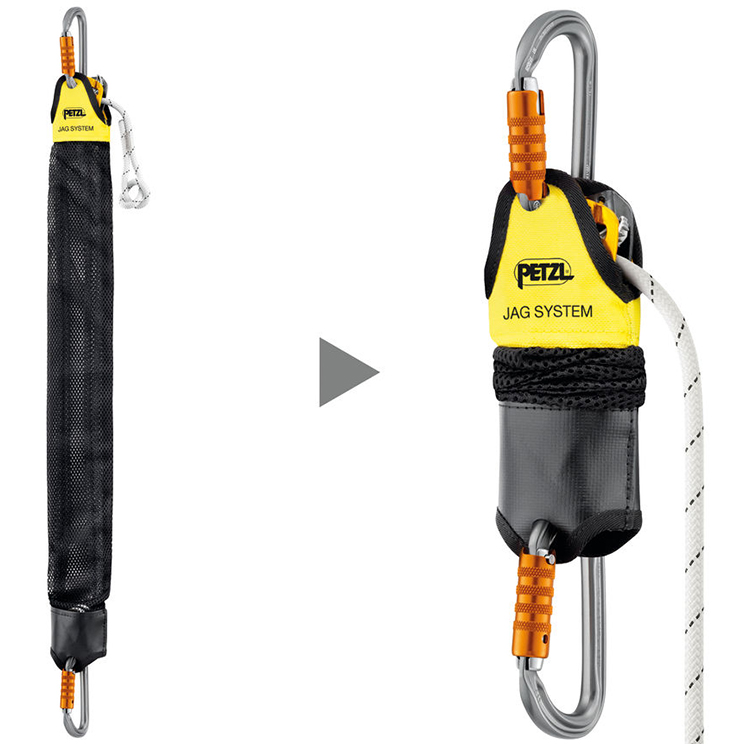

- JAG SYSTEM equipped with flexible cover that prevents any risk of tangling
- rope is pre-installed in the closed brake, which is integrated in the descender to better control the descent and to provide a constant redirect
- BUCKET bag for transporting the kit
- kit comes loaded and ready to use
Available in three rope length versions: 30, 60 and 120 meters

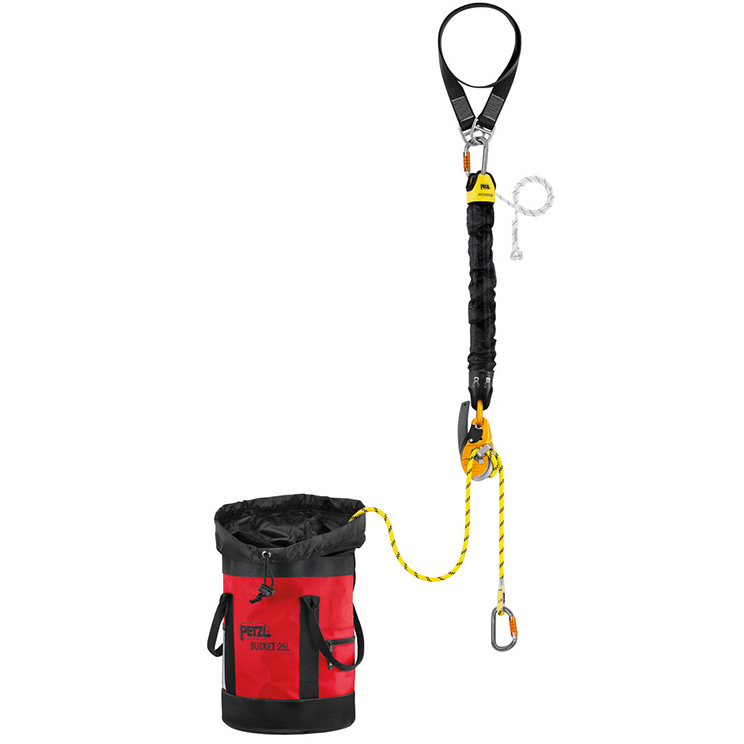

Rescue kit contents:
- a JAG SYSTEM haul kit
- a RING OPEN gated ring
- an I’D EVAC descender
- an AXIS 11 mm rope with two sewn terminations
- a CONNEXION FIXE 150 cm anchor strap
- a BUCKET 25 liter bag for the 30 and 60 meter versions, and a 35 liter bag for the 120 meter version
Specifications
Working load limit: 250 kg
Material(s): aluminum, steel, nylon, polyurethane, polyester
Technical information: Jag System Click Here
Ring open Click Here
EVAC ID Click Here
Connection Click Here
Rope Click Here
PPE inspection procedure: Click Here
PPE check list: Click Here
Tips for maintaining your equipment: Click Here
