3/8 inch Grade 10 DOSL-A x 16 feet
SLING G10 DOSL-A 3/8X16FT
GRADE100 2-LEG CHAIN SLING
SKU
90CH10-12DOSLA16
Weight
62 lb
Price
$611.00
Mfg. Part #
90CH10-12DOSLA16
Tech Specs

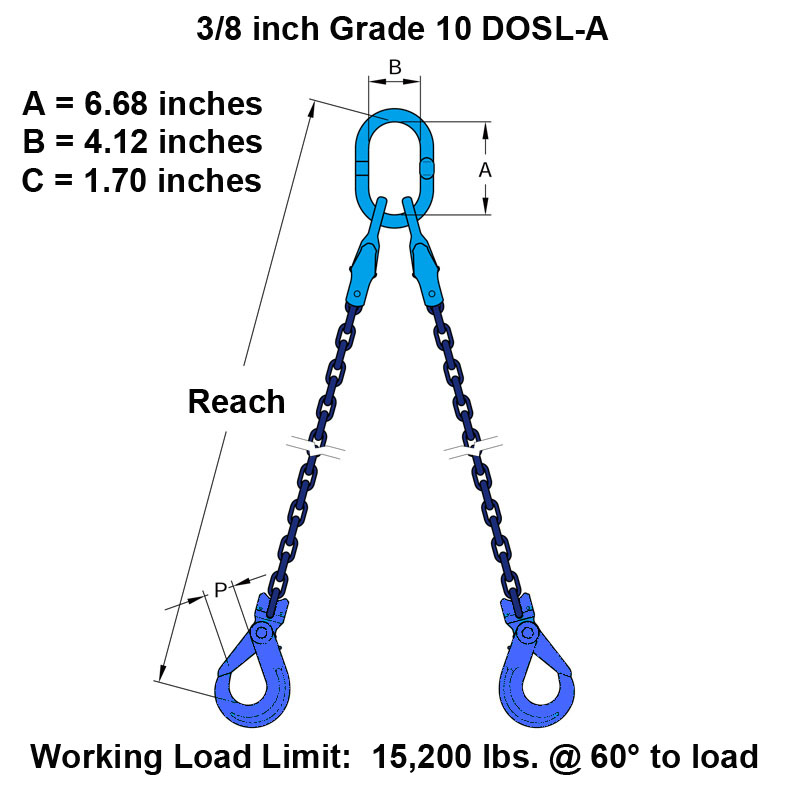

3/8 inch ProCraft Grade 100 DOSL-A x 16 feet

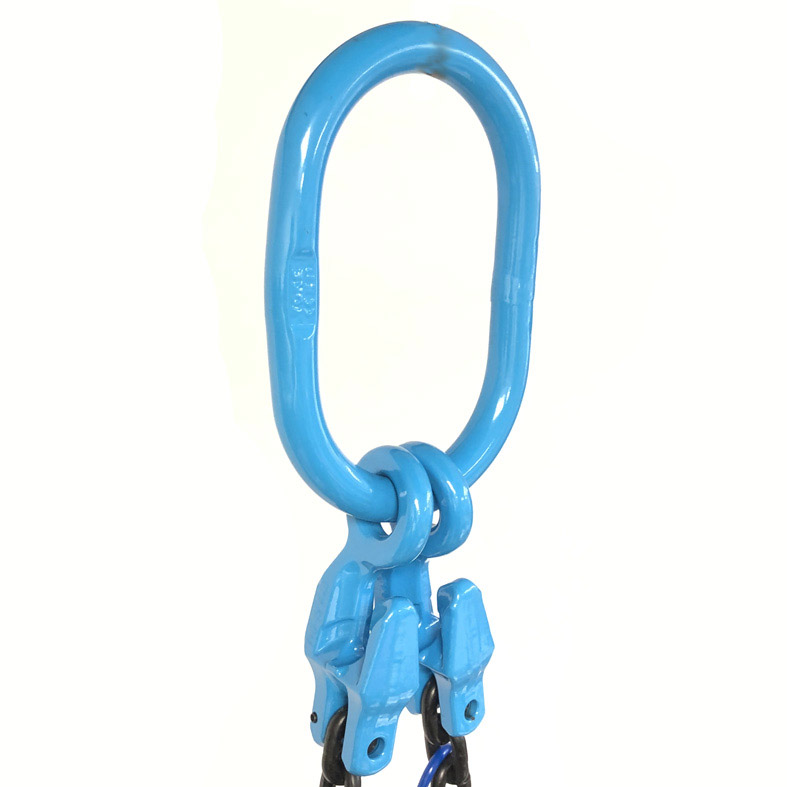

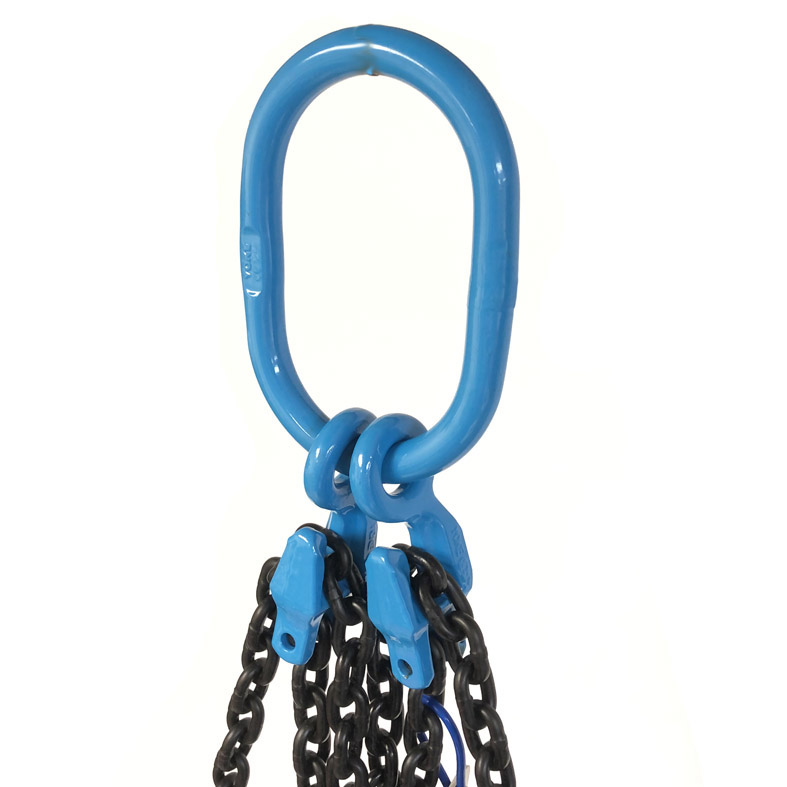

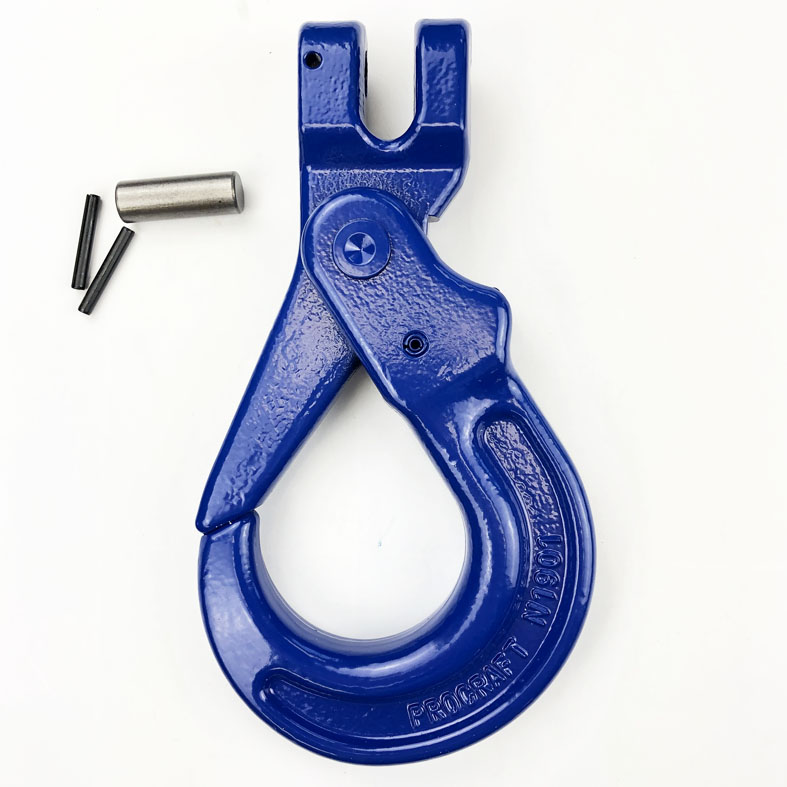

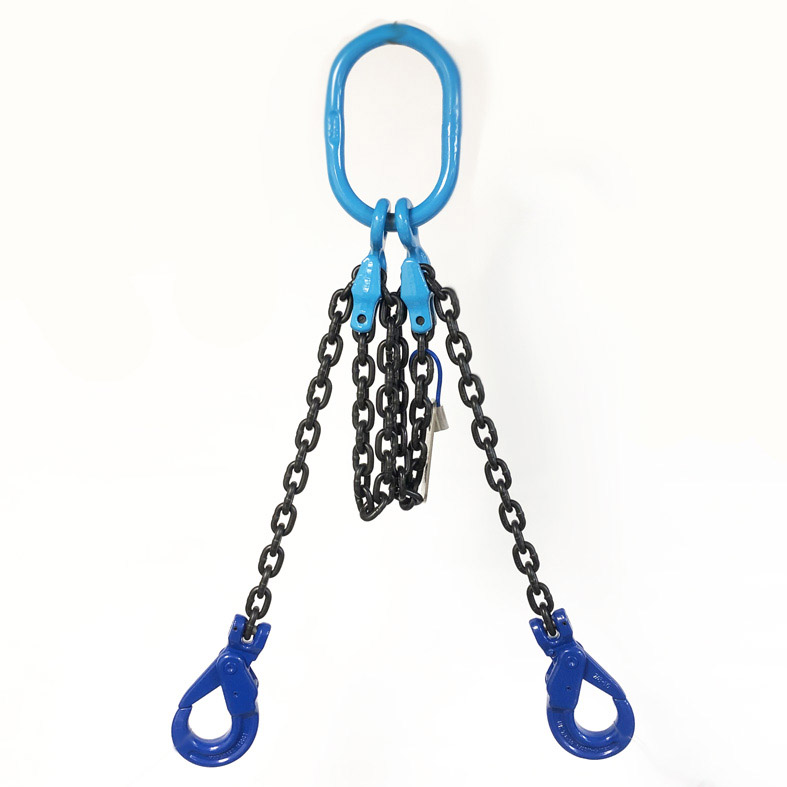

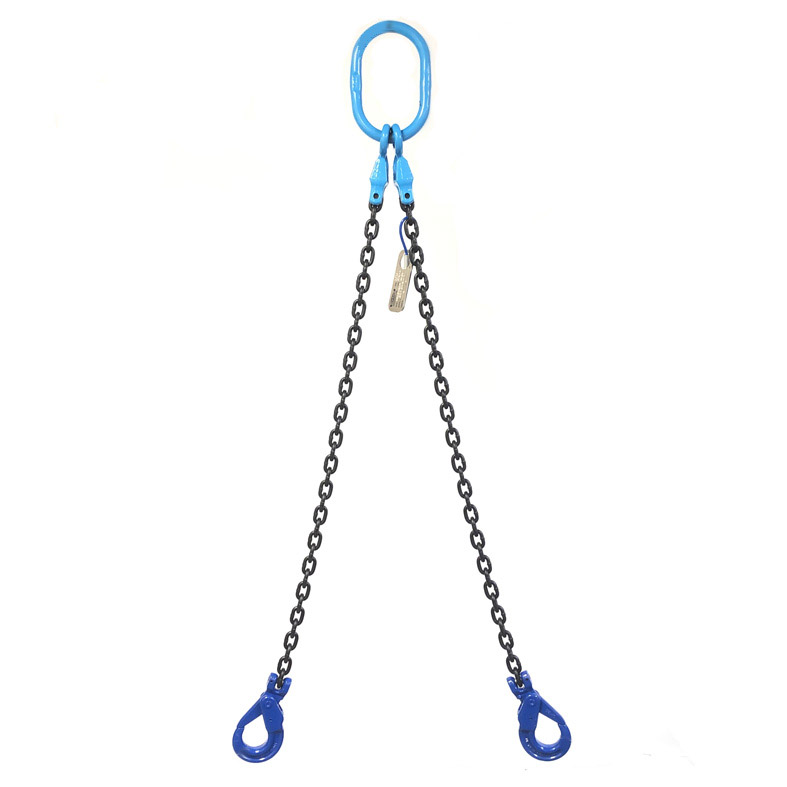

This 3/8 inch Grade 100 2 Leg Chain Sling comes with Yoke's GrabEX integrated shortening hooks on the master link. It has self locking sling hooks on bottom ends. Tagged with stainless steel chain tag.
Grade: 100
Chain Size: 3/8 inch
Working Load Limit: 15,200 lbs. @ 60° to load
Reach: 16 Feet
Benefits:
- Featuring Yoke's GrabEX integrated shortening hooks and master link
- No reduction in Working Load Limit when using shortening hooks
- Quenched and Tempered Alloy Steel
- At Least 25% greater WLL than Grade 80 products
- Manufactured in accordance with EN1677 and ASME B30.9
- All components individually proof load tested at 2 times the Working Load Limit
WARNING: Never Exceed Working Load Limit
Design Factor: 4:1 for components in accordance with PAS1061
Repair Parts
Non-structural replacement parts that can be user installed:
