5/8 inch Grade 10 DOSL-A x 8 feet
SLING G10 DOSL-A 5/8X8FT
GRADE100 2-LEG CHAIN SLING
SKU
90CH10-20DOSLA08
Weight
108 lb
Price
$1,196.00
Mfg. Part #
90CH10-20DOSLA08
Tech Specs

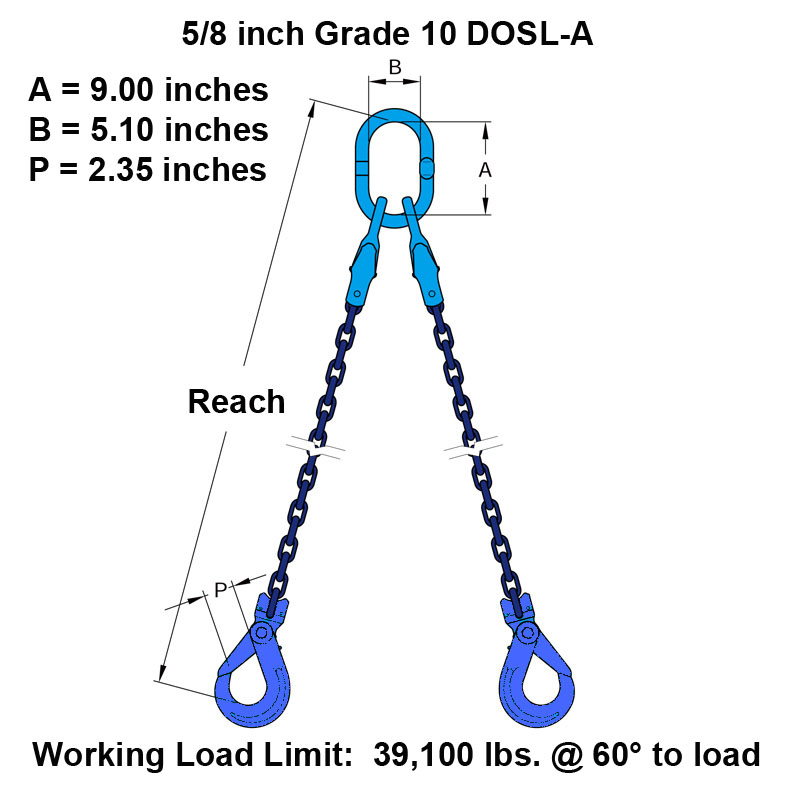

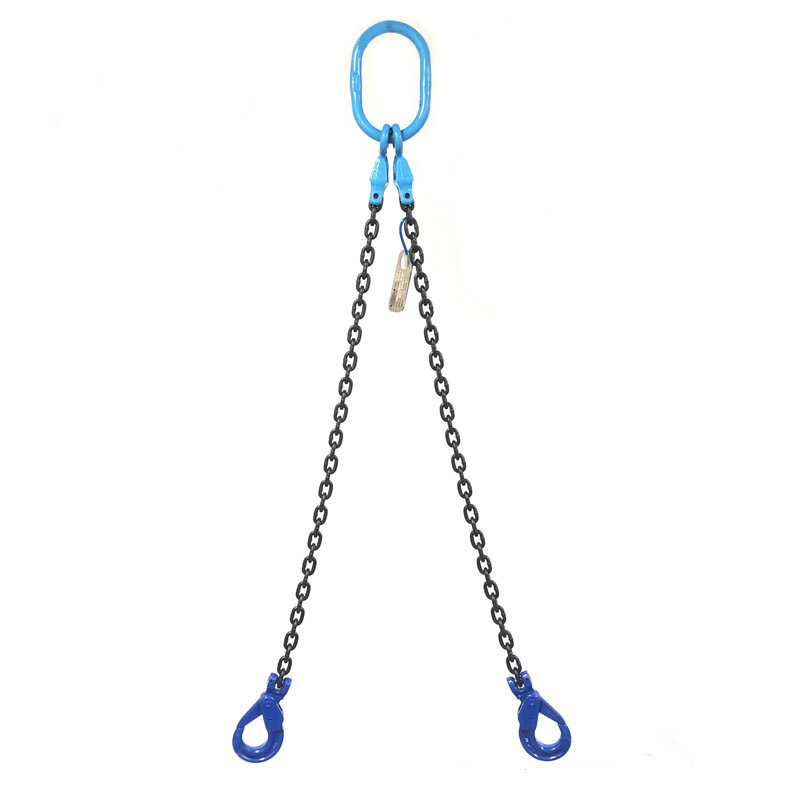

5/8 inch ProCraft Grade 100 DOSL-A x 8 feet

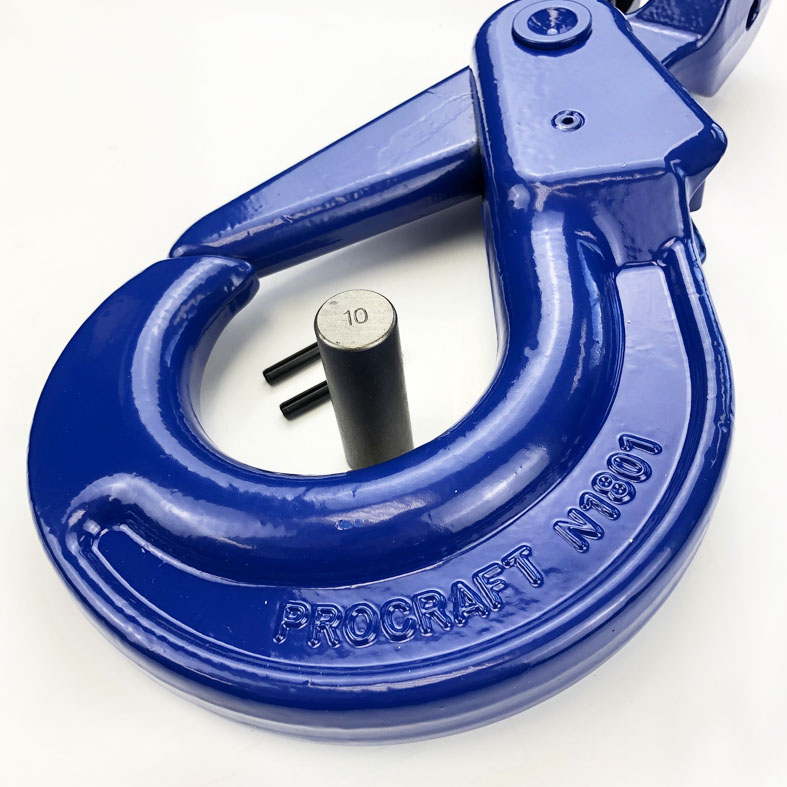

This 5/8 inch Grade 100 2 Leg Chain Sling comes with Yoke's GrabEX integrated shortening hooks on the master link. It has self locking sling hooks on bottom ends. Tagged with stainless steel chain tag.
Grade: 100
Chain Size: 5/8 inch
Working Load Limit: 39,100 lbs. @ 60° to load
Reach: 8 Feet
Benefits:

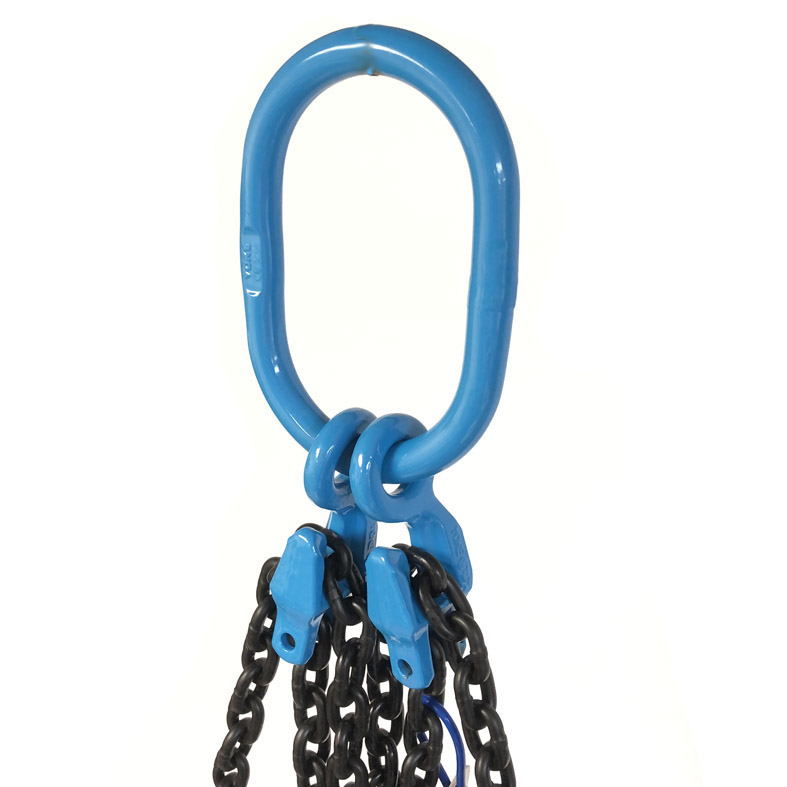

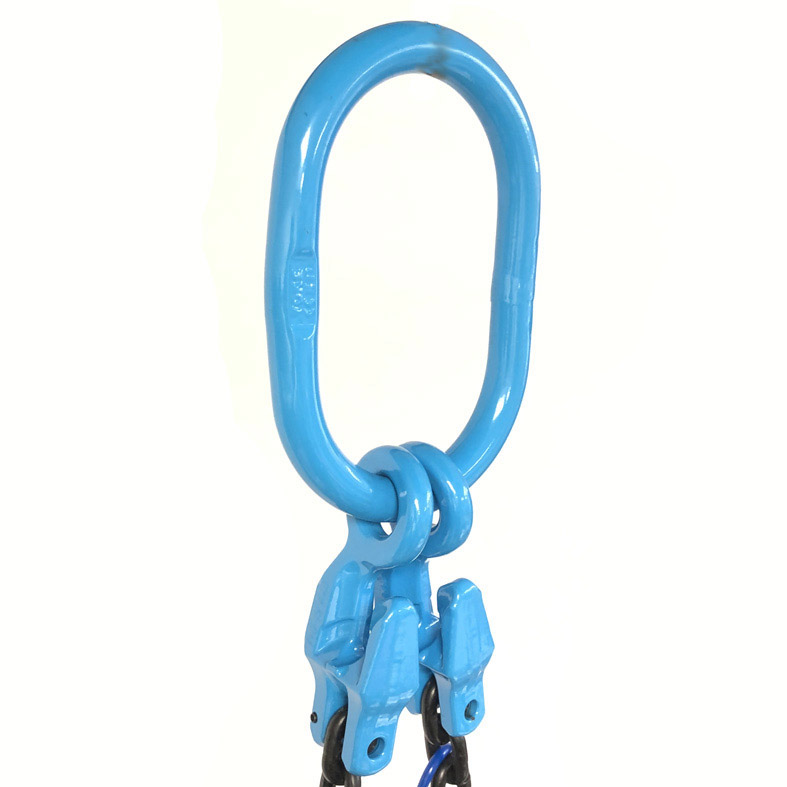

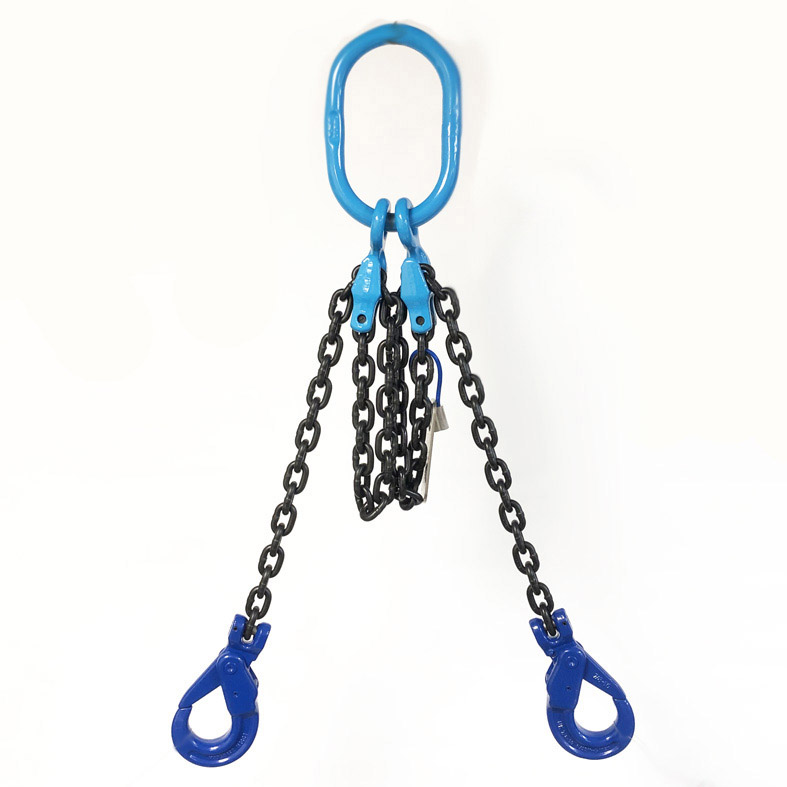

- Featuring Yoke's GrabEX integrated shortening hooks and master link
- No reduction in Working Load Limit when using shortening hooks
- Quenched and Tempered Alloy Steel
- At Least 25% greater WLL than Grade 80 products
- Manufactured in accordance with EN1677 and ASME B30.9
- All components individually proof load tested at 2 times the Working Load Limit
WARNING: Never Exceed Working Load Limit
Design Factor: 4:1 for components in accordance with PAS1061
Repair Parts
Non-structural replacement parts that can be user installed:
