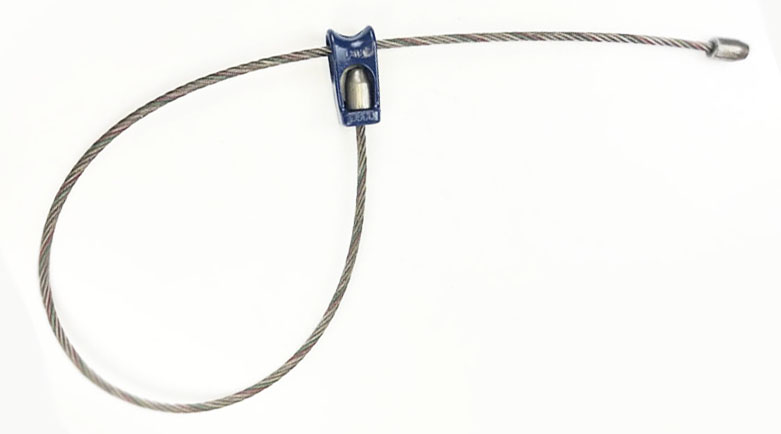

PowerStrand Knob & Knob Forestry Logging Chokers
|
Wire Diameter |
Description | Working Load Limit | Length | |||||||
| 6 FT | 8 FT | 10 FT | 12 FT | 14 FT | 16 FT | 18 FT | 20 FT | |||
|
3/8 inch |
Knob & Knob Midget Choker | 2,100 lbs. | $34.13 | $35.47 | $36.80 | $39.12 | $40.46 | $42.78 | $44.12 | $45.45 |
|
7/16 inch |
Knob & Knob Midget Choker | 2,800 lbs. | $33.93 | $35.81 | $37.69 | $40.56 | $42.43 | $45.30 | $47.18 | $49.06 |
|
1/2 inch |
Knob & Knob Midget Choker | 3,600 lbs. | $33.44 | $35.56 | $37.69 | $40.80 | $42.93 | $46.04 | $48.17 | $50.29 |
|
9/16 inch |
Knob & Knob Midget Choker | 4,500 lbs. | $34.77 | $37.34 | $39.91 | $43.47 | $46.04 | $49.60 | $52.17 | $54.74 |
|
5/8 inch |
Knob & Knob Dwarf Choker | 5,500 lbs. | $71.52 | $74.59 | $77.65 | $81.71 | $84.77 | $88.82 | $91.89 | $94.95 |
| 3/4 inch | Knob & Knob Bantam Choker | 7,900 lbs. | $97.50 | $102.19 | $106.89 | $112.57 | $117.27 | $122.95 | $127.65 | |
***Logging rigging is not to be used for overhead lifting. It is only intended for use in logging***

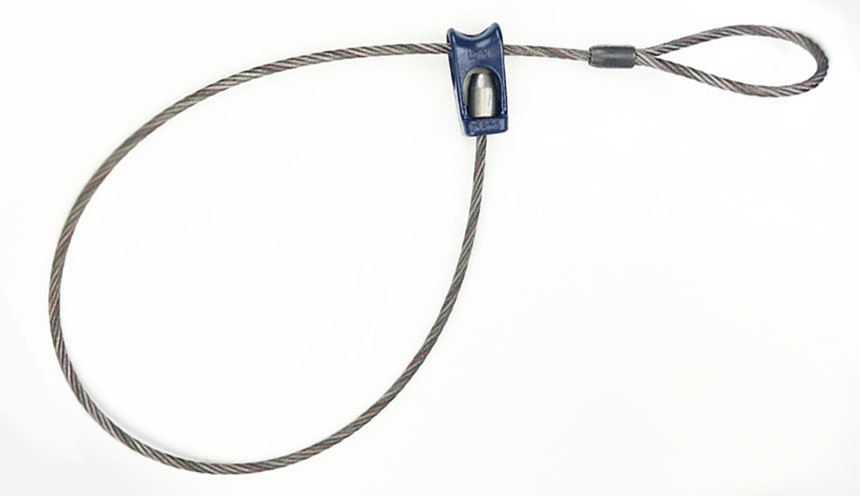

PowerStrand Knob & Eye Cat Logging Chokers
|
Wire Diameter |
Description | Working Load Limit | Length | |||||||||
| 6 FT | 8 FT | 10 FT | 12 FT | 14 FT | 16 FT | 18 FT | 20 FT | 50 FT | 100 FT | |||
|
3/8 inch |
Knob & Eye Cat Midget Choker | 2,100 lbs. | $32.96 | $34.29 | $35.63 | $37.95 | $39.28 | $41.61 | $42.94 | $44.28 | $66.27 | $99.64 |
|
7/16 inch |
Knob & Eye Cat Midget Choker | 2,800 lbs. | $35.14 | $37.02 | $38.90 | $41.77 | $43.65 | $46.51 | $48.39 | $50.27 | $80.42 | $127.38 |
|
1/2 inch |
Knob & Eye Cat Midget Choker | 3,600 lbs. | $36.54 | $38.67 | $40.79 | $43.90 | $46.03 | $49.14 | $51.27 | $53.40 | $87.25 | $140.39 |
|
9/16 inch |
Knob & Eye Cat Midget Choker | 4,500 lbs. | $39.89 | $42.46 | $45.03 | $48.59 | $51.16 | $54.72 | $57.29 | $59.86 | $100.39 | $164.65 |
|
5/8 inch |
Knob & Eye Cat Dwarf Choker | 5,500 lbs. | $65.42 | $68.48 | $71.55 | $75.60 | $78.67 | $82.72 | $85.78 | $88.85 | $136.79 | $215.39 |
| 3/4 inch | Knob & Eye Cat Bantam Choker | 7,900 lbs. | $93.42 | $98.12 | $102.81 | $108.50 | $113.19 | $118.88 | $123.57 | $128.27 | $201.67 | |
***Logging rigging is not to be used for overhead lifting. It is only intended for use in logging***
Working Load Limit is the maximum line tension in pounds. It is not based on the weight of the log, but the maximum pulling force the choker can be subjected to as log is being skidded. Factors such as terain slope, shock loading, and snags must be taken into account when selecting size.
