1/2x10ft Knob & Knob Midget Logging Choker
LOGGING CHOKER K&K 1/2X10FT
KNOB&KNOB MIDGET CHOKER
SKU
90CHK-16KK10M
Weight
7.5 lb
Price
$37.69
Brand
Mfg. Part #
90CHK-16KK10M
Tech Specs

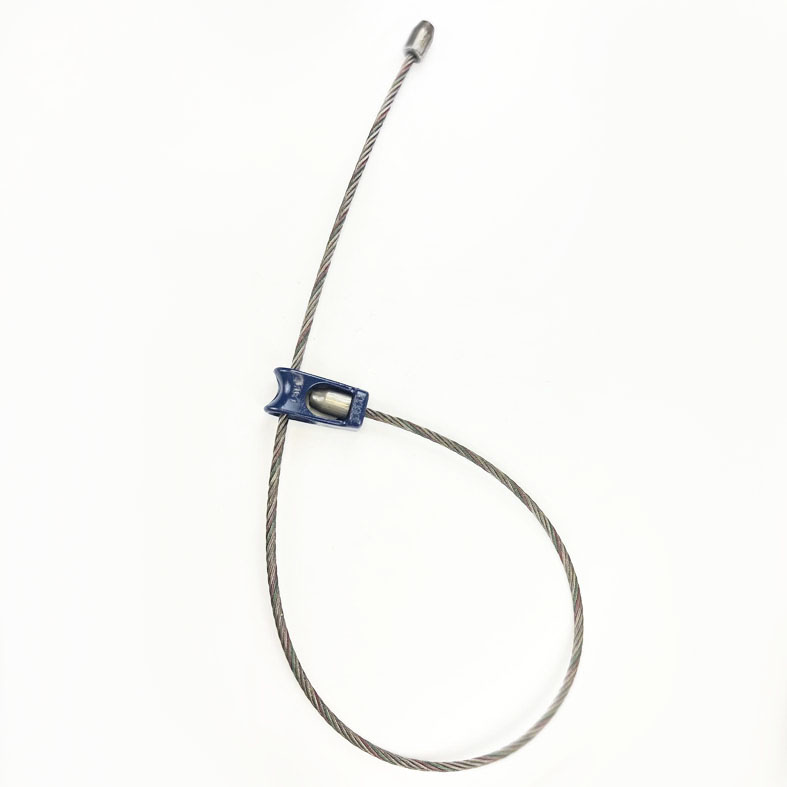

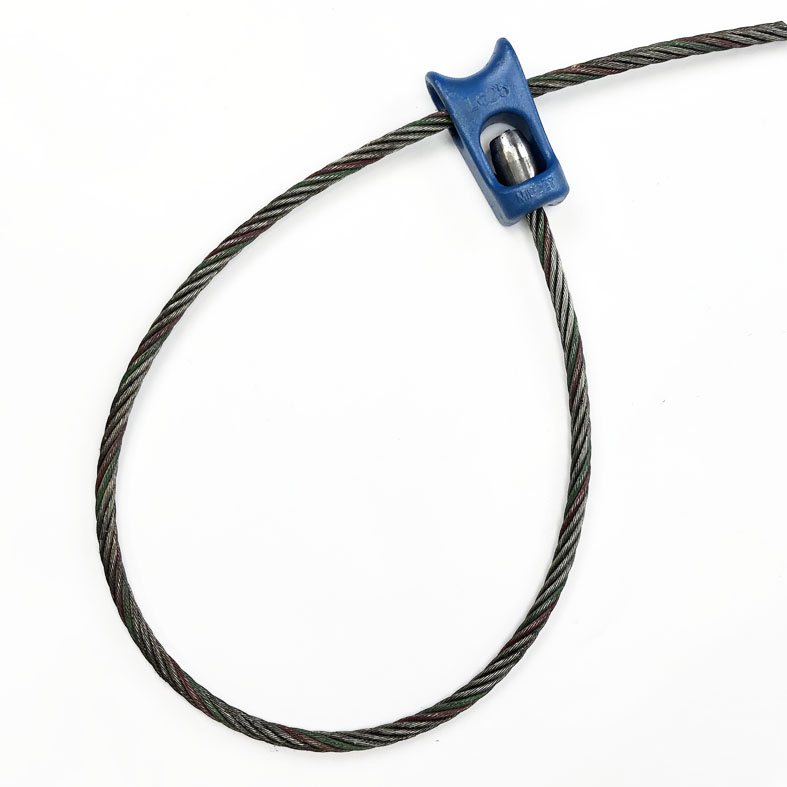

1/2 inch PowerStrand Knob & Knob Logging Choker x 10 FT
Commonly used in yarding operations because of their longer life due to knob reversibility. When used with line skidders, these knob & knob chokers are connected to the mainline with a L-980 Heavy Duty Midget Twitch Hook.
Capacity of 3,600 lbs. is maximum line tension in pounds. It is not based on the weight of the log, but the maximum pulling force the choker can be subjected to as log is being skidded. Factors such as terain slope, shock loading, and snags must be taken into account when selecting size.
All of our chokers are made in our plant using quality products.

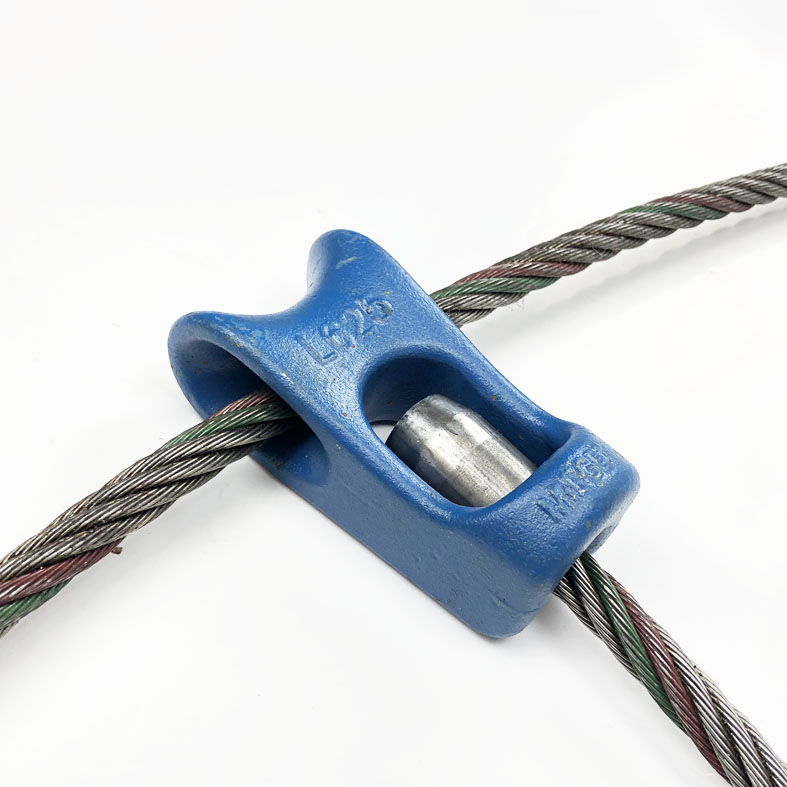

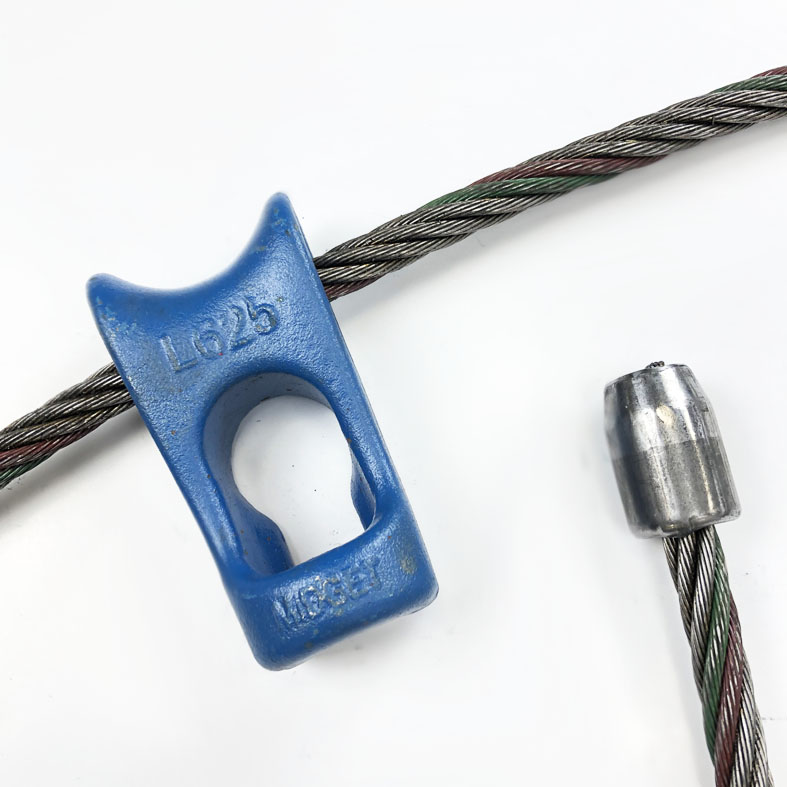

Skidding chokers feature a knob on each end with a L-625 Heavy Duty Midget Choker Hook in the middle.
Working load Limit: 3,600 lbs. (maximum line pull)
Knob and Choker Bell Sizing: Midget
Knob and Choker Bell Sizing: Midget
! ! ! NOT RATED FOR LIFTING ! ! !
***Logging rigging is not to be used for overhead lifting. It is only intended for use in logging***
Repair Parts
Associated parts that can be used with Midget Chokers:
30SP-L797 ... Silver Midget Quick Fix for 7/16-9/16 inch wire rope
