2-1/4 inch G3 Bright Stud Link Anchor Chain x 90 feet

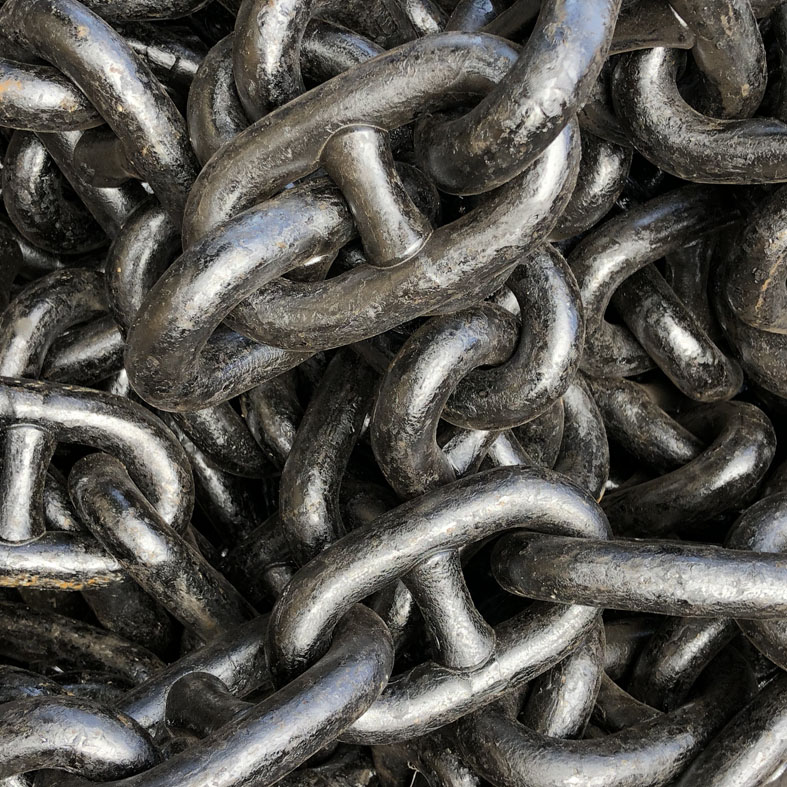

2-1/4 inch Stud Link Anchor Chain

Grade 3 Bright x 90 feet

Commonly used for Anchor Chain on ships, mooring or fender chains. These chains have a central stud for extra strength. We stock both Grade 2 and Grade 3 chains with the difference being extra heat treatment process after manufacturing for additional strength. Our chain is available in Black (tarred) and Galvanized.

2-1/4 inch Diamater

Grade 3 Black (tarred)

Overall length 13-1/2 inch (6 x diameter)

Overall width 8-1/8 inch (3.6 x diameter)

Proof load test 396,000 pounds

Breaking Strength 570,000 pounds

119 links per 90 feet shot (15 fathoms)
