CLAMP PROCRAFT UPC 1 TON
0 - 3/4" GRIP RANGE
Tech Specs
1 Ton ProCraft UPC Clamp
Working Load Limit: 1 Ton

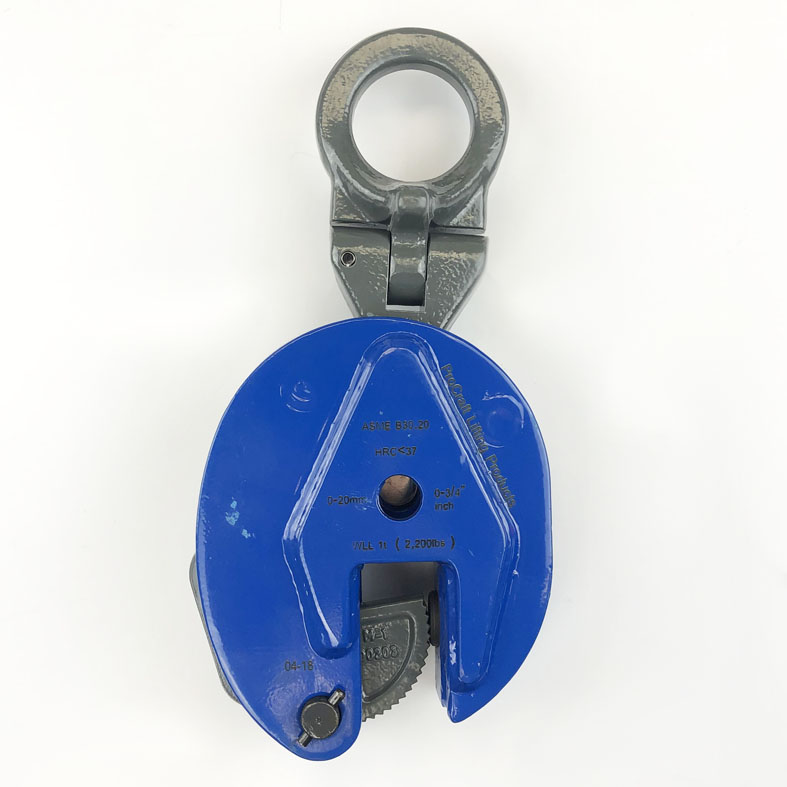

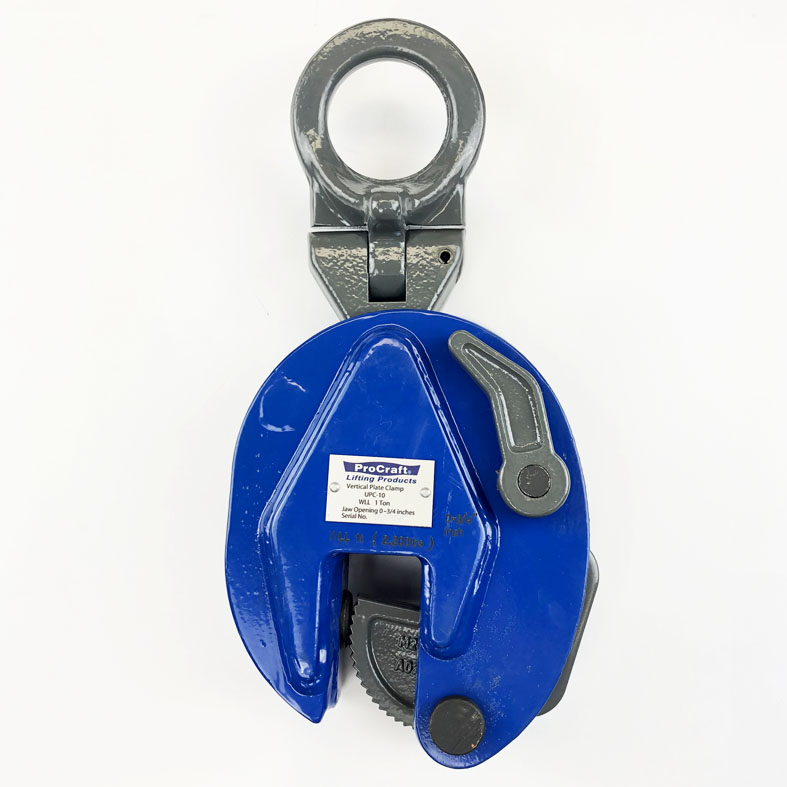

Plate lifting clamp fitted with universal lifting eye for safe transportation of steel plates in a vertical position.
- Equipped with a universal lifting eye movable in two directions.
- Heavy-duty steel construction for reliable service
- Locking mechanism to safeguard against the clamp disengaging
- For hoisting steel plates up to hardness 37 RC (345 HB). DO NOT use with stainless steel or Aluminum plates

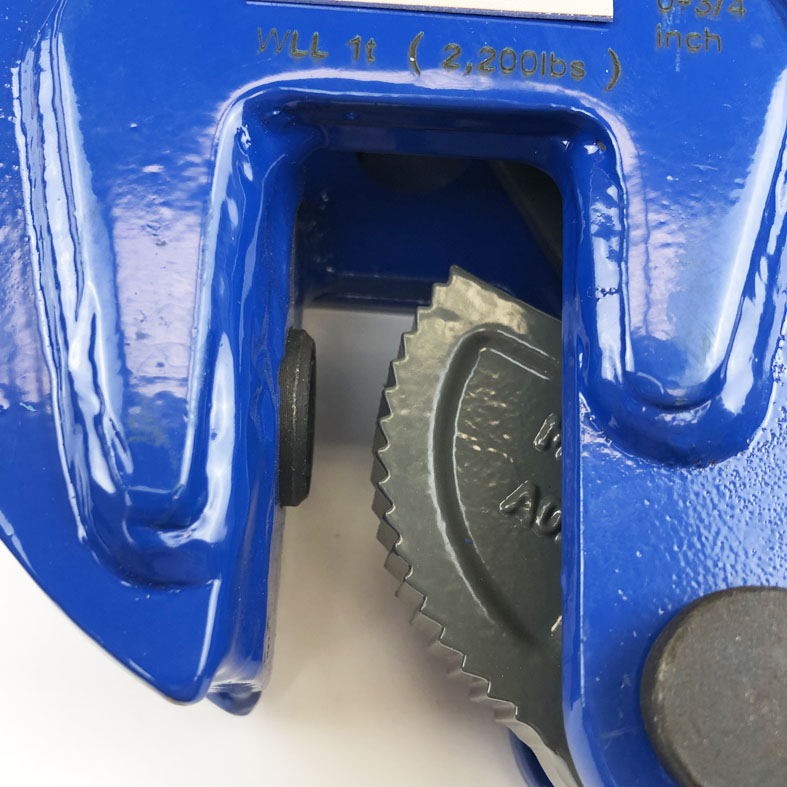

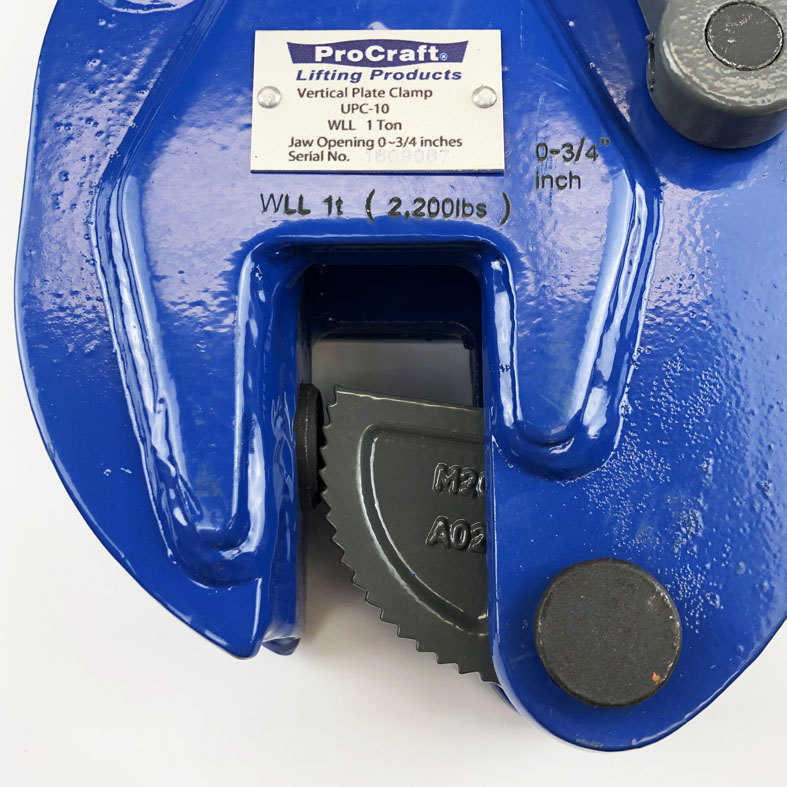

- Rated load capacity and size of jaw opening are clearly shown on lifting clamps.
- For lifting steel plate, rotating them 180° and transporting in a vertical position.
- Lift only one (1) clean and oil free plate at a time.

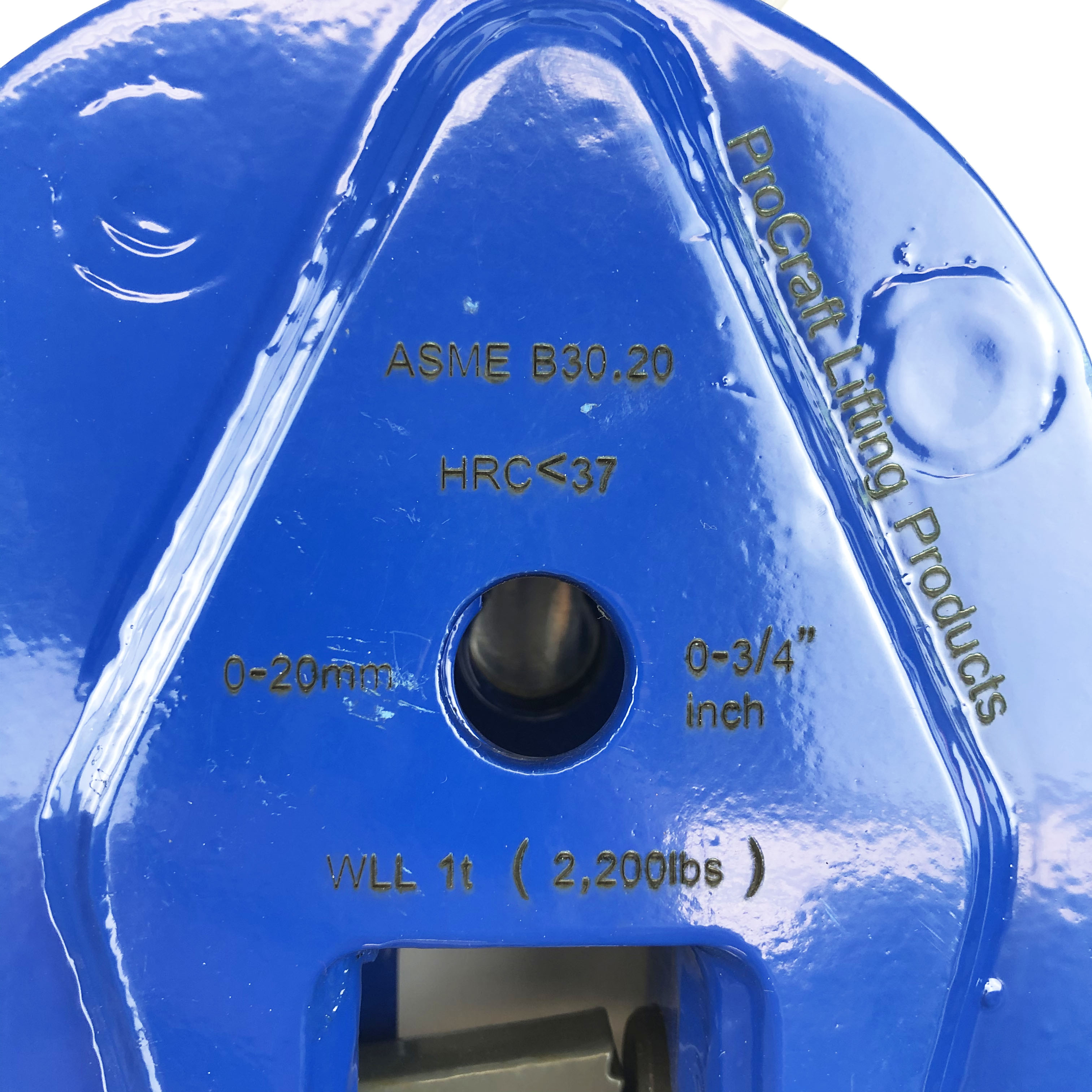

- Meets AMSE B30.20 specifications
- Each Plate Clamp is proof load tested at the factory
- Grip range 0 to 3/4 inch
ProCraft UPC Clamp dimensions: Click Here
ProCraft UPC Clamp operators manual: Click Here
! ! ! DO NOT EXCEED WORKING LOAD LIMIT ! ! !
Country of Origin
Made in China
