PCA-1100 Capstan Drum w/Rope Guide 85mm
PORTABLE WINCH OVERSIZED DRUM 85mm
3-3/8 INCH (85mm) CAPSTAN WITH ROPE GUIDE
FOR PCW5000
SKU
44WIN-PCA1100
Weight
2.2 lb
Price
$78.93
Brand
Mfg. Part #
PCA1100
Category
Tech Specs
DESCRIPTION
This capstan drum is designed to get the maximum pulling speed out of your winch. Easy to install, this drum will allow you to do jobs faster that require less pulling capacity.
Refer to each winch model to know the performance obtained with this drum.

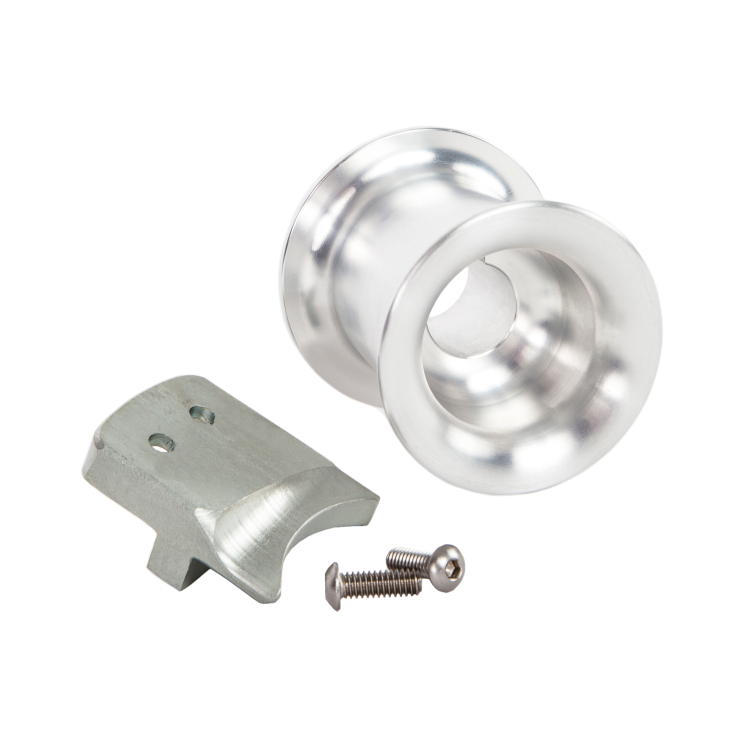

In the package:
1x Capstan drum 85 mm
1x Rope guide for capstan drum 85 mm
2x Button head cap screws 1/4-20 X 3/4 - Stainless steel
It fits on these winch models:
PCW5000
PCW5000-HS
PCW5000-AIR
PCH1000
PCT1800-50Hz-P-230V
PCT1800-60Hz-P-120V
SPECIFICATIONS
Material : Aluminum
WEIGHT & DIMENSIONS
Weight (imperial) : 2.09 lbs.
Length (imperial) : 6.69 inches
Width (imperial) : 4.33 inches
Height (imperial) : 4.33 inches
Diameter (imperial) : 3-3/8 inches
ADDITIONAL INFORMATION
Hole diameter: 25.4 mm (1 inch)
Country of Origin
Made in Canada
Compliance & Restrictions

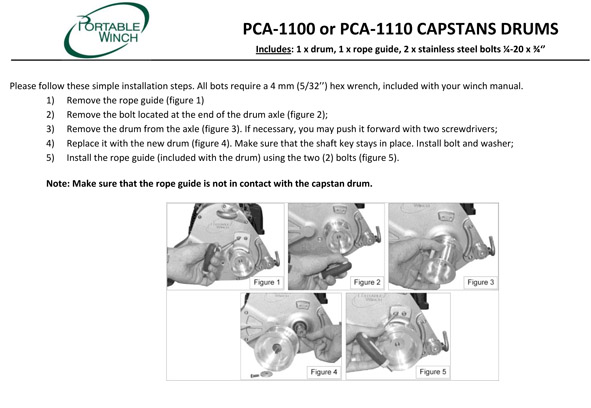

Please see Video for how to change out capstan drums:
