PCA-1272 2 Sheave Self Locking Pulley 3 inch
DOUBLE PULLEY BLOCK WITH CAM
2X3" ALUM SHEAVE W/ CAM BRAKE
SKU
44WIN-PCA1272
Weight
2.4 lb
Price
$299.00
Brand
Mfg. Part #
PCA1272
Category
Tech Specs

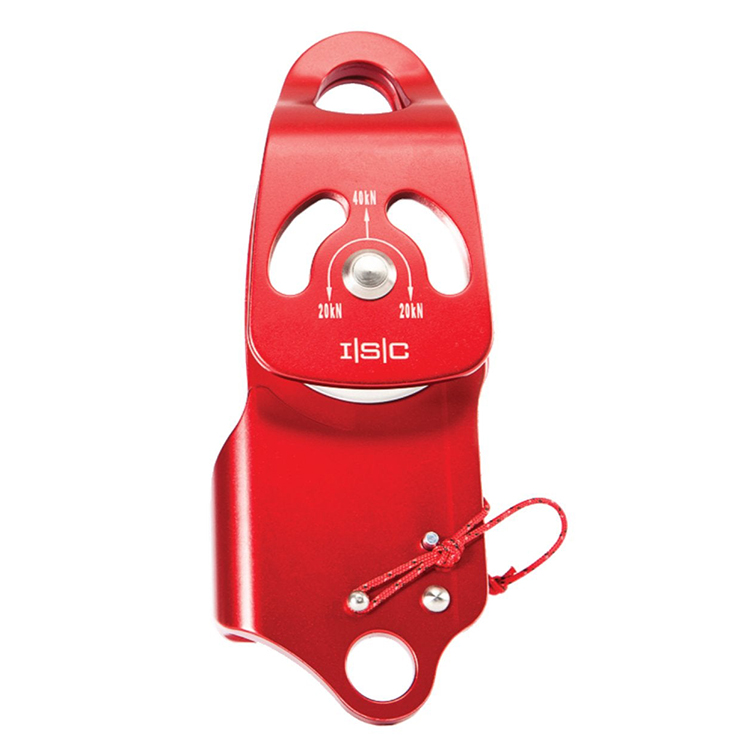

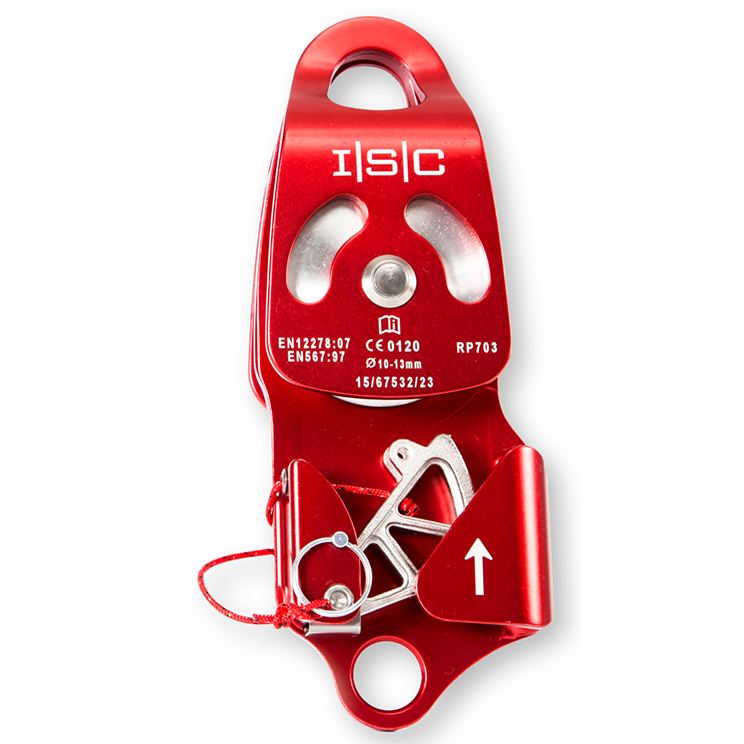

PCA-1272 Self-Locking Pulley
2 Sheave 3 inch Diameter
Description

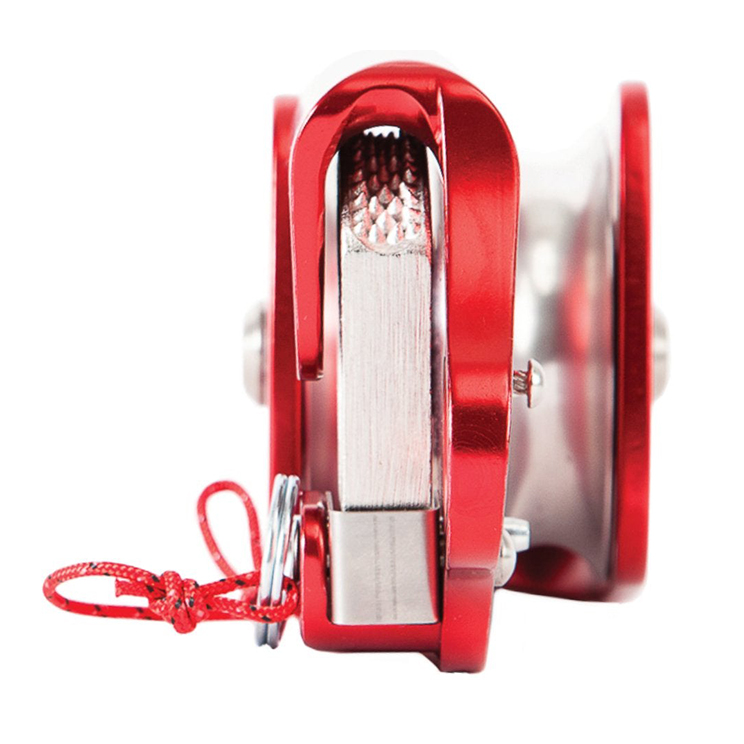

The double self-locking pulley was especially designed for rescue operations. However, it most certainly can be used in forestry, hunting our industrial applications as well. It features two sheaves and a brake cam system which allows the rope to go through freely in one direction and blocks it in the other direction. The spring-loaded cam can be disengaged by pulling a release cord. The 62 mm diameter aluminum sheaves are mounted on self-lubricating bushings and stainless steel axle. The swing sides and main plate are also made of anodized aluminum.

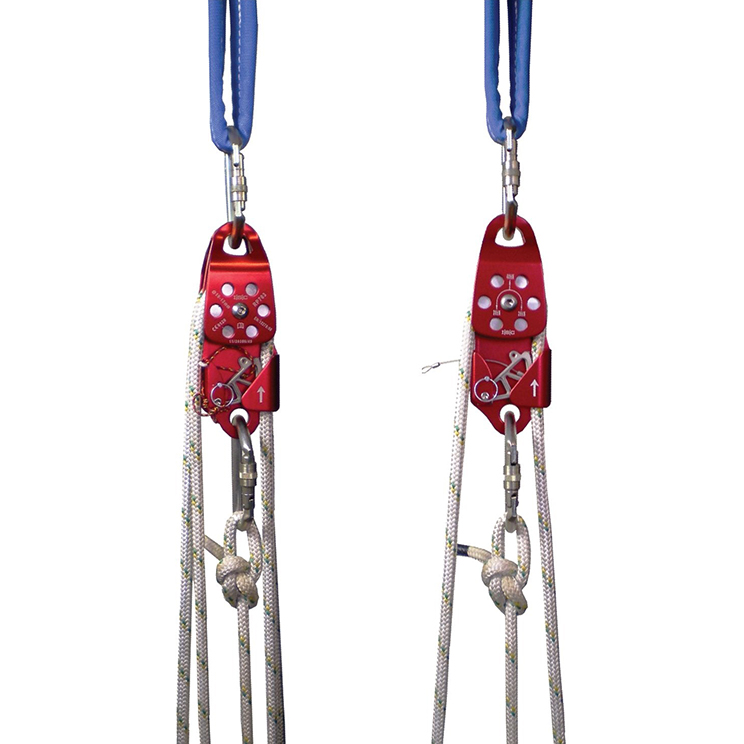

This pulley can also be used as a regular double pulley. You simply have to lock the brake cam in the open position using the provided pin.
Use one of our carabiners (PCA-1701 or PCA-1702) to attach it.
Ideal rope diameter: 1/2 inch
Specifications
Minimum Breaking Strength (imperial) : 40 kN (8992 lbs.)
Working Load Limit (imperial) : N/A
Certification : CE
Material : Aluminum
Weight & Deimensions
Weight (imperial) : 2.36 lbs.
Diameter (imperial) : 2-7/16 inches
Length (imperial) : 8-11/16 inches
Width (imperial) : 3-1/8 inches
Height (imperial) : 2-3/8 inches
Rope
Minimum diameter (imperial) : 1/4 inch
Maximum diameter (imperial) : 1/2 inch
Additional Information
Not designed for steel cable.
Brand: ISC
Please watch this video for pully selection:
Country of Origin
Made in Wales
Compliance & Restrictions
Please watch this video for pully selection:
Please watch this video the show how to increase pulling power using pulleys:
