PCA-1273 Stainless 2 Sheave Pulley 4 inch

SWING SIDE SNATCH BLOCK DOUBLE

2X4" ALUM SHEAVE W/ SS SIDES

SKU

44WIN-PCA1273

Weight

4.48 lb

Price

$140.00

Brand

Portable Winch Company

Mfg. Part #

PCA1273

Tech Specs

PCA-1273 Stainless 2 Sheave Pulley 4 inch

Description

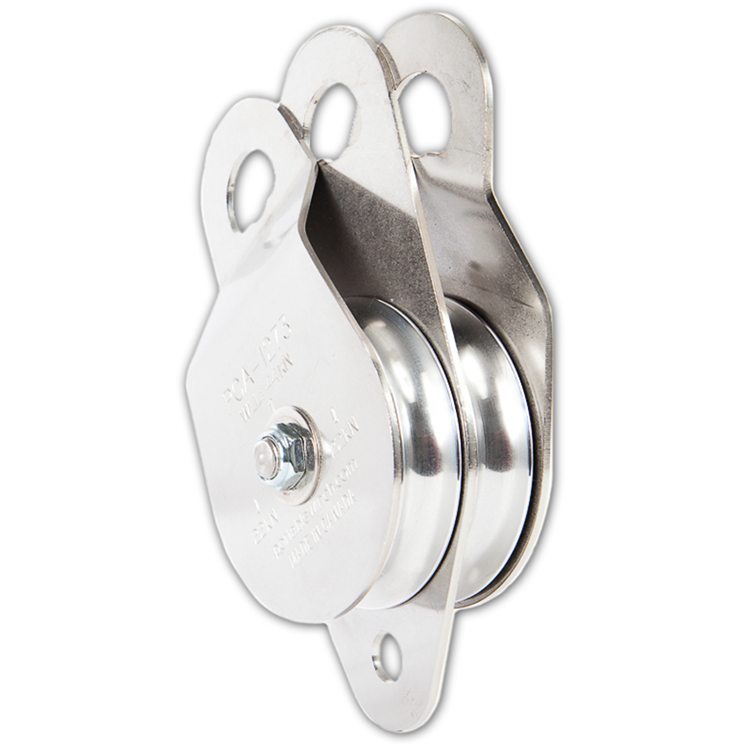

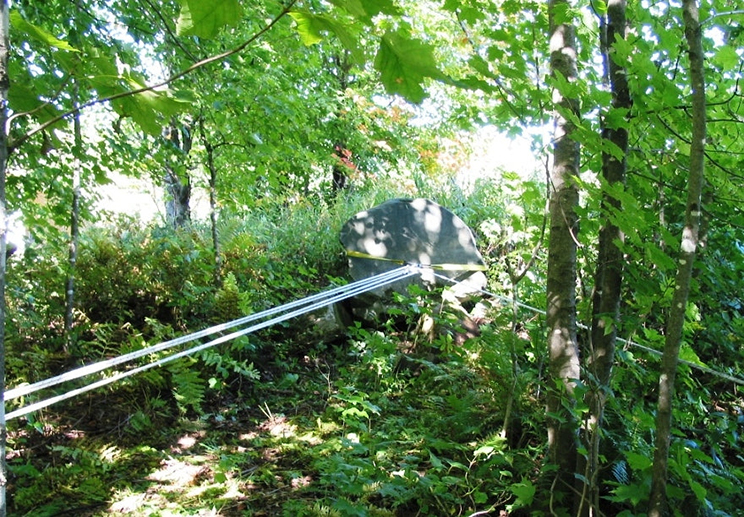

This stainless steel swing side snatch block features two lightweight 4 inch diameter deep groove aluminum sheaves, with stainless steel plates that swing open to install rope. Sintered bronze bushings on stainless steel shaft provides 98% efficiency. Using one double pulley (positioned at the load) with a single pulley, you can quadruple the pulling power of the winches. With two double pulleys, an amazing 5 tons of force can be exerted on a load (using the PCW5000).

The middle plate has a hole at the bottom, allowing you to attach the end of the rope with a carabiner when necessary.

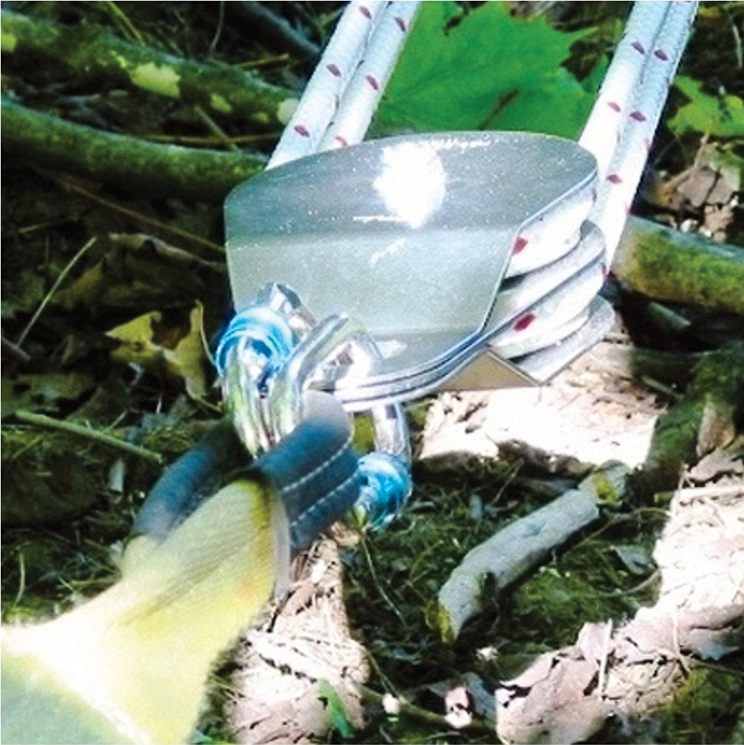

Use the 70 kN steel locking carabiner (PCA-1701) to anchor the snatch block to a polyester sling.

Ideal rope diameter: 1/2 inch.

Specifications

Minimum Breaking Strength (imperial) : 135kN (30,349 lbs)

Working Load Limit (imperial) : 44 kN (9900 lbs.)

Material : Sides: Stainless steel. Sheaves: Aluminum

Weight & Dimensions

Weight (imperial) : 4.48 lbs.

Diameter (imperial) : 4 inch

Length (imperial) : 10.63 inches

Width (imperial) : 5.51 inches

Height (imperial) : 5.51 inches

Rope

Minimum diameter (imperial) : 1/4 inch

Maximum diameter (imperial) : 1/2 inch

Additional Information

Not designed for steel cable.

The NEWTON is the International System unit for force; it is equal to the amount of net force required to accelerate a mass of one kilogram at a rate of one meter per second squared. --- The WORKING LOAD LIMIT (WLL) is the maximum load which should not be exceeded under any condition. --- The MINIMUM BREAKING STRENGTH (MBS) is observed during a destructive test. You should divide it by an appropriate safety factor.

Please watch this video for pully selection:
