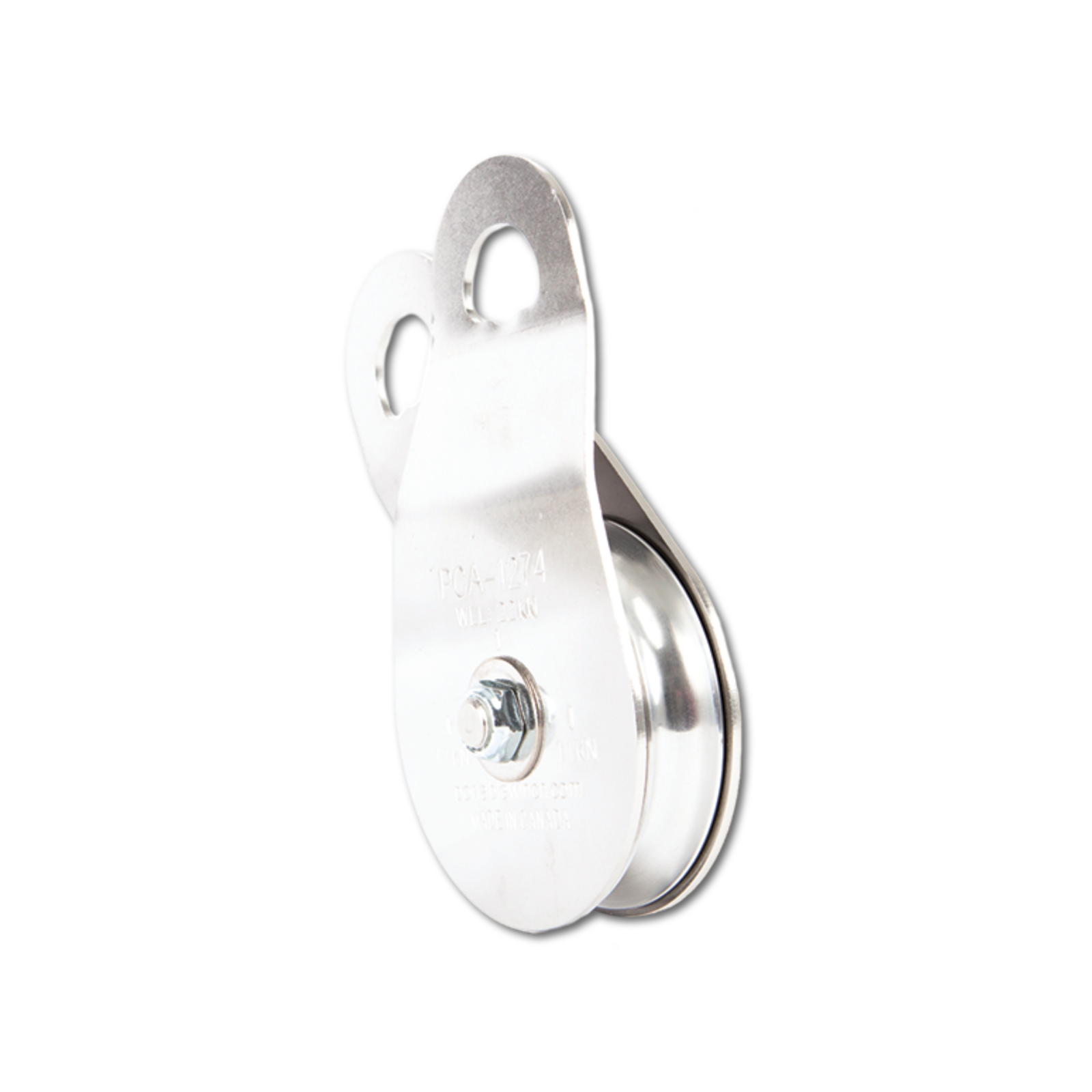

PCA-1274 4 inch Single Sheave Pulley
SWING SIDE SNATCH BLOCK 4 INCH
ALUMINUM SHEAVE W/ STAINLESS SIDES
SKU
44WIN-PCA1274
Weight
2.75 lb
Price
$75.00
Brand
Mfg. Part #
PCA1274
Category
Tech Specs
PCA-1274 Portable WInch
4 inch Single Sheave Pulley
Description
This stainless steel swing side snatch block features a lightweight 4 inch diameter deep groove aluminum sheave, with stainless steel plates that swing open to install the rope. Sintered bronze bushing on stainless steel shaft provides 98% efficiency. Particularly useful for use when doubling the line, the rope cannot accidentally come out of the block. Also very useful to redirect a load or to pull upward on a hill. Use the steel locking carabiners to anchor to a polyester sling.
Ideal rope diameter: 12mm (1/2 inch)
Specifications
Minimum Breaking Strength (imperial) : N/A
Working Load Limit (imperial) : 22 kN (4950 lbs.)
Material : Sides: Stainless steel. Sheave: Aluminum
Weight & Dimensions
Weight (imperial) : 2.73 lbs.
Diameter (imperial) : 4 inches
Length (imperial) : 10.63 inches
Width (imperial) : 5.51 inches
Height (imperial) : 5.51 inches
Rope
Minimum diameter (imperial) : 6mm (1/4 inches)
Maximum diameter (imperial) : 12mm (1/2 inches)
Additional Information
Not designed for steel cable.
Please watch this video for pulley selection:
Country of Origin
Made in Canada
Compliance & Restrictions
Please watch this video for pulley selection:
Please watch this video the show how to increase pulling power using pulleys:
