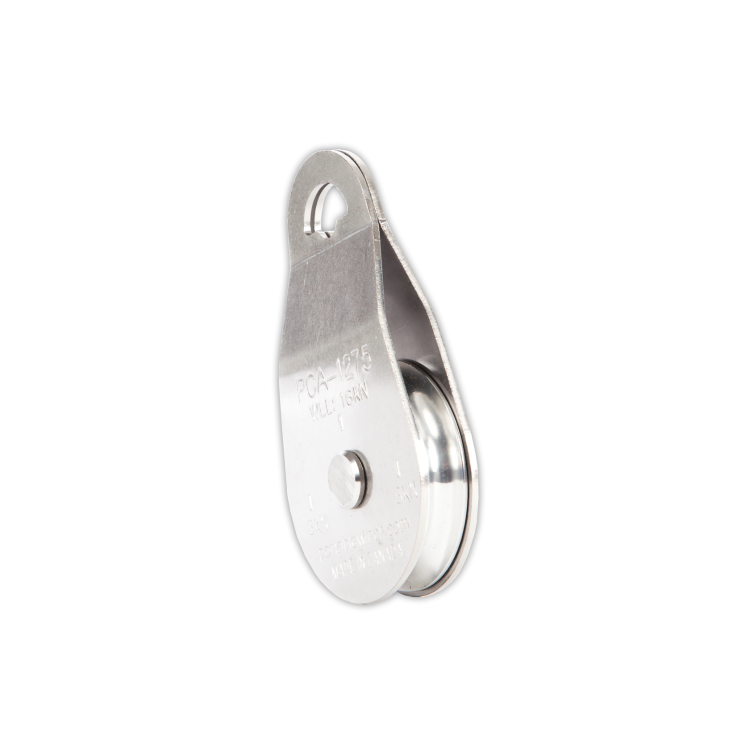

PCA-1275 3 inch Single Sheave Pulley
SWING SIDE SNATCH BLOCK 3 INCH
ALUMINUM SHEAVE W/ STAINLESS SIDES
SKU
44WIN-PCA1275
Weight
1.52 lb
Price
$50.00
Brand
Mfg. Part #
PCA1275
Category
Tech Specs
PCA-1275 Portable WInch
3 inch Single Sheave Pulley
Description
This stainless steel swing side snatch block features a lightweight 76 mm diameter deep groove aluminum sheave, with stainless steel plates that swing open to install the rope. Sintered bronze bushing on stainless steel shaft provides 98% efficiency. Particularly useful for use when doubling the line, the rope cannot accidentally come out of the block. Also very useful to redirect a load or to pull upward on a hill. Use the steel locking carabiners to anchor to a polyester sling. Smaller and lighter than the PCA-1274 pulley.
Ideal rope diameter: 10 mm (3/8 inch)
Specifications
Minimum Breaking Strength (imperial) : N/A
Working Load Limit (imperial) : 16 kN (3600 lbs.)
Material : Sides: Stainless steel. Sheave: Aluminum
Weight & Dimensions
Weight (imperial) : 1.52 lbs.
Diameter (imperial) : 3 inches
Length (imperial) : 6.69 inches
Width (imperial) : 4.33 inches
Height (imperial) : 4.33 inches
Rope
Minimum diameter (imperial) : 6mm (1/4 inch)
Maximum diameter (imperial) : 10mm (3/8 inch)
Additional Information
Not designed for steel cable.
Please watch this video for pulley selection:
Country of Origin
Made in Canada
Compliance & Restrictions
Please watch this video for pulley selection:
Please watch this video the show how to increase pulling power using pulleys:
