PCA-1282 Grab Hook with 3 links Chain & Latch 5/16"
PORTABLE WINCH GRAB HOOK 5/16
C/W 3 LINKS & LOCKING LATCH
SKU
44WIN-PCA1282
Weight
1.4 lb
Price
$15.00
Brand
Mfg. Part #
PCA1282
Category
Tech Specs

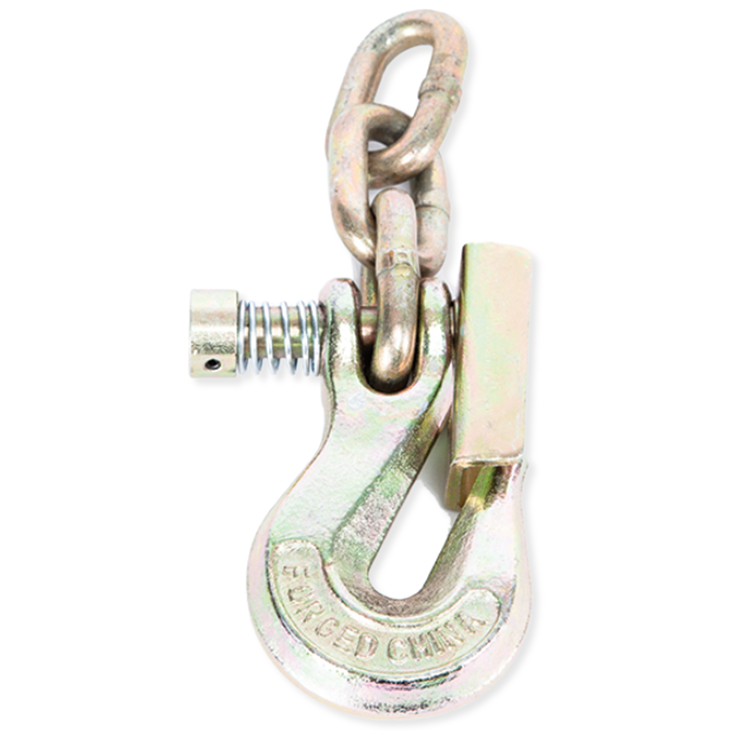

PCA-1282 Grab Hook
with 3 links 5/16 inch Chain & Latch
Please watch below videos for hook usage:
DESCRIPTION
This is a simple yet practical hook. Its unique latch prevents the chain from slipping out of the hook when there is no tension on the rope. The 7.9 mm (5/16 inch) opening of the grab hook will accept either 6 mm (1/4 inch) or 7.9 mm (5/16 inch) chain. It is equipped with 3 links of 6 mm (1/4") chain and can be attached to any 13 mm (1/2 inch) rope or smaller. Attach the hook to the rope using the bowline knot. The bowline knot provides a secure connection, and can be untied if required.
Its working load limit (WLL) is 20 kN (2039 kg - 4496 lbs.).
SPECIFICATIONS
Material : Zinc plated steel
WEIGHT & DIMENSIONS
Weight (imperial) : 1.39 lbs.
Length (imperial) : 6.69 inches
Width (imperial) : 4.33 inches
Height (imperial) : 4.33 inches
Diameter (imperial) : 1/4 inches
Other : WLL: 20 kN (2039 kg - 4496 lbs.)
ADDITIONAL INFORMATION

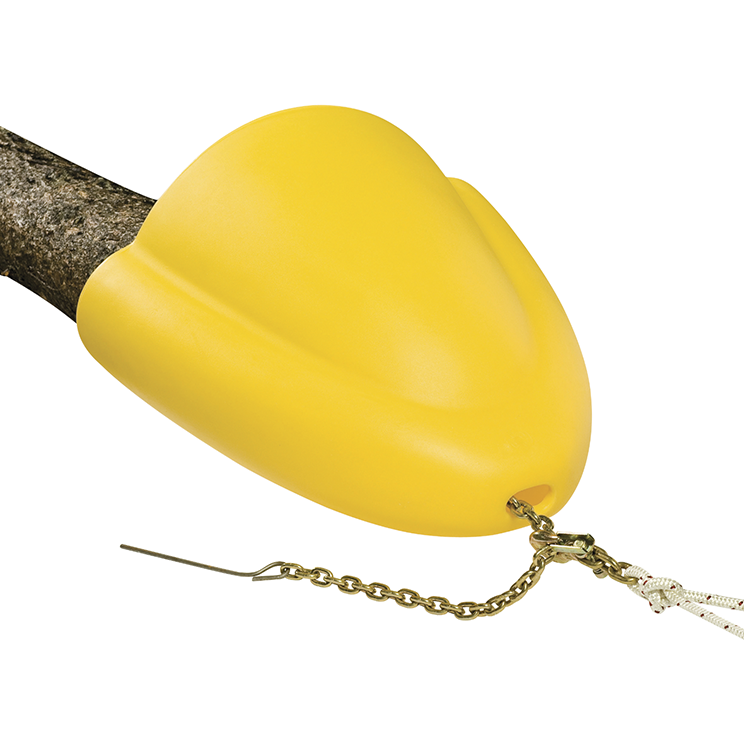

A great accessory to use in combination with the skidding cone (PCA-1290), the pulling plate (PCA-1310), the choker chain (PCA-1295) or HPPE rope choker (PCA-1372).
Country of Origin
Made in China
