MISC WINCH GAS CAPSTAN 2200 LBS.

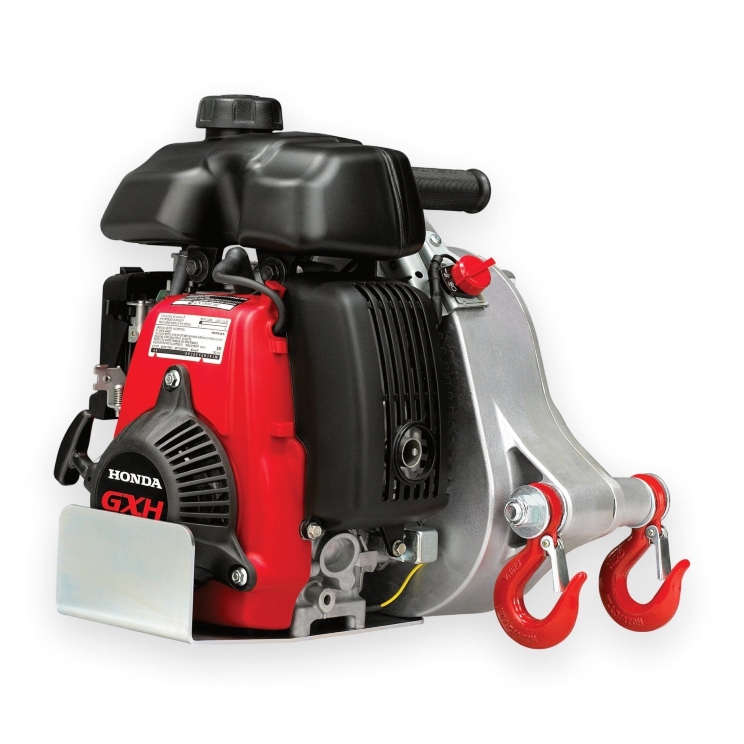

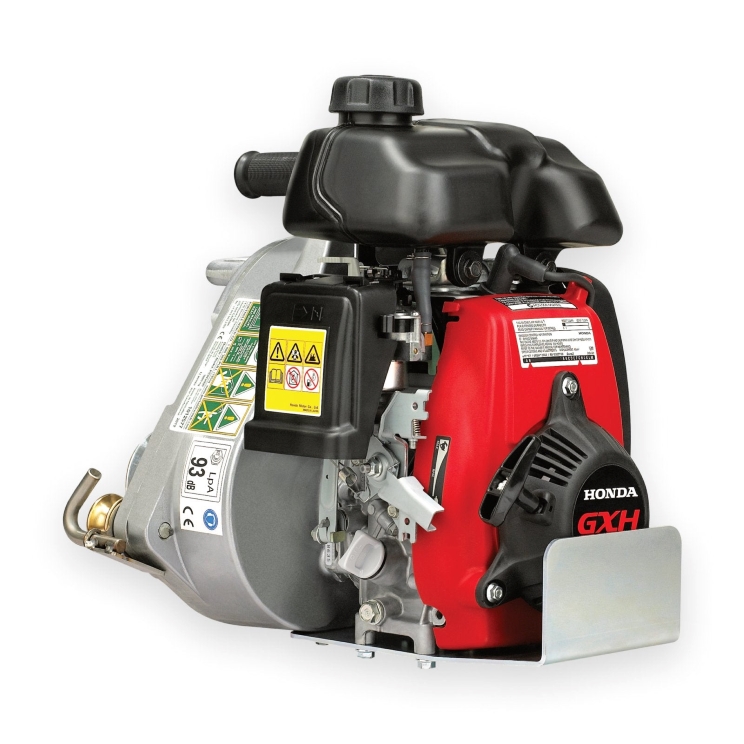

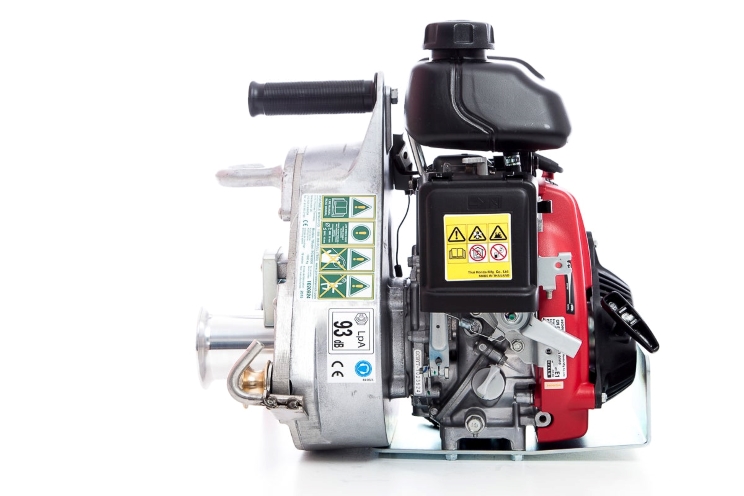

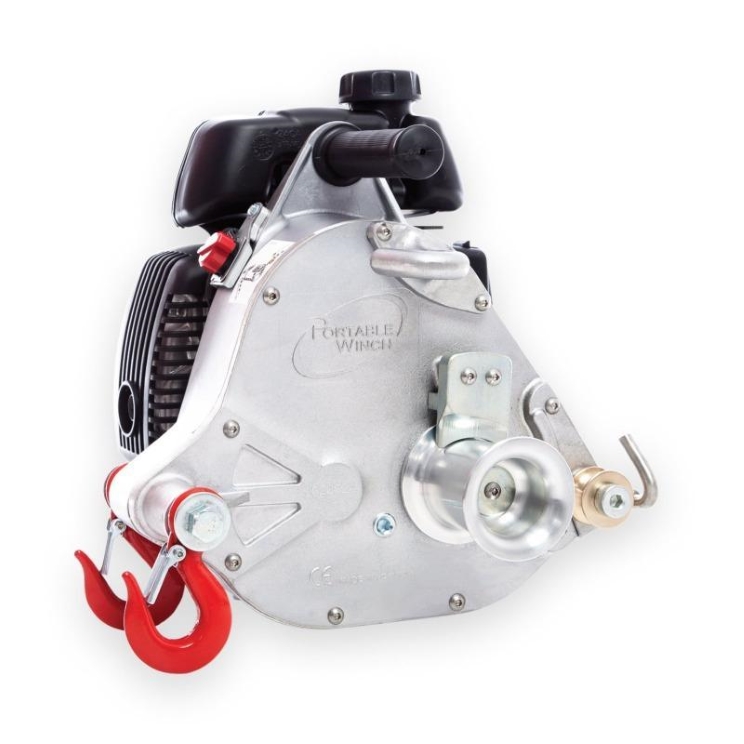

PORTABLE GAS POWERED WINCH
Tech Specs
Our first and still most popular model!
Perfect for foresters!
Powered by Honda’s 4-stroke GXH-50cc engine, it’s the forester’s favorite. Weighing only 16 kg, it provides 1000 kgs. of pulling power. In addition, you benefit from two speed options with interchangeable capstan drums.
If you go for POWER, you will use the included 57 mm drum pulling at 12 meters per minute. If your application requires more SPEED, you will select the optional 85 mm drum* pulling at 18 meters per minute.
Use the PCW5000 Portable Capstan Winch with any length of 1/2 inch low stretch double braided polyester rope!
It is so easy to use! Tie the rope to the object to be moved and wound it three (or four) times around the capstan drum. Turn the engine on, and the friction created by pulling on the rope pulls the object towards the winch.
This winch will be your ally for many years to come.
*Drum sold separately (PCA-1100)

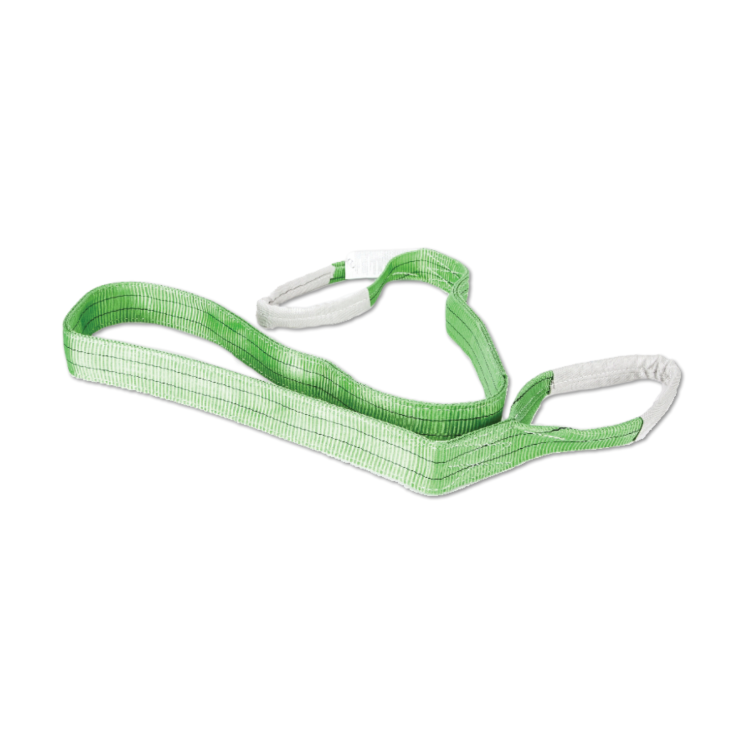

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch.

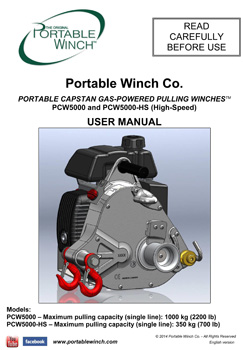

User Manual: Click Here
Country of Origin
Made in Canada
Repair Parts

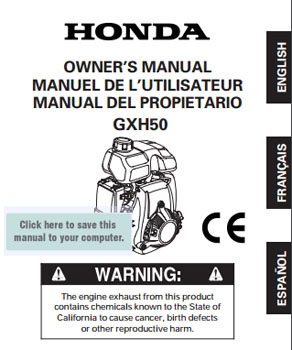

PCW5000 User Manual GXH50 Honda Owner's Manual
