1-1/4 inch Van Beest Bolt Type Anchor Shackles

WLL 12 Ton Van Beest G4163

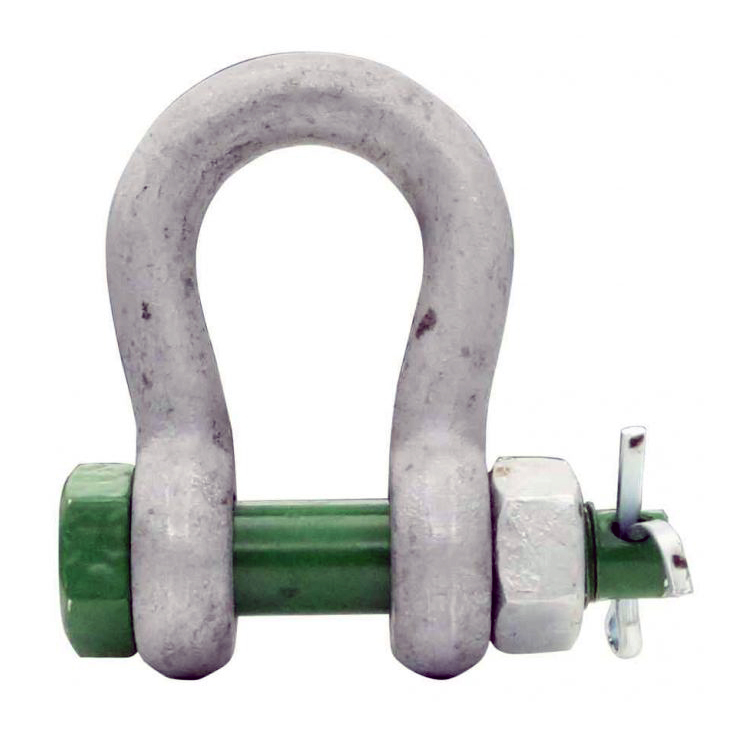

The Green Pin® Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin® Bow Shackle BN. Of course, the Green Pin® Bow Shackle BN conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Bow Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 0.5 up to 85 ton.

Productcode:   G-4163
Material:          bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor:   MBL equals 6 x WLL
Finish:             hot dipped galvanized
Temp. range:   -40°C up to +200°C
Certification:    2.1, 2.2, 3.1, MTCa, DNV 2.7-1a, DNV 2.7-1b, DNVGL-ST-0378, CE, ABS PDA, ABS MA
Standard:        EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A. From 2 t and upward these shackles comply with ASME B30.26

Dimension Sheet Click Here
