SHKL ANC/SAF LR GV G4163 2-1/4"
42-1/2 TON VB BOLT TYPE SHACKLE
Tech Specs
WLL 42-1/2 Ton Van Beest G4163

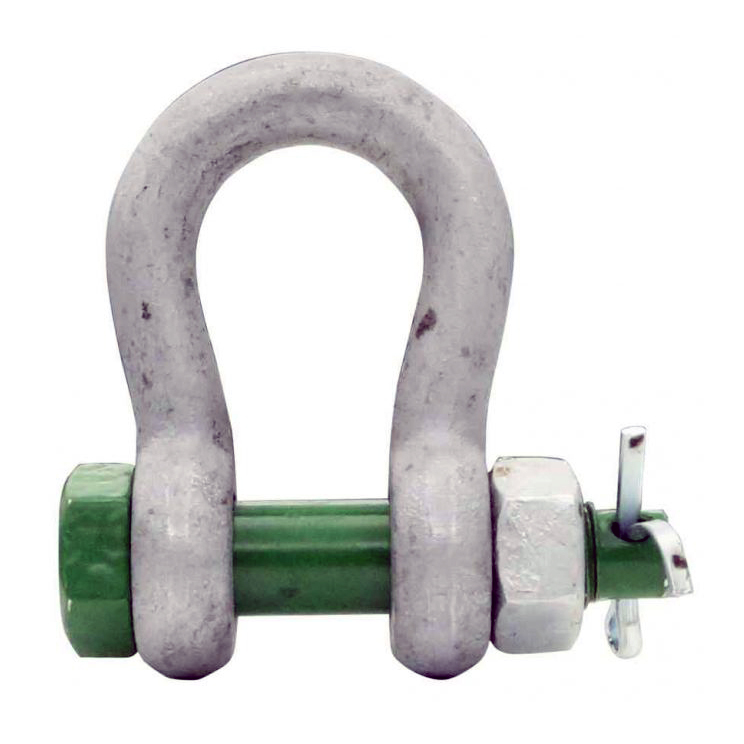

The Green Pin® Dee Shackle BN is a dee shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Its long-term durability is assured due to galvanization. Particularly important for use offshore, the shackle conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Dee Shackle BN is suitable for one-leg lifting systems only and is available in a range with a working load limit from 2 up to 85 ton.
Productcode: G-4163
Material: bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor: MBL equals 6 x WLL
Finish: hot dipped galvanized
Temp. range: -40°C up to +200°C
Certification: 2.1, 2.2, 3.1, MTCa, DNV 2.7-1a, DNV 2.7-1b, DNVGL-ST-0378, CE, ABS PDA, ABS MA
Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A. From 2 t and upward these shackles comply with ASME B30.26
Dimension Sheet Click Here
Country of Origin
Made in the Netherlands
