5/8 inch Van Beest Screw Pin Anchor Shackles

WLL 3-1/4 Ton Van Beest G4161

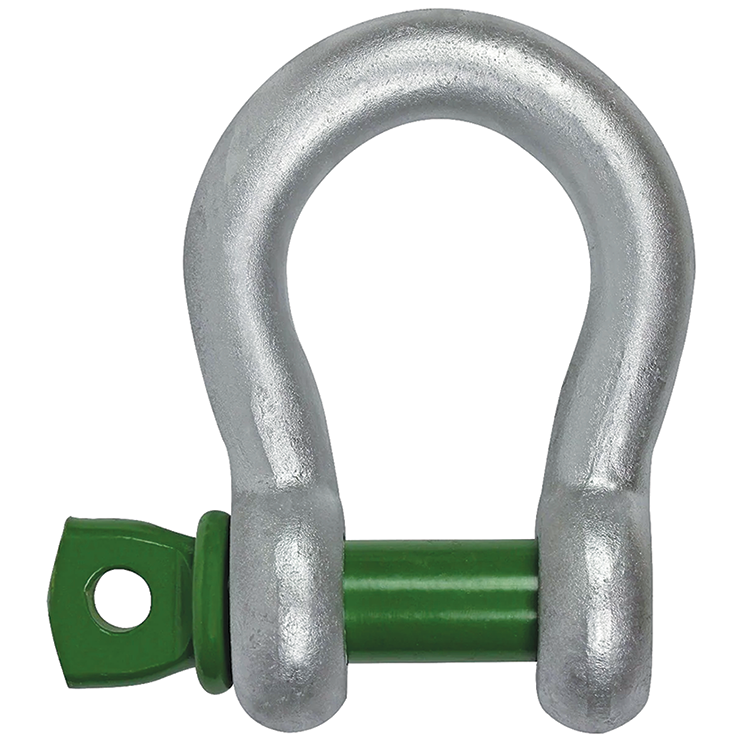

The Green Pin® Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. The Green Pin® Bow Shackle SC can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured. The shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. Particularly important for use offshore, the Green Pin® Bow Shackle SC conforms to a wide range of certifications from class societies such as DNV GL. The shackle is available in a range with a working load limit from 0.33 up to 55 ton.

Productcode:   G-4161
Material:          bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor:   MBL equals 6 x WLL
Finish:             hot dipped galvanized
Temp. range:   -40°C up to +200°C
Certification:    2.1, 2.2, 3.1, MTCa, DNV 2.7-1a, DNV 2.7-1b, DNVGL-ST-0378, CE, ABS PDA, ABS MA
Standard:        EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 2, Grade A. From 2 t and upward these shackles comply with ASME B30.26
