1X2-1/2 inch Gray Shoulder Machinery Eye Bolts

1 inch Gray Shoulder Pattern Machinery Eyebolts

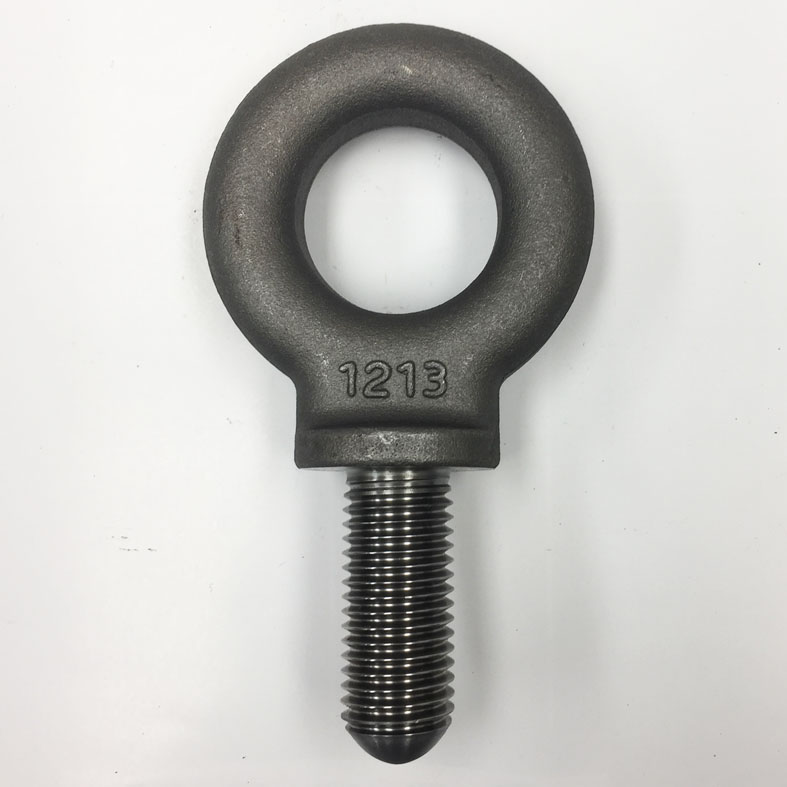

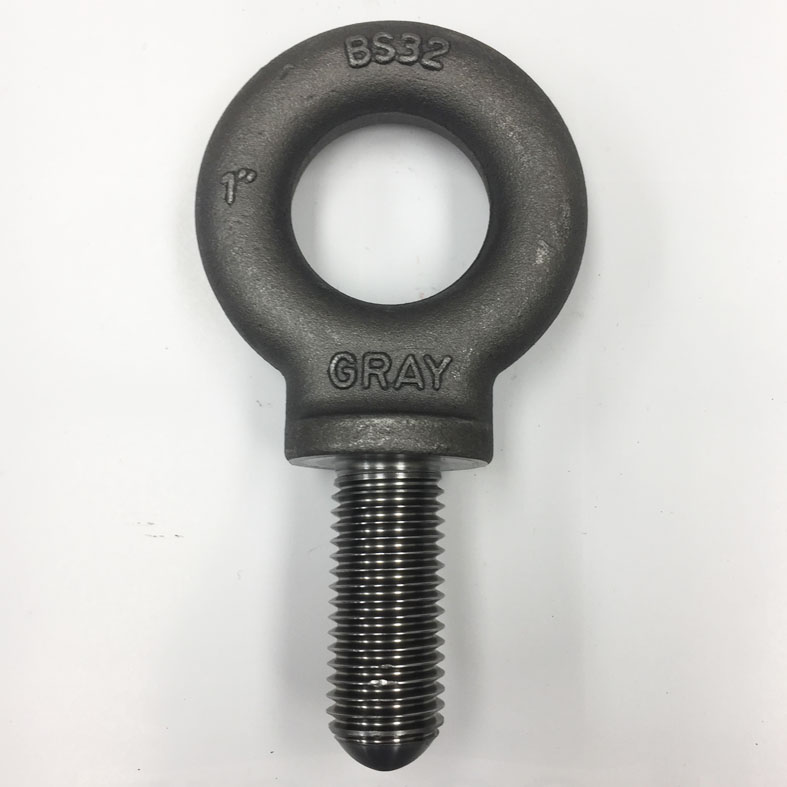

Gray shoulder pattern eyebolts forged from bar quality fine grain C1030 / C1035 steel bar, and proof load tested in accordance with ASTM A489 and Federal Specifications ANSI B18.15. Shoulder style eyebolt 1/4" through 1" military style collar - MS51937 specifications. These eyebolts are undercut to ensure eyebolt will thread tight to shoulder.

Thread - 1 x 8 UNC 2A

Shank length under the shoulder - 2-1/2 inch

Working load limit - 13,300 pounds

Specifications and dimensions: Click Here
