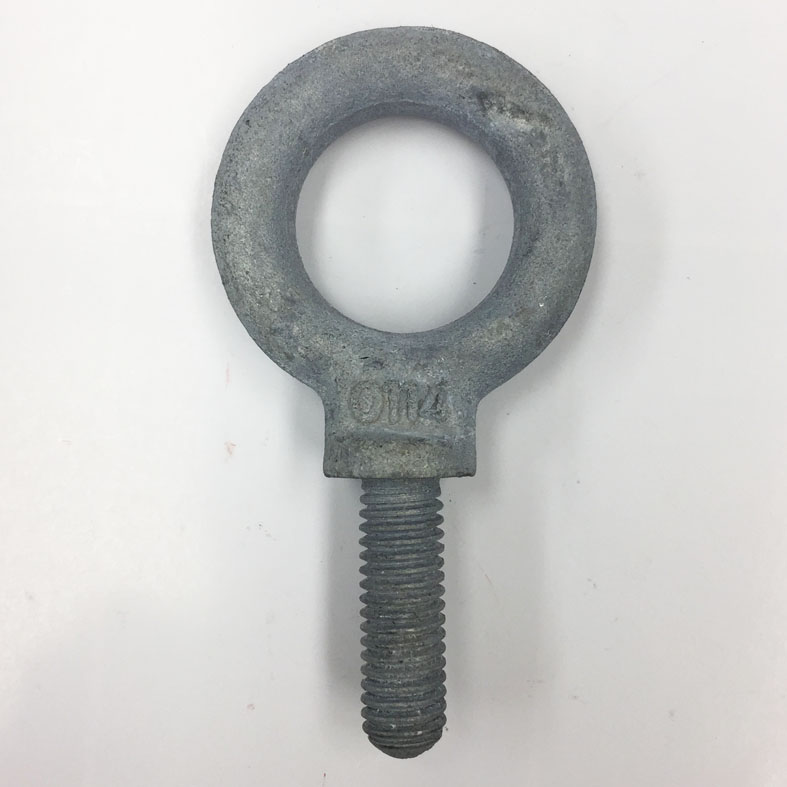

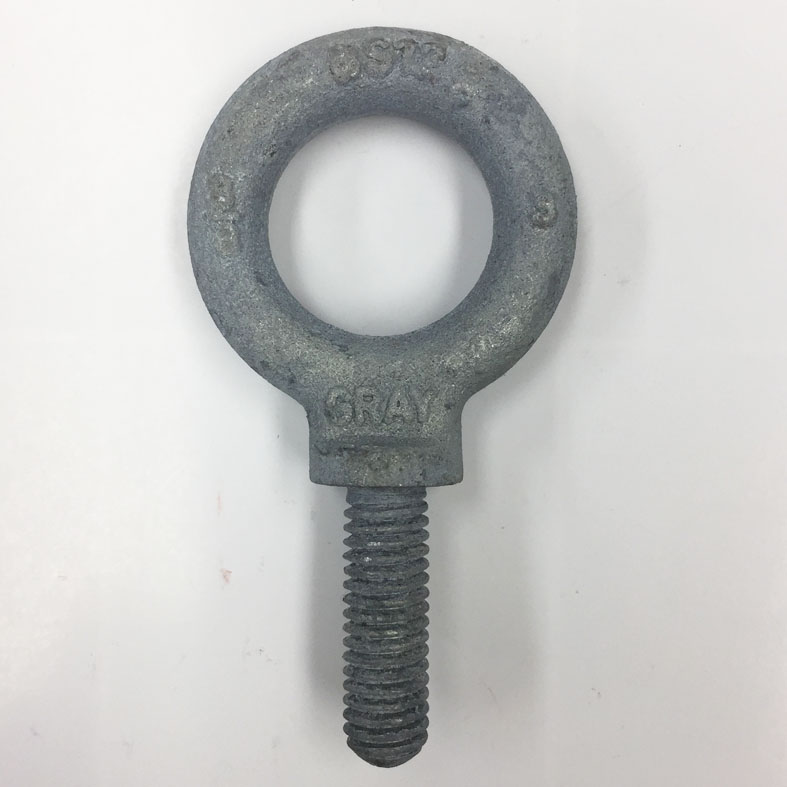

3/8x1-1/4 inch Gray Galvanized Machinery Eye Bolts

3/8 inch Gray Galvanized Shoulder Patern Machinery Eyebolts

Gray shoulder pattern eyebolts forged from bar quality fine grain C1030 / C1035 steel bar, and proof load tested in accordance with ASTM A489 and Federal Specifications ANSI B18.15. Shoulder style eyebolt 1/4" through 1" military style collar - MS51937 specifications. These eyebolts are undercut to ensure eyebolt will thread tight to shoulder. Galvanized for increased corrosion protection.

Thread - 3/8 x 16 UNC 2A

Shank length under the shoulder - 1-1/4 inch

Working load limit - 1,550 pounds

Specifications and dimensions: Click Here
