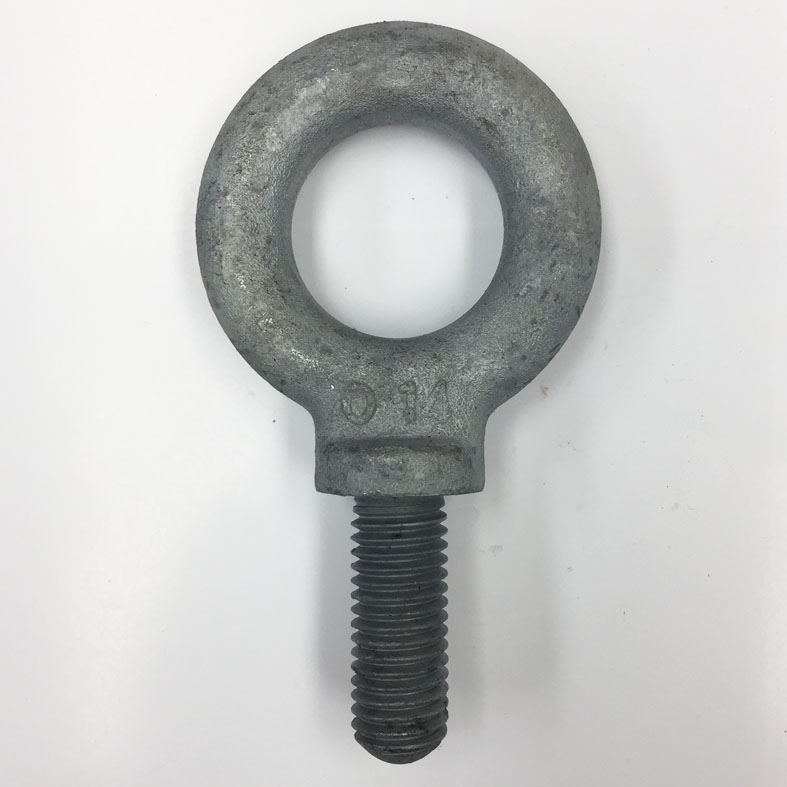

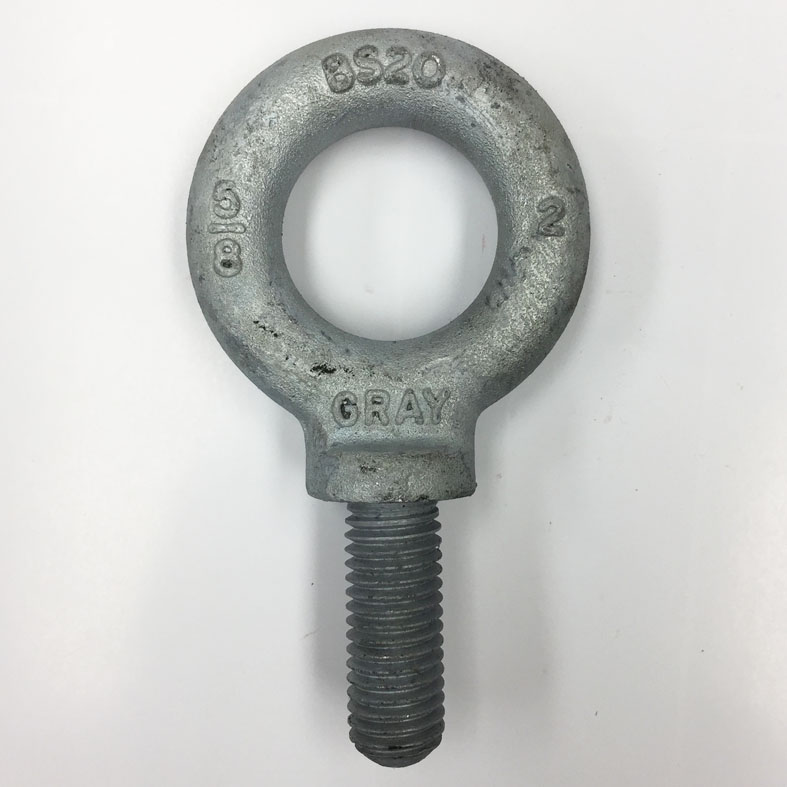

5/8x1-3/4 inch Gray Galvanized Shoulder Machinery Eye Bolts

5/8 inch Gray Galvanized Shoulder Pattern Machinery Eyebolts

Gray shoulder pattern eyebolts forged from bar quality fine grain C1030 / C1035 steel bar, and proof load tested in accordance with ASTM A489 and Federal Specifications ANSI B18.15. Shoulder style eyebolt 1/4" through 1" military style collar - MS51937 specifications. These eyebolts are undercut to ensure eyebolt will thread tight to shoulder. Galvanized for increased corrosion protection

Thread - 5/8 x 11 UNC 2A

Shank length under the shoulder - 1-3/4 inch

Working load limit - 5,200 pounds

Specifications and dimensions: Click Here
