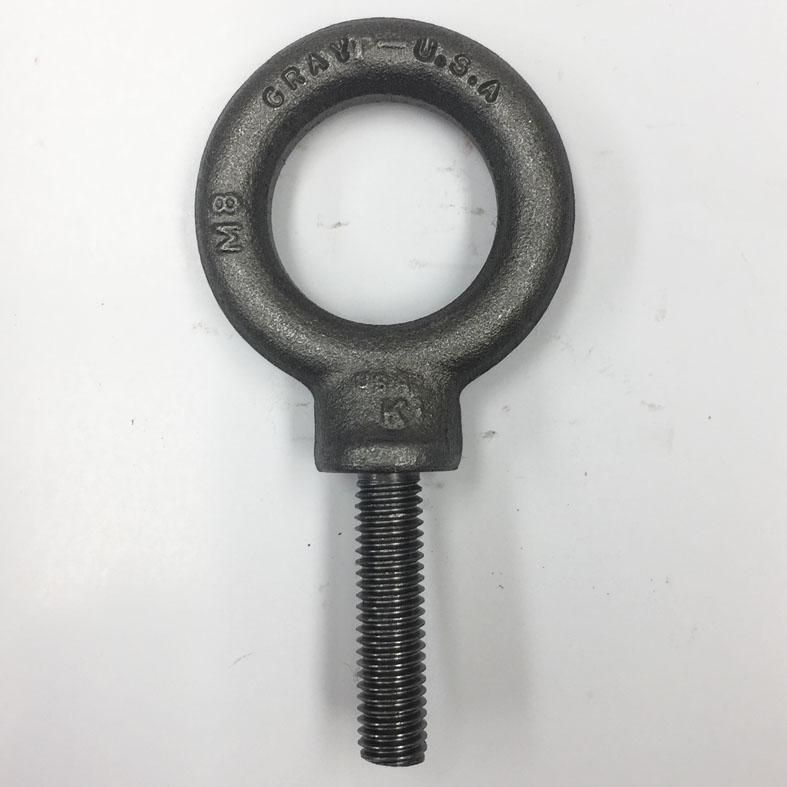

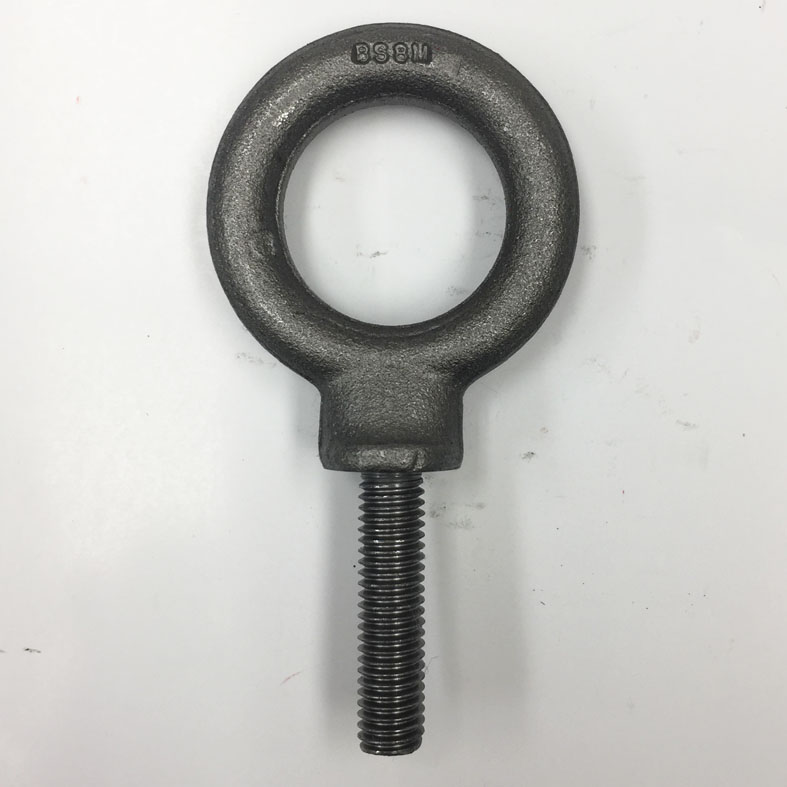

8mm Gray Metric Shoulder Machinery Eye Bolts

8mm Gray Metric Shoulder Eyebolts

Gray metric eyebolts forged from bar quality fine grain C1030 / C1035 steel bar, and proof load tested in accordance with ASTM A489 and Federal Specifications ANSI B18.15

Thread - 8mm x 1.25

Shank length under the shoulder - 31.7mm (1.25 inches)

Working load limit - 500 kgs / 1,110 pounds

Specifications and dimensions: Click Here
