RING HST SWVL ROUND BASE 1"
ACTEK SWIVEL HOIST RING 44666
Tech Specs

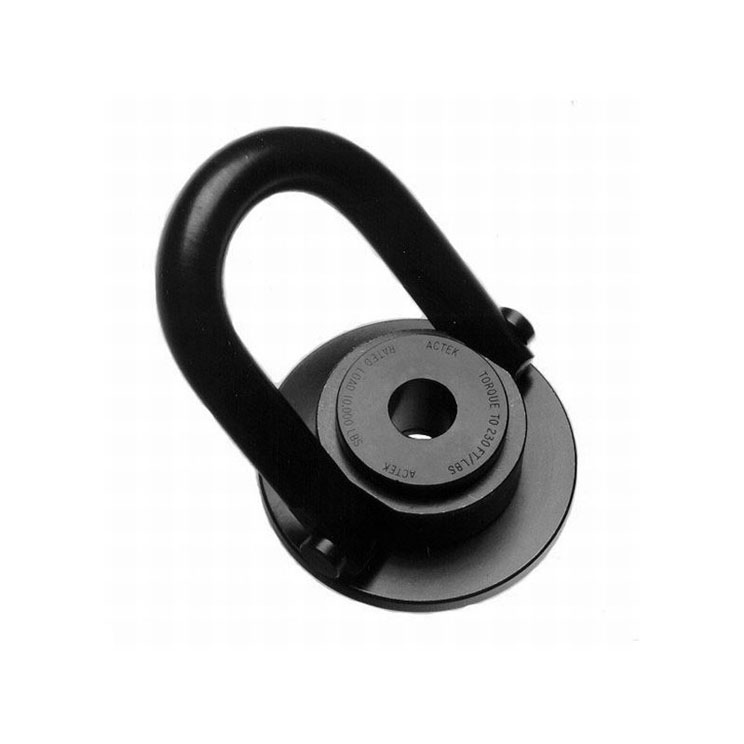

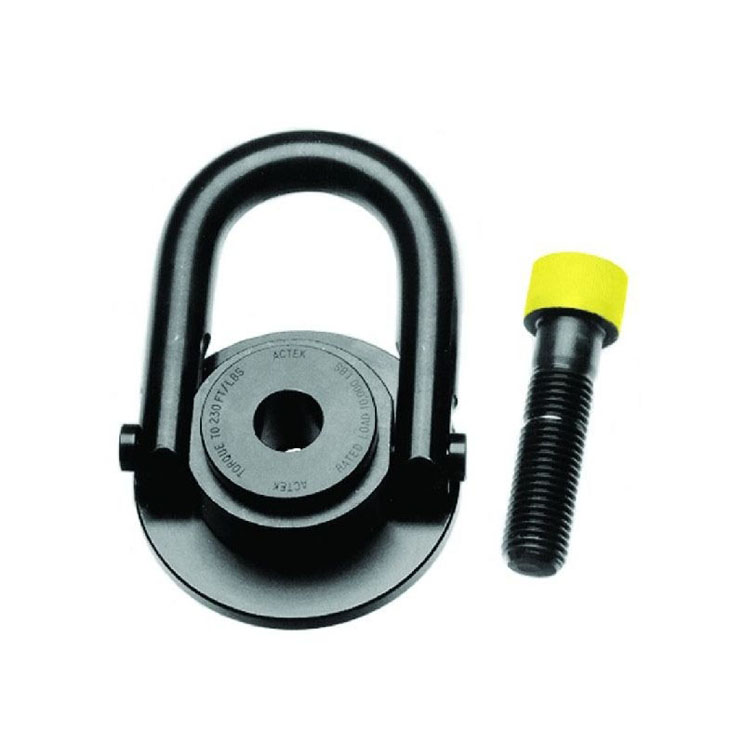

Actek Round Base Swivel & Pivot Hoist Ring 1 inch
The Actek Swivel Hoist Ring swivels 360° and pivots 180° simultaneously allowing lifting from any direction. This functionality makes them superior to tradional eyebolts, which will have reduction in lifting capacity due to angular loading. Each hoist ring is heat treated and 100% magnetic particle inspected, as well as 200% proof load tested. Each hoist ring is supplied with its own individual serial number and proof load certifcate. They have a safety factor of 5:1.
High Strength Alloy screws must be used.
Both UNC and Coil available.
Direct mounting.
Wide round base helps distribute shear loads.
Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/handling application.
Note: Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.
Lifting U-Bar Diameter - 1.4 inch
Working Load Limit - 10,000 pounds
Material - Aircraft Quality Alloy
Finish - Black Oxide per MIL Specification (Cadmium Plated Available)
Actek part number - 44666
FEATURES
Magnetic Particle Inspected
Certified Heat Treatment
Meets or Exceeds ASME B30.26
Dimensional drawing: Click Here
Safety notice: Click Here
CAD drawing: Click Here
Country of Origin
Made in USA
