RING HST SWVL 1"-8 X 2.29"
ACTEK SWIVEL HOIST RING 46214
Tech Specs

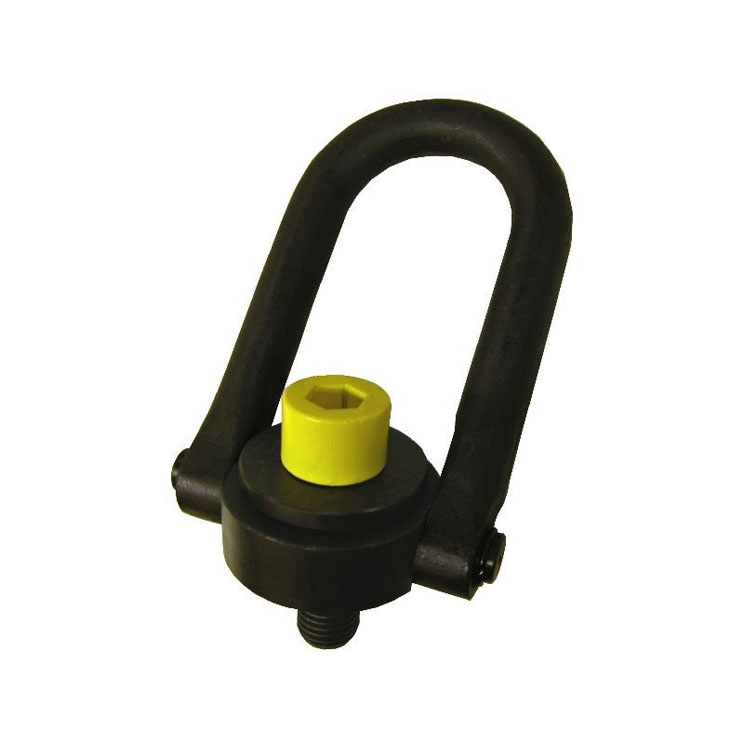

Actek Swivel Hoist Ring 1" - 8 thread
The Actek Swivel Hoist Ring swivels 360° and pivots 180° simultaneously allowing lifting from any direction. This functionality makes them superior to tradional eyebolts, which will have reduction in lifting capacity due to angular loading. Each hoist ring is heat treated and 100% magnetic particle inspected, as well as 200% proof load tested. Each hoist ring is supplied with its own individual serial number and proof load certifcate. They have a safety factor of 5:1.
Thread Size - 1 inch - 8
Lifting U-Bar Diameter - 1 inch
Working Load Limit - 10,000 pounds
Thread Protrusion - 2.29 inches
Torque to 230 ft-lbs
Material - Aircraft Quality Alloy
Finish - Black Oxide per MIL Specification (Cadmium Plated Available)
Actek part number - 46214 (Crosby HR-125 1016969 Equivalent)
Applicable screw part number - 46254
FEATURES
Magnetic Particle Inspected
Certified Heat Treatment
Meets or Exceeds ASME B30.26
Conforms to CE
Dimensional drawing: Click Here
Safety notice: Click Here
CAD drawing: Click Here
Country of Origin
Made in USA
