3/8 inch 0.4 tonnes Yoke Key Eye Points
EYE BOLT KEP 8-292K 3/8x0.57"
YOKE UNC THREAD KEY EYE POINT
SKU
28RUD-KEP8292K004
Weight
0.3 lb
Price
$55.65
Mfg. Part #
8-292K-004
Tech Specs
Yoke 3/8 inch UNC 0.40 tonnes 8-292K-004 Key Eye Point
•Rotates through 360° adjustable in the direction of the load.
•Manufactured from alloy steel, quenched and tempered. Captive bolt with high WLL.
• Tested in accordance with EN1677-1.
•Load rated parts are 100% magnaflux crack detected.
•Individual forged parts and cap screw are traceable to Test Certification.
•Bolts are UNC thread.
•Proof tested to 2.5 times the WLL.
•Fatigue rated to 20,000 cycles at 1.5 times the WLL.
•All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
•Quick and simple assembly, just a tapped hole is required.
| 3D file download | Item No. |
Working |
Thread version inches |
Dimensions Inches |
Torque in Nm |
N.W. lbs. |
||||||||

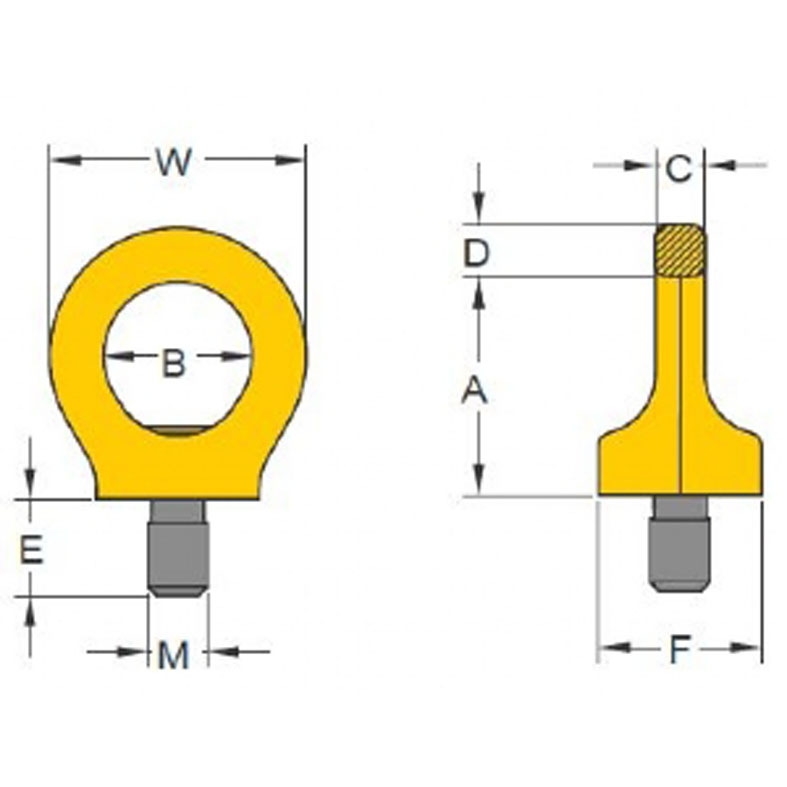

| M | E | TPI | A | B | C | D | F | S | W | |||||
 |
8-292K-004 | 0.4 | 3/8 | 0.57 | 16UNC | 1.42 | 0.98 | 0.31 | 0.35 | 0.98 | 0.25 | 1.73 | 10 | 0.2 |
Country of Origin
Made in Taiwan
