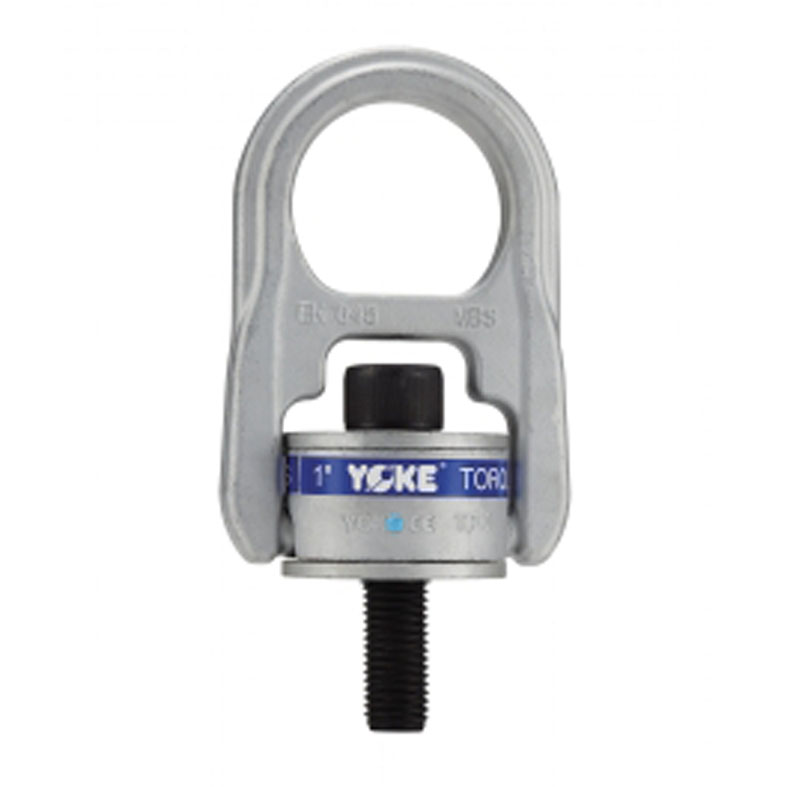

3/4-10UNCx1.24 inch Yoke Swivel Hoist Ring

Yoke 3/4 inch UNC x 1.24 inch long 8-204-021 Swivel Hoist Ring

• Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and tested in accordance with EN1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolt are UNC thread (ASME/ ANSI B18.31M).
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.

3D file download	Item NO.	Working Load Limit lbs.	Thread  TPI	Dimensions(inch)						Torque in ft. lbs.	Weight lbs.
				A	B	D	E	F	G
	8-204-021	5000	3/4 - 10UNC	2.56	2.87	0.59	1.24	6.26	4.13	100	4.0

★ Safety Factor 5:1

§ Long Bolts are designed for soft metal work piece.
