1-1/2 inch 30 tonnes Yoke Alloy Wide Body Bolt Type Shackles
SHKL BODY WIDE 8-809-38 1-1/2"
30 TONNES YOKE WIDE BODY SHACKLE
SKU
50WBS-G030Y
Weight
27.6 lb
Price
$555.60
Mfg. Part #
8-809-38
Category
Tech Specs

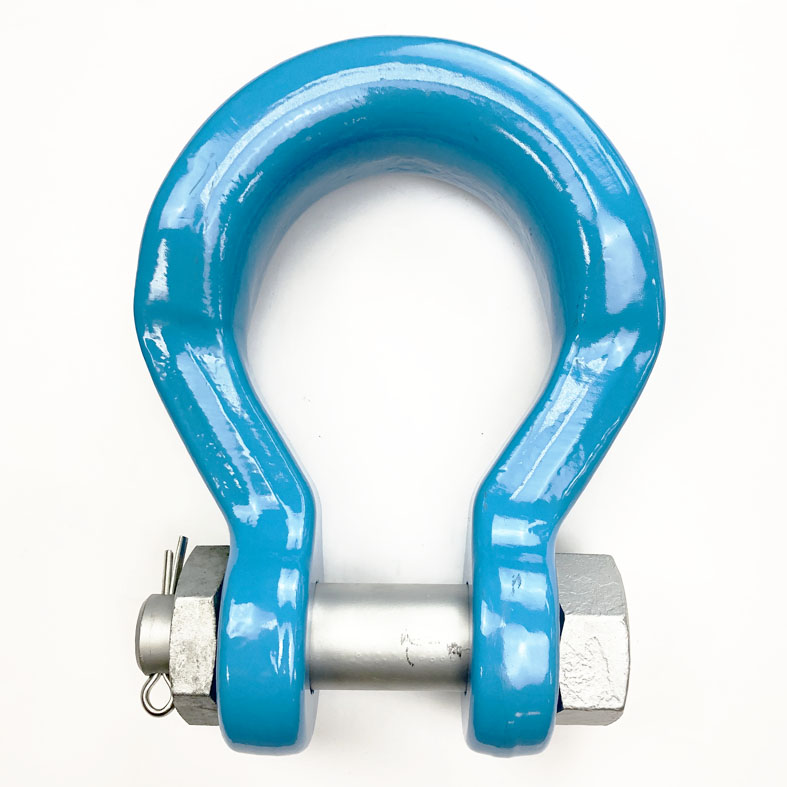

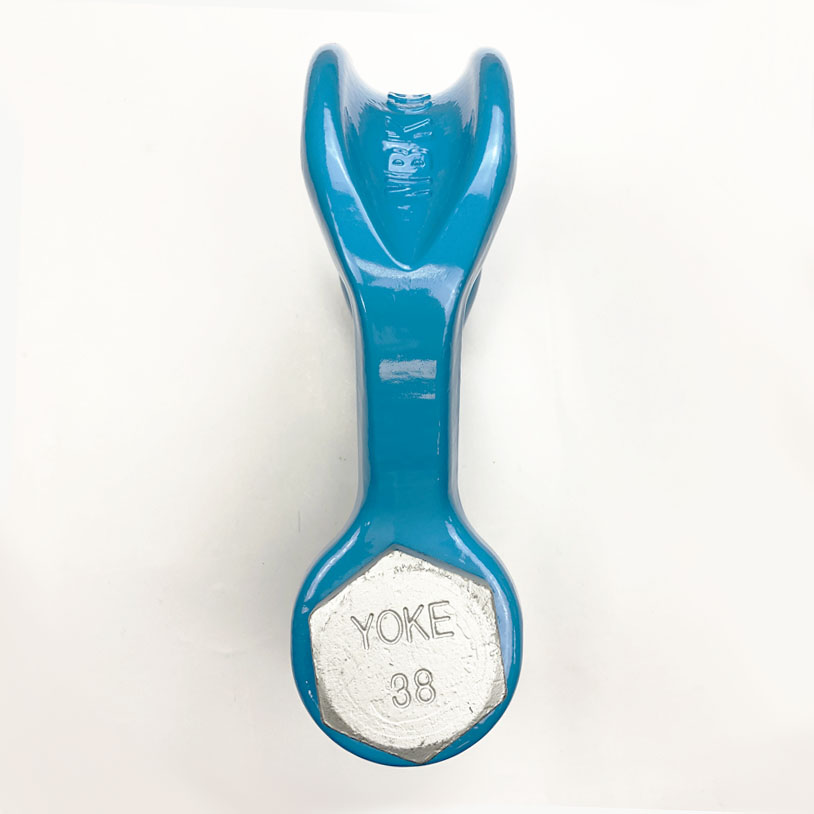

Yoke 1-1/2 inch 30 tonnes 8-809-38 Forged Alloy Wide Body Bolt Type Shackle
Description

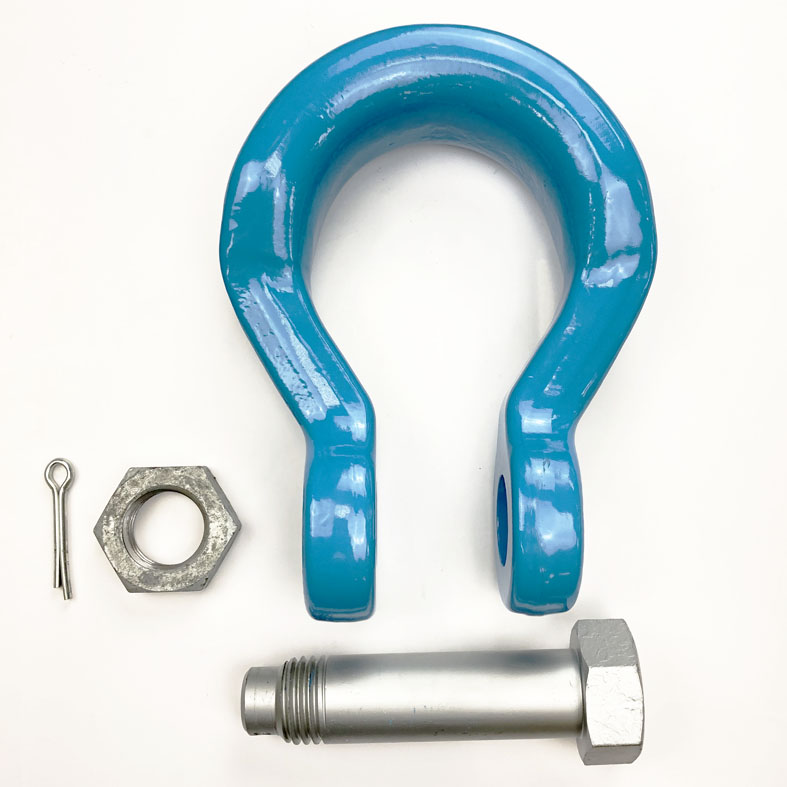

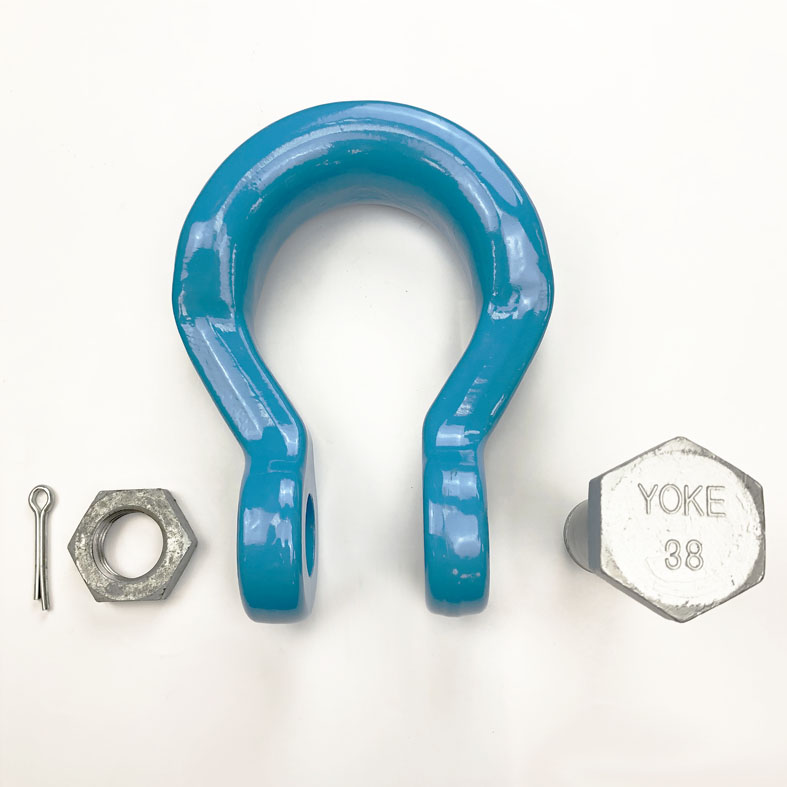

●Shackles are forged alloy steel with alloy pin.

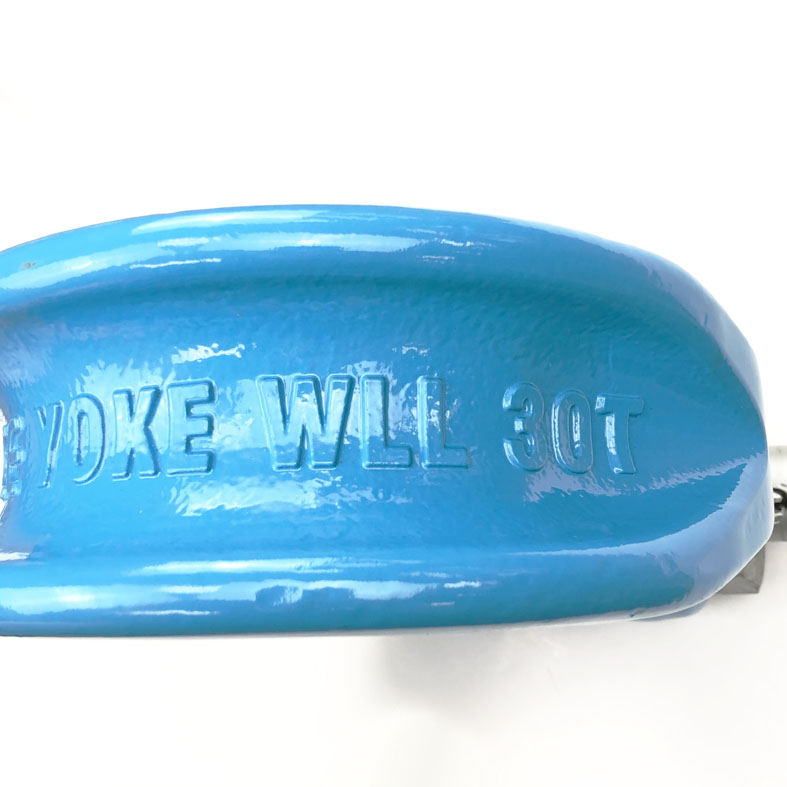

●Size and the Working Load Limit permanently shown on each shackle.
●All shackles with Batch Code which links to Test Certificate and quality traceability.
●100% magnaflux crack detection during manufacturing.
●20,000 cycle fatigue rated to 1.5 times Working Load Limit.
●Shackles are forged alloy steel with alloy pin.
●Size and the Working Load Limit permanently shown on each shackle.
●All shackles with Batch Code which links to Test Certificate and quality traceability.
●100% magnaflux crack detection during manufacturing.
●20,000 cycle fatigue rated to 1.5 times Working Load Limit.
Dimensional Specifications:
| Item No. |
Nominal Size |
Working Load Limit | Dimensions (inch) | N.W. | |||||||||
| inch | tonnes* | A | B | C | D | E | G | H | K | R | W | lbs | |
| 8-809-38 | 1 1/2 | 30 | 6.93 | 3.15 | 1.38 | 1.77 | 2.50 | 3.50 | 11.38 | 8.50 | 1.77 | 2.36 | 27.5 |
★ Minimum Ultimate Load is 5 times the Working Load Limit. Maximum Proof Load is 2 times the Working Load Limit.
★ 8-809-32/-38 See Figure 2
Country of Origin
Made in Taiwan
