SQC295HDHP Square Alloy Pattern Skid Steer Chains with Cams

TIRE DIAM SQ WC SQC295HDHP 8MM
SQUARE H-PATTERN WITH WEAR BARS
Price per Pair

SKU

14SKD-SQ29510DIA

Weight

110 lb

Price

$789.22

Brand

ProCraft Snow Chain

Mfg. Part #

14SKD-SQ29510DIA

Tech Specs

5/16 inch SQC295HD-HP Procraft H-Pattern Alloy

Square Link Skid Steer Chains with Cams

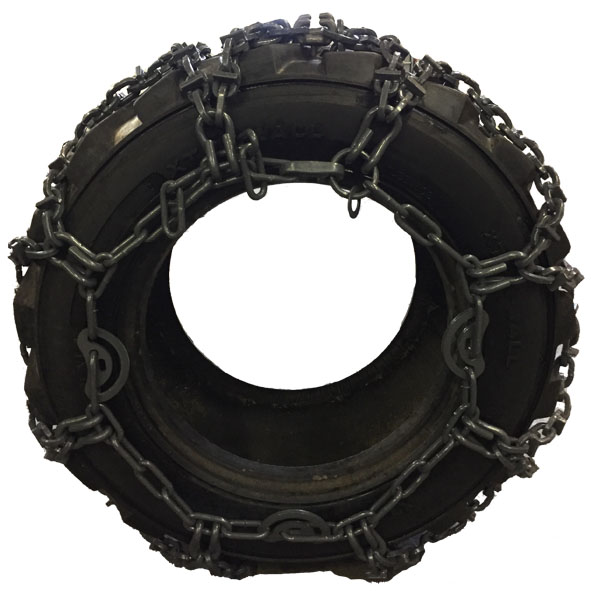

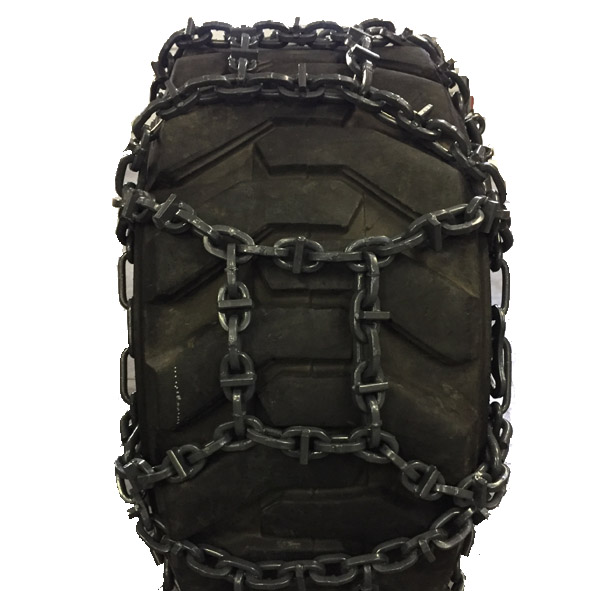

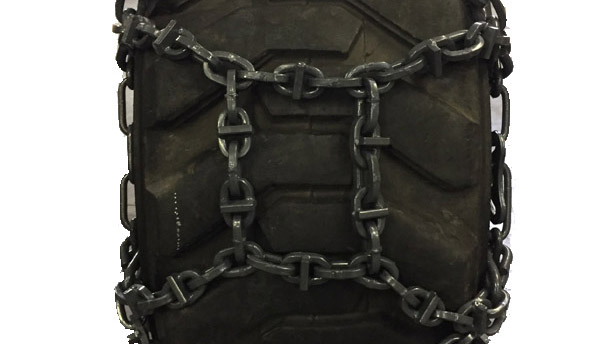

These premium chains are made from alloy steel drawn to square profile welded in an H-pattern with wear bars. They are smooth running and intended for use in snow, ice, and mud.

Made from 8mm Square Link Alloy Chain with welded wear bars, these are the smoothest running of all skid steer chains. These chains are meant to stay on tires and not taken on and off often because they use plug couplers to connect the beginning and ends of the chains to maintain the smooth ride where the chains come together.

These chains come standard with cams to take up looseness in the side chain.

Typical uses would be for Skid Steer Equipment on hardpacked snow and ice on pavement.

This item fits the following tires:

315/75D15

12-16.5, 305/70-16.5

10.50/80-18

280/70-20, 300/70-20

8.3-24

These chains are fitted with 3 cams per tire for easier tensioning of chains. Simply install chain tight with cams in extended position, then close the cams as necessary to take up any residual slack. It is not neccessary to close all the cams. Just close cams to fit chains snuggly, but not so tight that chains exert pressure on the tire itself.

Cam in Open Position Insert Cam T-wrench Turn Clockwise to Close Cam in Closed Position
