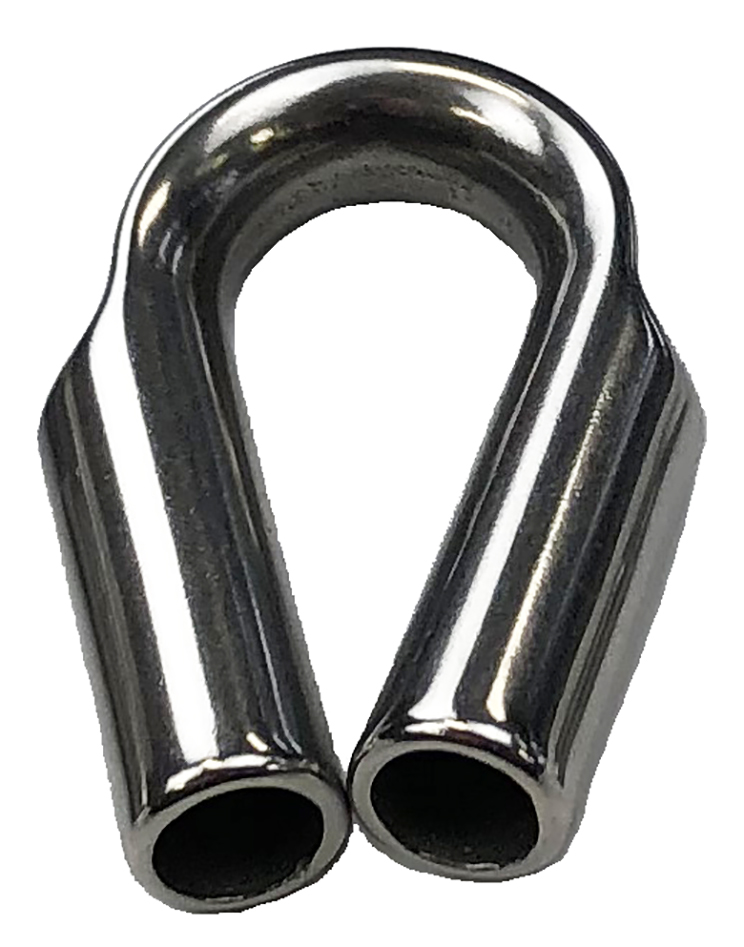

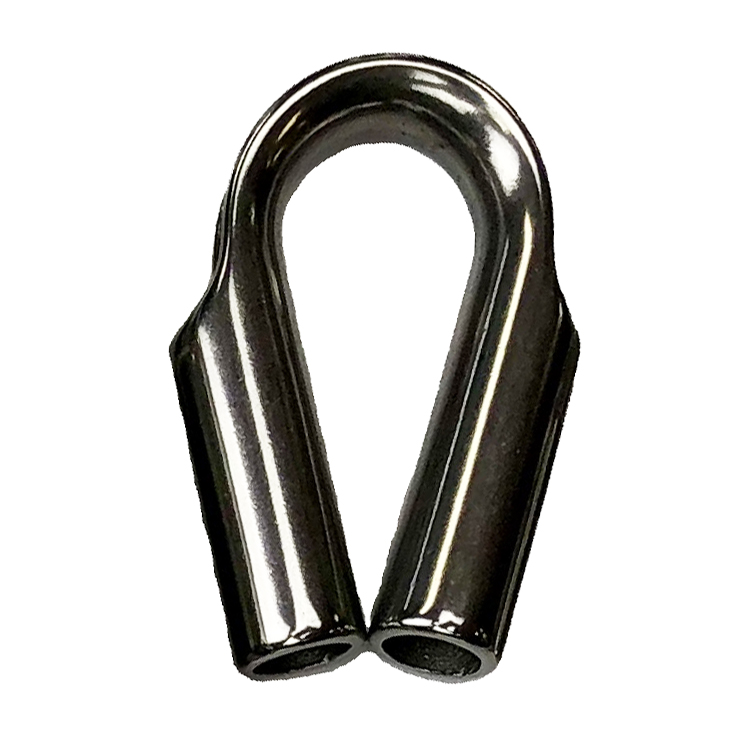

1/4 inch Stainless Steel Tube Thimbles
THIMBLE TUBE SS 316 1/4" W/R
STAINLES STEEL TUBE THIMBLE
SKU
76SS-TB10
Weight
0.06 lb
Price
$6.44
Brand
Mfg. Part #
76SS-TB10
Tech Specs
1/4 inch Stainless Steel 316
Tube Thimble
Tube thimbles are ideal for use on wire and rope where flexibility is key. Examples being in fishing industry where wire rope for bottom fishing is assembled with netting and store on large net winches. Conventional heavy duty thimble and sleeve creates a very rigid termination causing high spot and tangling on net winch. Tube thimbles are placed in eyes of ropes with the sleeve pressed a distance down the rope to enable the eye to flex and contour around the winch drum between the thimble and the sleeve.

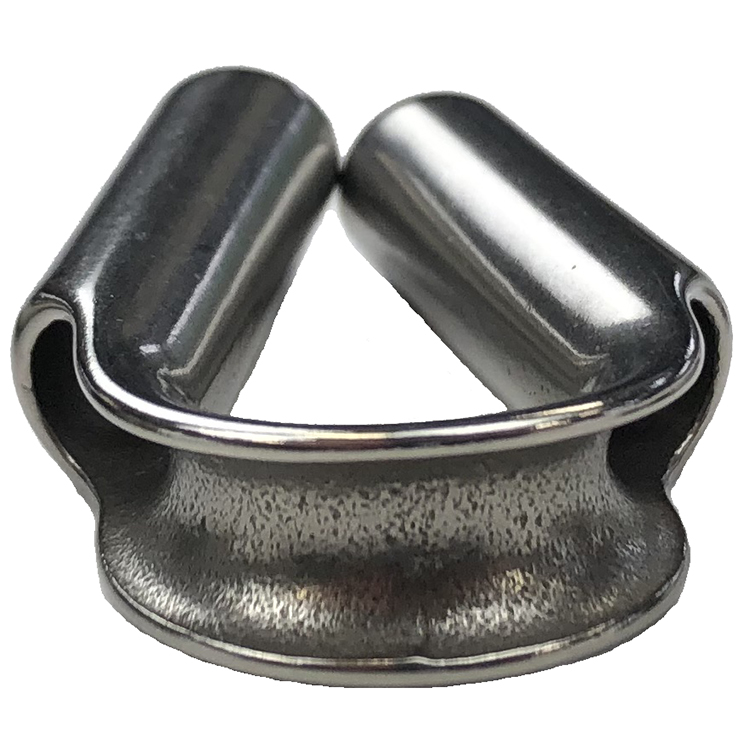

These tube thimbles come reinforced with gusset to prevent thimble from collapsing under load. Gusset is welded to thimble on one side only allowing thimble to be opened for installation over rings and hooks. Ideal for wire rope winch lines and other wire or synthetic rope terminations. Cannot be used with flemish eye splices. Allow 6 times the diameter of the rope behind thimble before starting splice. This will ensure flexibility behind thimble.
THIMBLES are designed and manufactured to protect wire rope from wear and damage, and preserve the shape of the eye when using shackles and hooks. Always ensure that you have the correct thimble for the size of rope being used, for any intermediate size the next size must be used. Thimbles are not load rated and only serve to protect the rope. Always inspect thimbles for abuse, damage, cracks and deformation (stretch) before use. Thimbles can be used for wire or synthetic rope.
Country of Origin
Made in Canada
