1625-20-1 Klein Haven's Cable Grip 0.50 to 1.00 inch
TLS GRIP KLEIN 1/2 TO 1"
KLEIN GRIP MODEL: 1625-20-1
SKU
80GRP-1625-20-1
Weight
3.5 lb
Price
$398.58
Brand
Mfg. Part #
1625-20-1
Tech Specs

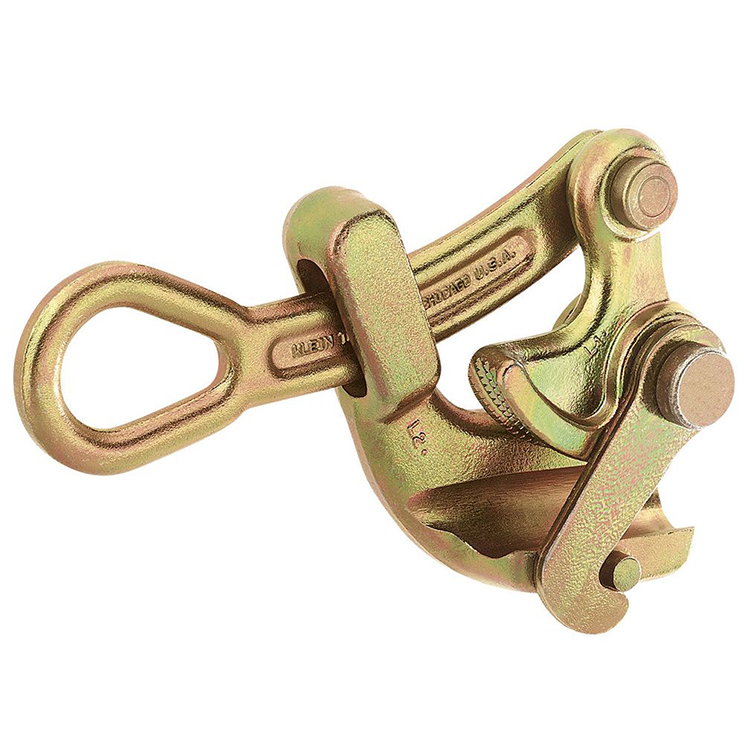

1625-20-1 Klein Haven's® Cable Grip
0.50 to 1.00 inch
The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
- Designed for use when light, compact grip is desired and where conductor damage is not a factor
- Works on 0.50 to 1.00-Inch (12.70 to 25.40 mm) wire rope cable diameters with max safe load of 8,000 lb (3,629 kg)
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
Specifications:
Type: Havens Grip
Application: Wire Pulling
Cable Type: Wire Rope
Cable Diameter: 0.50'' to 1.00'' (12.70 to 25.40 mm)
Hot Latch: No
Swing Latch: Yes
Spring: No
Locking Handle: No
Jaw Type: Agressive
Maximum Safe Load: 8,000 lb (3,629 kg)
Specification Sheet Click Here
Applications Sheet Click Here
Maintenance Click Here
Country of Origin
Made in USA
Compliance & Restrictions
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation, not for permanent anchorage.
Grip Maintenance Click Here
