Tech Specs

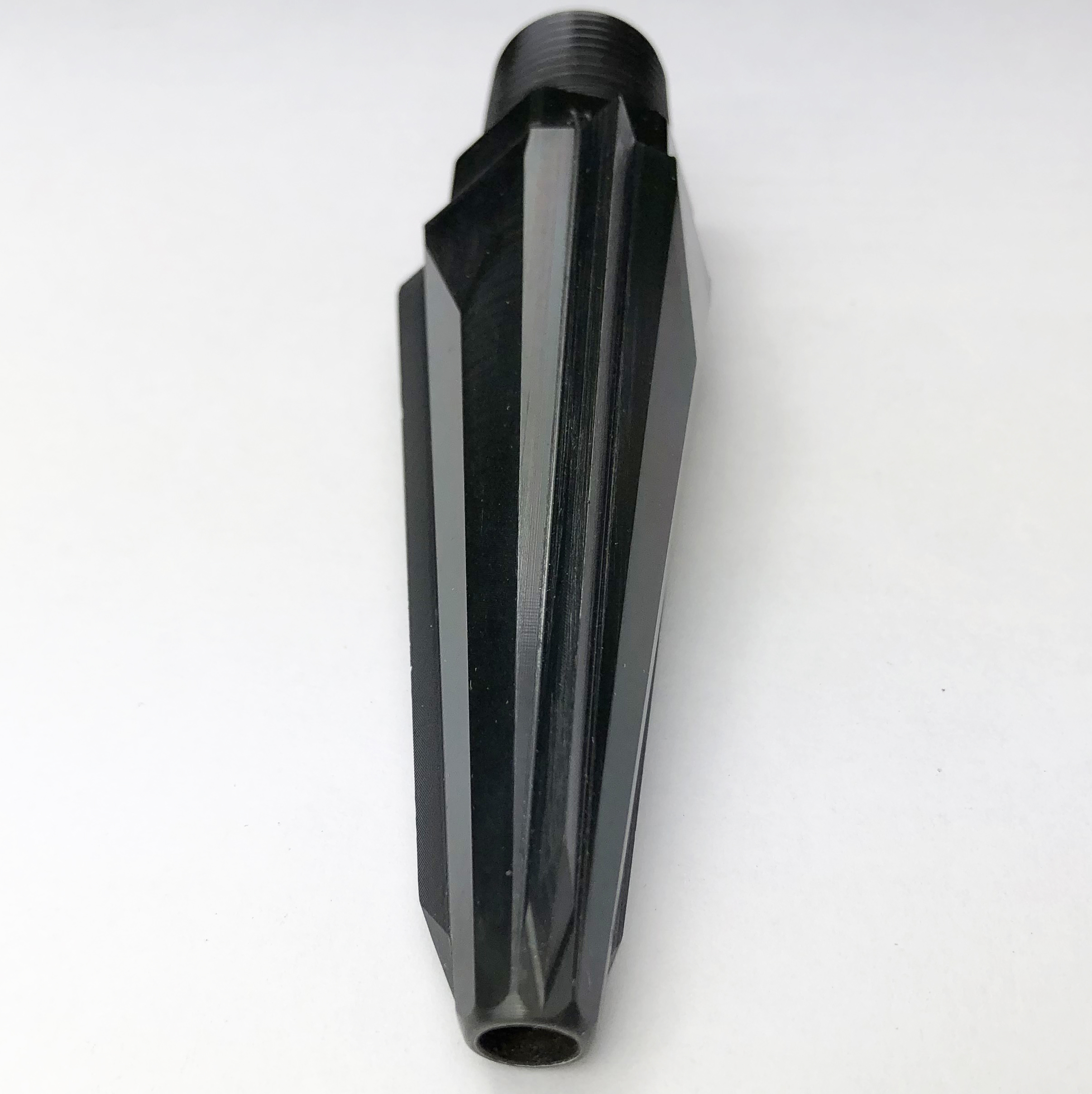

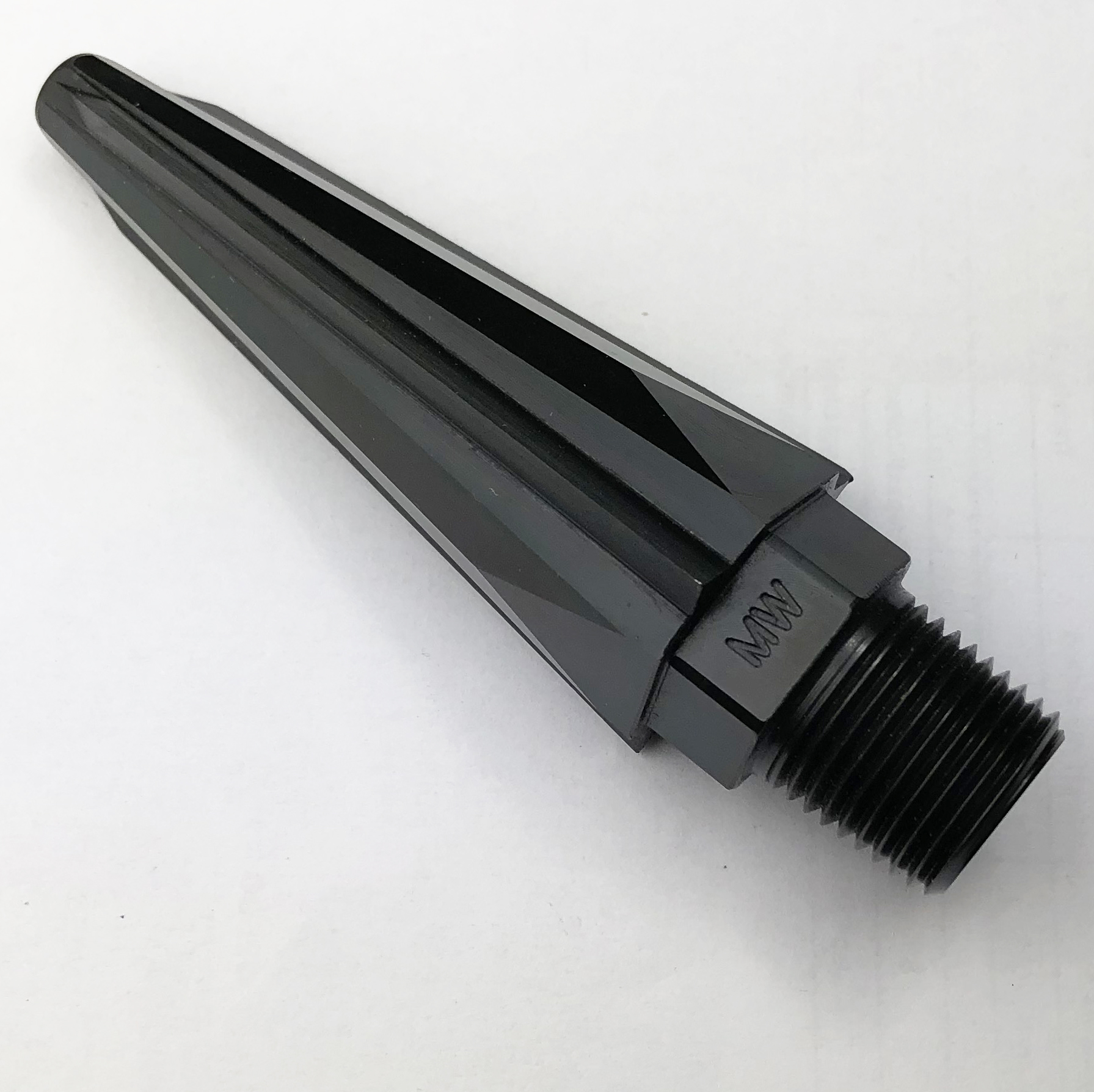

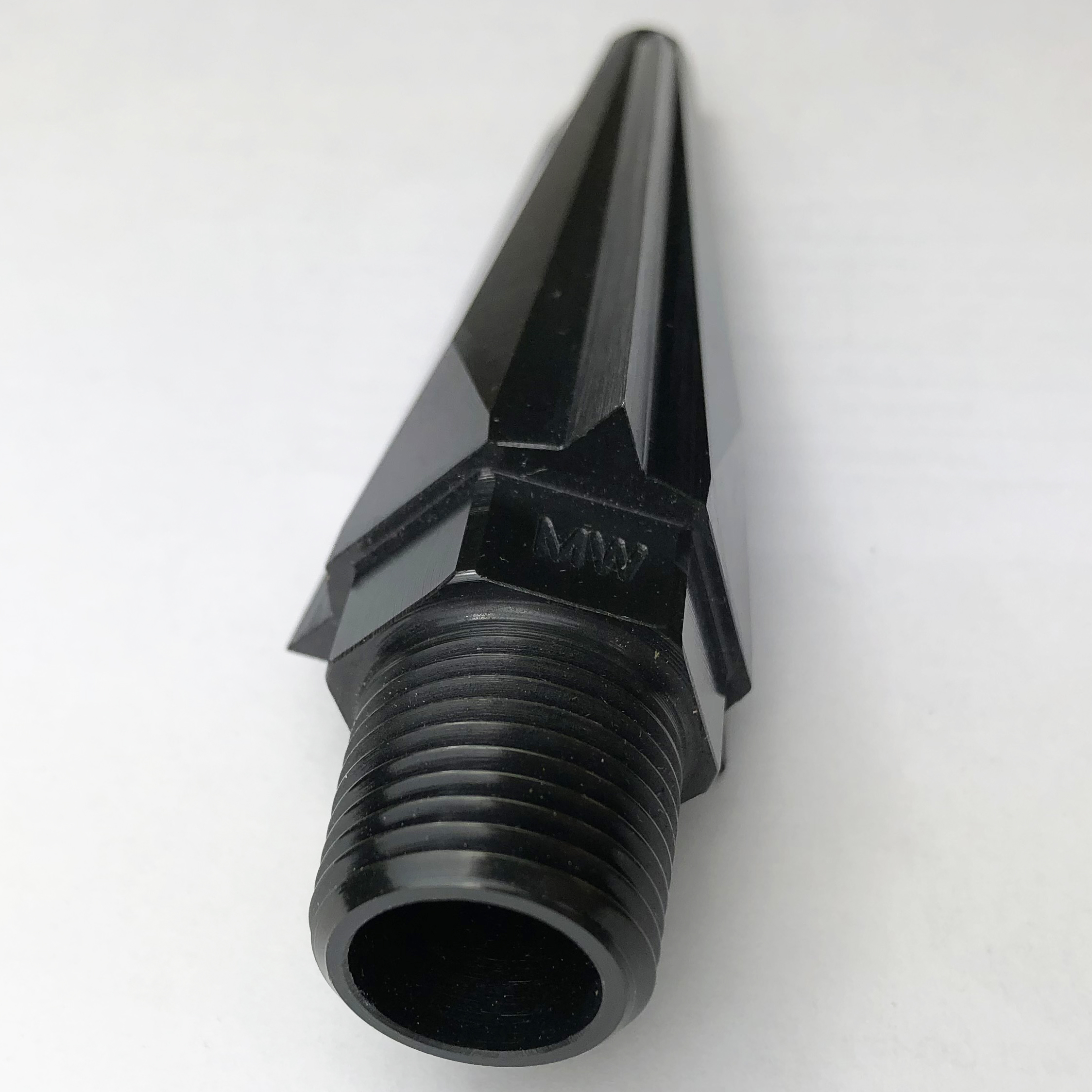

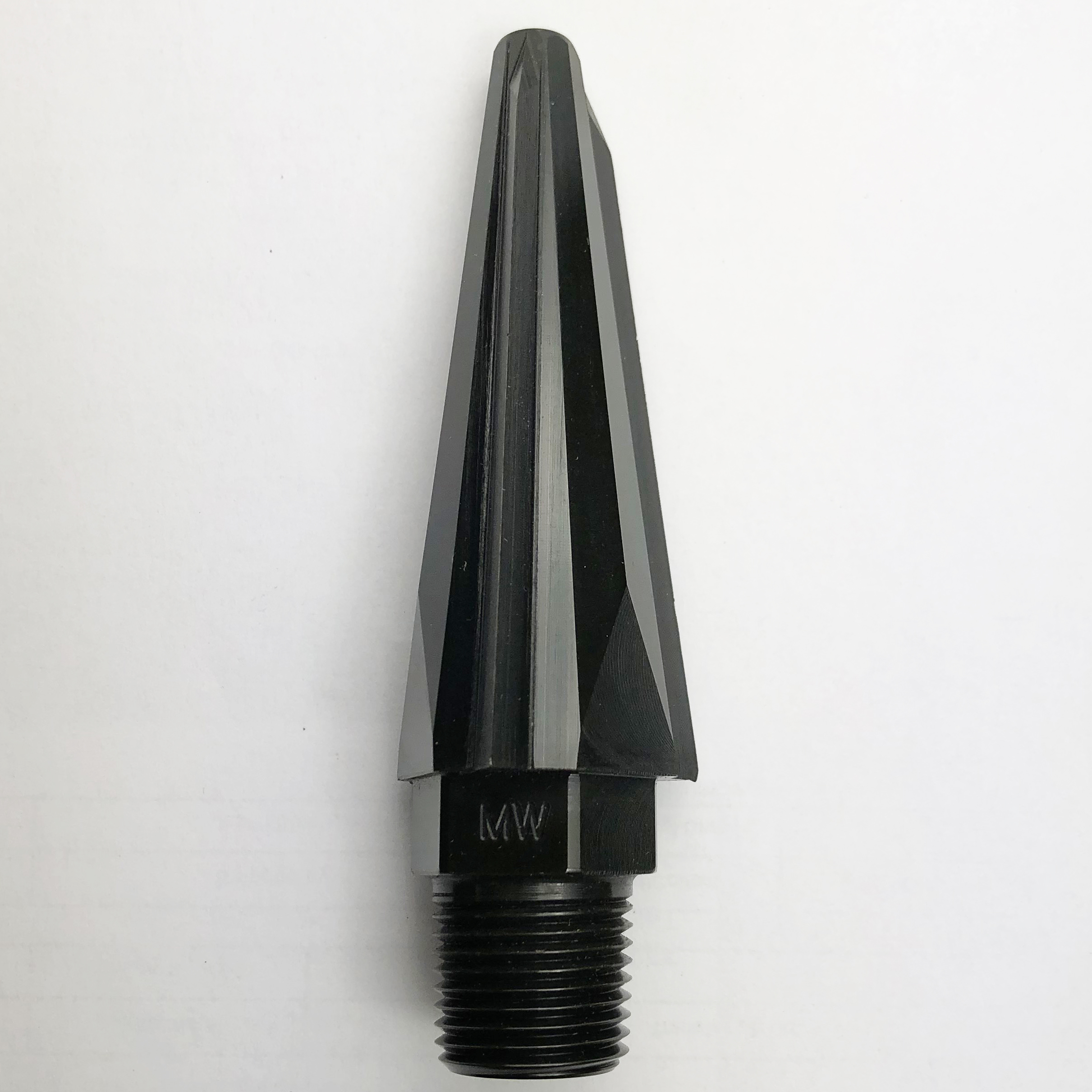

Mini Wedge Triple Blade
The Wedge service line replacement tool is ideal for replacing 3/4" and 1" water services quickly and easily. Operation of the Wedge is simple - just feed the aircraft cable through the existing service and then pull the Wedge through the ground using a backhoe, truck or winch. No special equipment is required! The new service can be easily attached to the back of the Wedge so the old line can be split or pulled out and the new line pulled in, all in one operation! The Wedge will split existing copper and PE lines and will pull out lead or galvanized lines. This tool is a must for any utility contractor or plumber who is looking for an efficient and low cost alternative to costly excavation.
To be used with 1/4 inch or 6mm diameter wire rope, with 3 cutting edges.
