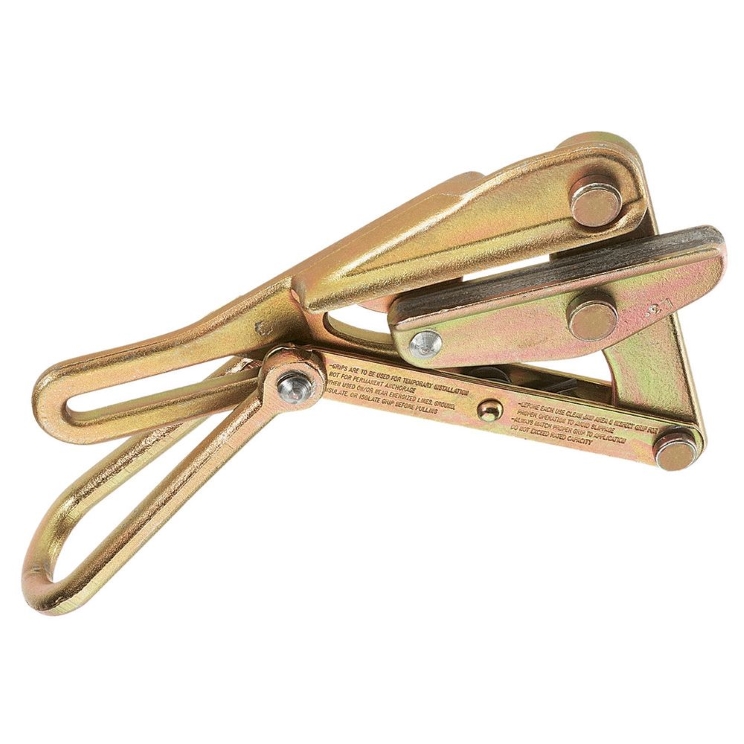

1684-5 Klein Chicago Grip 0.218 to 0.55 inch
TLS GRIP CHICAGO .218-.55
CHICAGO GRIP MODEL: 1684-5
SKU
80GRP-1684-5
Weight
5.8 lb
Price
$652.59
Brand
Mfg. Part #
1684-5
Tech Specs
1684-5 Klein Chicago Grip
0.218 to 0.55 inch
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.218-Inch to 0.55-Inch (5.5 to 13.9 mm). Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.
- Designed for cable sizes from 0.218 to 0.55-Inch (5.5 to 13.9 mm) with Max Safe Load of 8,000-Pound (3,629 kg)
- Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
Specifications:
Type: Chicago Grip
Application: Wire Pulling
Cable Type: Aircraft, EHS, Messenger, Guy Strand
Cable Diameter: 0.218'' to 0.55'' (5.54 to 13.97 mm)
Hot Latch: No
Swing Latch: No
Spring: Yes
Locking Handle: Yes
Jaw Type: Double V
Jaw Length: 5'' (12.7 cm)
Maximum Safe Load: 8,000 lb (3,629 kg)
Specification Sheet Click Here
Applications Sheet Click Here
Maintenance Click Here
Country of Origin
Made in USA
Compliance & Restrictions
Warnings
-
Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
-
When used on/near energized lines, ground, insulate, or isolate grip before pulling.
-
Do not exceed rated capacity.
-
Always match proper size and type of grip to application.
-
Grips are to be used for temporary installation, not for permanent anchorage.
Grip Maintenance Click Here
