3/32 inch 1x19 Stainless 316 Strand
W/R 1X19-3/32" STL/STL 316 AC
STAINLESS 316 AIRCRAFT CABLE
Price per Foot
SKU
W11903S1C
Weight
0.02 lb
Price
$0.22
Brand
Mfg. Part #
W11903S1C
Category
Tech Specs

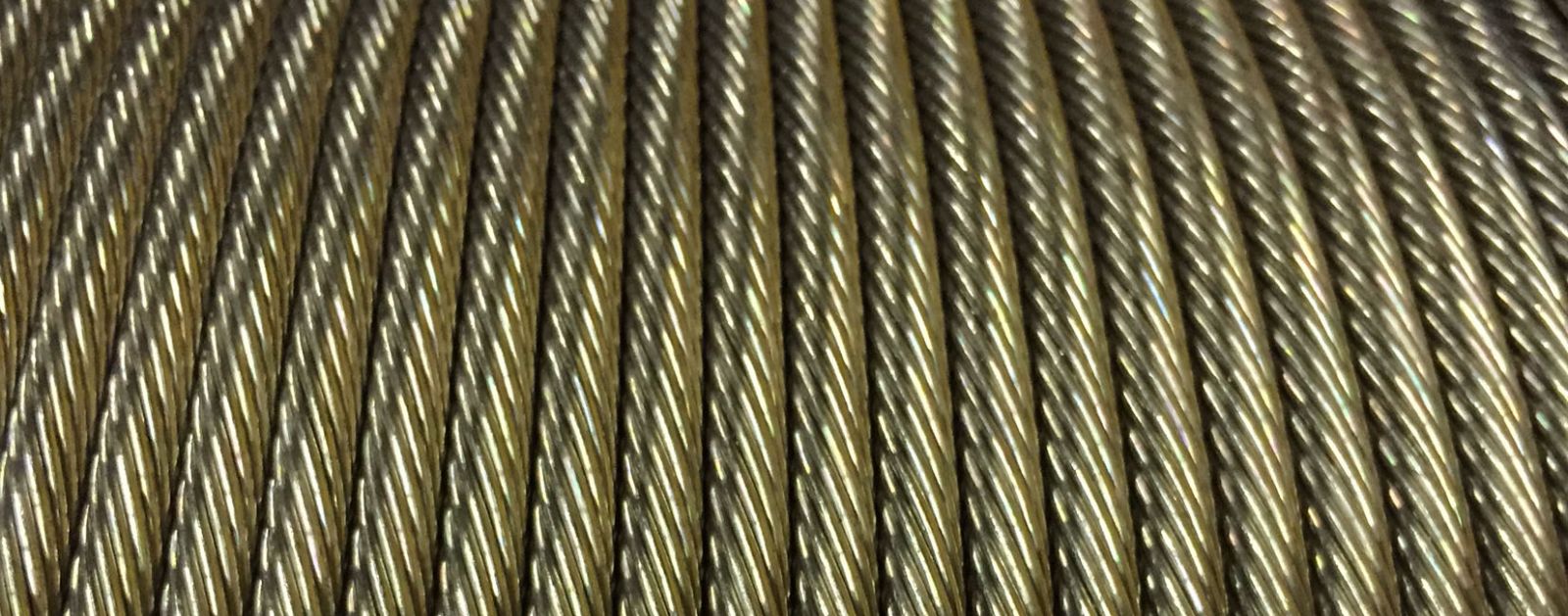

3/32 inch 1x19 Stainless Steel Type 316
PowerStrand Aircraft Cable

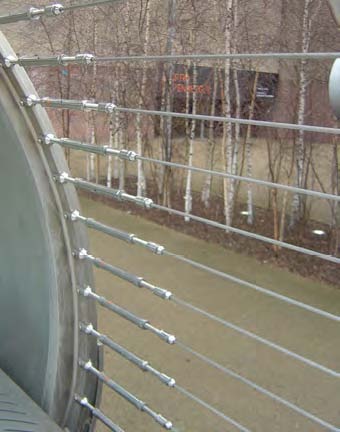

A stiff spiral strand construction suitable for standing rigging. While the outside strands are left lay, the inside strands are right lay, resulting in a rotation resistant construction that has one of the lowest elongation (stretch) characteristics in cable. Applications include yacht & sail boat rigging, architectural, guying, balustrading and display. This cable is made from stainless steel type 316, electro-polished, and ultra-sonic water cleaned for a shiny finish.

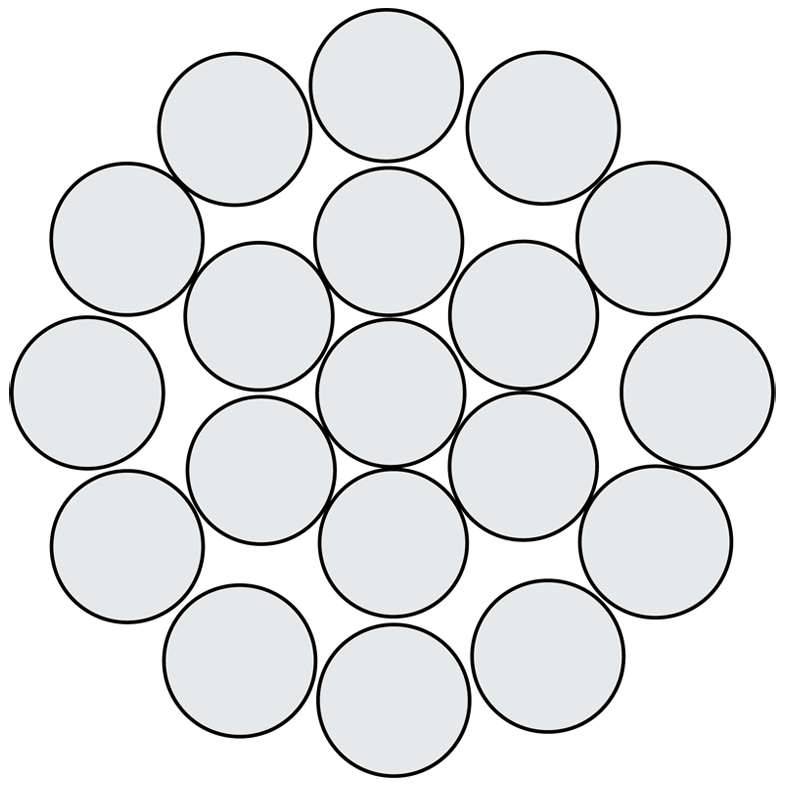

Construction: 1x19 (12+6+1)
Stainless Steel Grade: Type 316
Outside Lay: Left Lay
Load Bearing Outer Wires: 12
Fill Factor: 0.76
Minimum Breaking Strength: 1,000 lbs.
*Use of swivel is Not permitted. Not suitable for overhead lifting.
For 1x19 Strand Catalogue Pages: Click Here
For Full PowerStrand Wire Rope Catalogue: Click Here (13.3 MB)
! ! !Not to be used for Aircraft! ! !
