1 inch UPS6 Swaged Compacted Wire Rope
UPS6 COMPACT/SWAGE 1" IWRC G-2160
POWERSTRAND UPS6 BRIGHT WIRE ROPE
Price per Foot
SKU
W62632ADS-2160
Weight
2.41 lb
Price
$13.10
Brand
Mfg. Part #
W62632ADS-2160
Product Type
Tech Specs
1 inch 6x26 Swaged Compacted Bright 2160N/mm2
6 Outer Strands, PowerStrand UPS6 Wire Rope
UPS6 is a compacted and rotary swaged wire rope and is offered in a 6 x 26 construction. It has a very high breaking strength with a smooth outside finish for minimizing drum crushing and increased sheave life, a high fill factor and very low stretch. Commonly used as a hold back line, boom pendant rope, luffing wire rope, pulling rope and hoists.

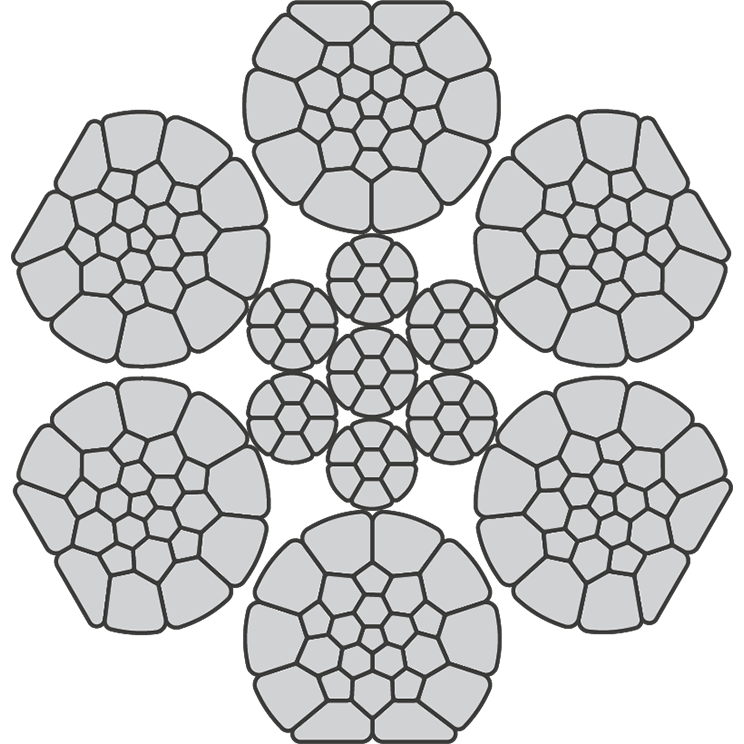

Construction: 6x26WS (10+(5+5)+5+1) Warrington Seale
Finish: Ungalvanized
Lay: Right Hand Regular Lay
Load Bearing Outer Wires: 156
Fill Factor: 0.76
Tensile Grade: 2160N/mm2
Minimum Breaking Strength: 640.0kN (144,000 lbs.)
* Use of swivel is Not permited
For PowerStrand UPS6 Strength Chart: Click Here
For Full PowerStrand Wire Rope Catalogue: Click Here (13.3 MB)
Country of Origin
Made in South Korea
