1/16 Inch 7x7 Stainless AC 316
W/R 7X7-1/16" SS316 AIR/CRFT
STAINLESS STEEL AIRCAFT CABLE
Price per Foot
SKU
W70702S1C-316
Weight
0.0073 lb
Price
$0.15
Brand
Mfg. Part #
W70702S1C-316
Tech Specs
1/16 Inch 7x7 Stainless Aircraft Cable
6 Outer Strands, PowerStrand Wire Rope
This is a commercial grade aircraft cable that makes for a very good all round small diameter rope. It is suitable for many applications including light rigging, marine ropes, rigging stays, pulling and control cables. Manufactured from Stainless Steel 316 rod for increased corrosion resistance compared to 304 grade. This cable is not to be used on aircrafts, or for any application requiring MIL Spec Cable.

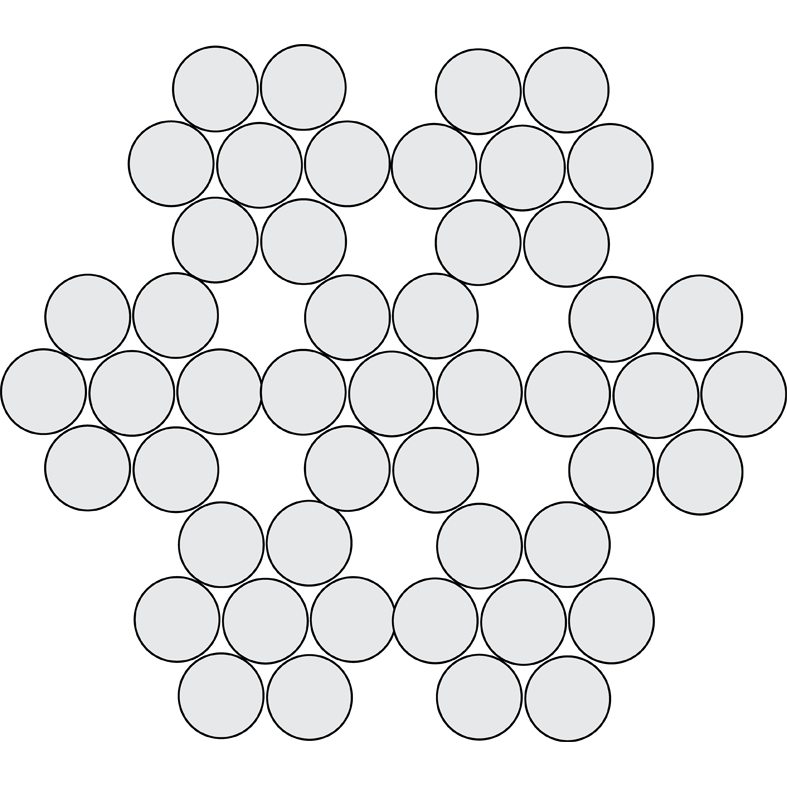

Construction: 7x7 (6+1) WSC
Finish: Stainless Steel 316
Lay: Right Hand Regular Lay
Load Bearing Outer Wires: 42
Fill Factor: 0.55
Tensile Grade: 316
Minimum Breaking Strength: 480 lbs.
* Use of swivel is Not Permitted.
Available cut to order from a bulk length.
For 7x7, and 7x19 catalogue pages: Click Here
For complete PowerStrand Wire Rope Catalogue: Click Here (13.3 MB)
! ! ! Not to be used for Aircraft ! ! !
Country of Origin
Manufactured in China
Compliance & Restrictions
US Federal Specification RR-W-410
