1/16 to 3/32 inch 7 x 7 Clear PVC Coated
W/R 7X7-1/16 TO 3/32"
GAC CLEAR PVC COATED
Price per Foot
SKU
W70702BP-CLEAR
Weight
0.011 lb
Price
$0.12
Brand
Mfg. Part #
W70702BP-CLEAR
Tech Specs
1/16 to 3/32 Inch 7x7 Clear PVC Coated Aircaft Cable
6 Outer Strands, PowerStrand Wire Rope
A commercial grade aircraft cable which is flexible and is PVC coated. Galvanized PVC Coated cables are excellent for outdoor applications with direct sunlight or wet environments. It is used for general multi purpose rigging such as safety cables, conveyor safety cables, security cables and hanger ropes. When applying swaging sleeves or other swaged products, the PVC coating must be stripped and the wire rope is to be free of the coating.

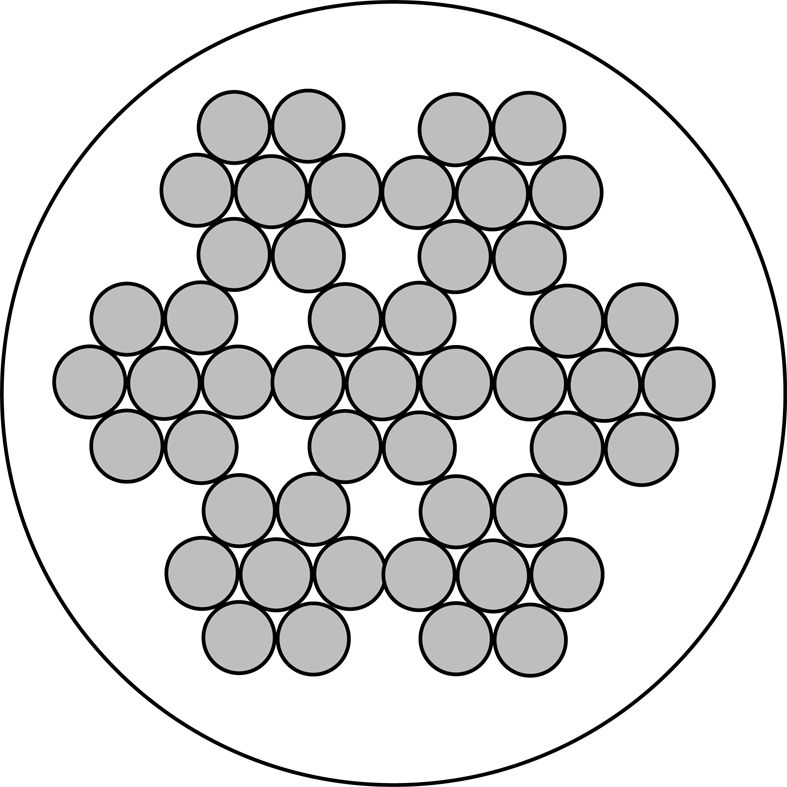

Construction: 7x7 (6+1) WSC
Finish: Galvanized & PVC Coated
Lay: Right Hand Regular Lay
Load Bearing Outer Wires: 42
Fill Factor: 0.55
Tensile Grade: Improved Plow Steel (IPS)
Minimum Breaking Strength: 480 lbs.
* Use of swivel is Not Permitted.
Available cut to order from a bulk length.
For PVC Coated catalogue page: Click Here
For complete PowerStrand Wire Rope Catalogue: Click Here (13.3 MB)
! ! ! Not to be used for Aircraft ! ! !
Country of Origin
Made in China
Compliance & Restrictions
US Federal Specification RR-W-410
