1/4 to 5/16 inch 7 x 19 White PVC Coated
W/R 7X19-1/4TO5/16" GAC WHITE PVC COATED
Price per Foot
SKU
W71908BP-WHITE
Weight
0.133 lb
Price
$0.59
Brand
Mfg. Part #
71908WP
Tech Specs
1/4 to 5/16 Inch 7X19 White PVC Coated
A commercial grade aircraft cable which is flexible and is PVC coated. Galvanized PVC Coated cables are excellent for outdoor applications with direct sunlight or wet environments. It is used for general multi purpose rigging such as safety cables, conveyor safety cables, security cables and hanger ropes. When applying swaging sleeves or other swaged products, the PVC coating must be stripped and the wire rope is to be free of the coating.

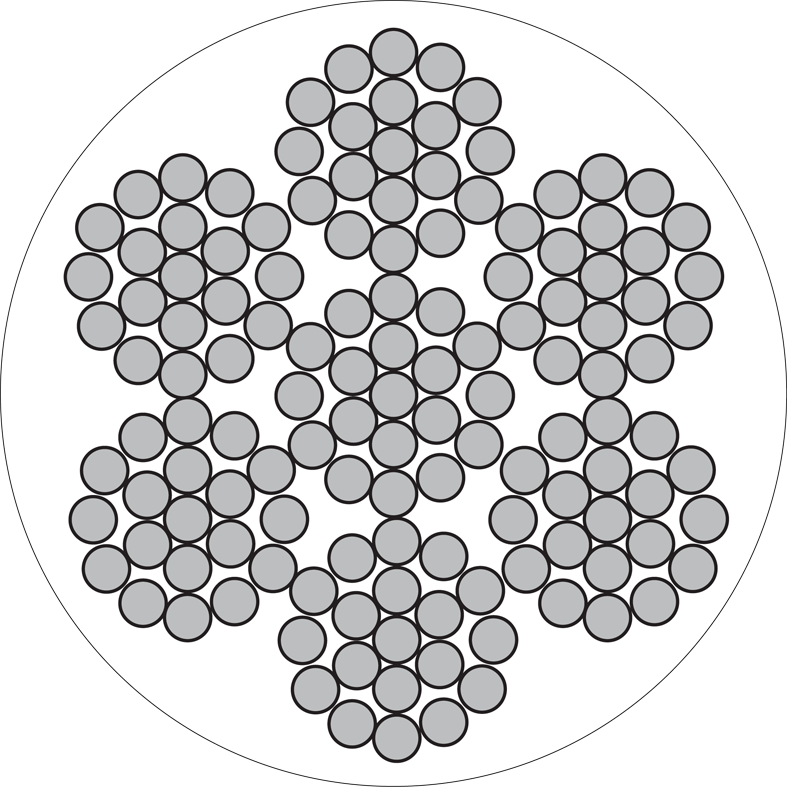

Construction: 7x19 (12+6+1) WSC
Load Bearing Outer Wires: 114
Fill Factor 0.57
Tensile Grade: IPS
Minimum Breaking Strength: 7,000 lbs.
Use of swivel is Not Permitted.
Available cut to order from a bulk length.
For 7x7, 7x19 Aircraft Cable information: Click Here
For complete PowerStrand Wire Rope Catalogue: Click Here(4.3 MB)
! ! !Not to be used for Aircraft! ! !
Country of Origin
Made in China
