3/16 to 1/4 inch 7 x 19 SAC 316 Clear PVC Coated
W/R 7X19-3/16 TO 1/4"
SSAC 316 CLEAR PVC COATED
Price per Foot
SKU
W71906SP-CLEAR
Weight
0.081 lb
Price
$0.89
Brand
Mfg. Part #
W71906SP-CLEAR
Tech Specs
3/16 to 1/4 Inch 7x19 Clear PVC Coated Stainless Aircaft Cable
6 Outer Strands, PowerStrand Wire Rope
A commercial grade aircraft cable which is flexible and is PVC coated. Stainless steel PVC Coated cables are excellent for outdoor applications with direct sunlight or wet environments. It is used for general multi purpose rigging such as stay cables, marine ropes, sailboat lifeline wires, architectural cables and hanger ropes. When applying swaging sleeves or other swaged products, the PVC coating must be stripped and the wire rope is to be free of the coating.

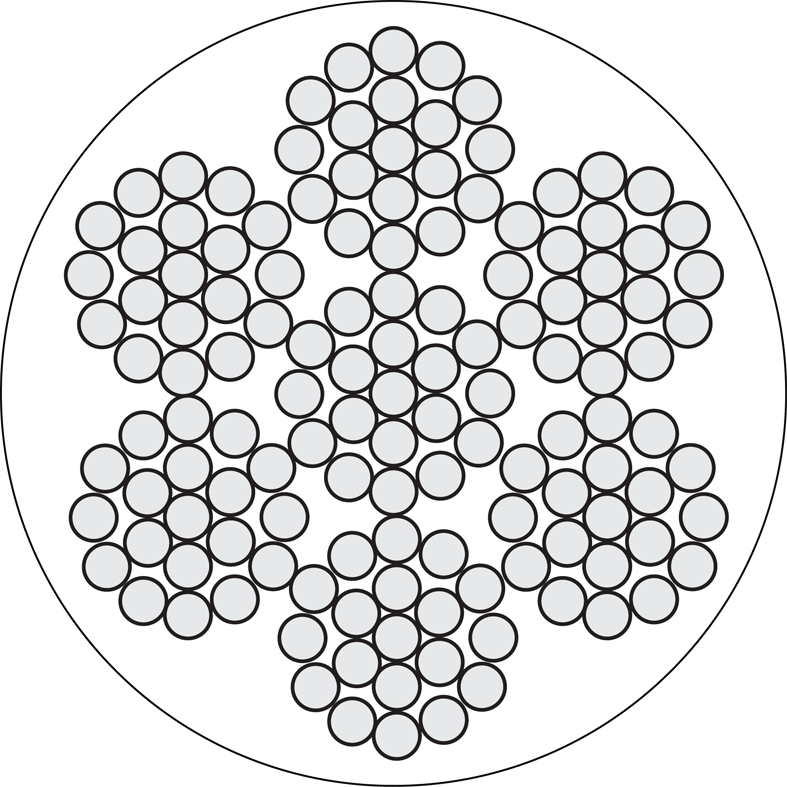

Construction: 7x19 (12+6+1) WSC
Finish: Stainless steel 316 & PVC Coated
Lay: Right Hand Regular Lay
Load Bearing Outer Wires: 114
Fill Factor: 0.57
Tensile Grade: 316
Minimum Breaking Strength: 3,700 lbs.
* Use of swivel is Not Permitted.
Available cut to order from a bulk length.
For PVC Coated catalogue page: Click Here
For complete PowerStrand Wire Rope Catalogue: Click Here (13.3 MB)
! ! ! Not to be used for Aircraft ! ! !
Country of Origin
Made in China
Compliance & Restrictions
US Federal Specification RR-W-410
