3/16 to 5/16 inch 7 x 7 SAC 316 White PVC Coated
W/R 7X7-3/16 TO 5/16"
SSAC 316 WHITE PVC COATED
Price per Foot
SKU
W70706SP-WHITE
Weight
0.1 lb
Price
$0.74
Brand
Mfg. Part #
W70706SP-WHITE
Tech Specs
3/16 to 5/16 Inch 7x19 White PVC Coated Stainless Aircaft Cable
6 Outer Strands, PowerStrand Wire Rope
Coated lifeline wire ropes are used mainly for safety lifeline wires on yachts, power / sail boats and other guard rail applications. The PVC Coating provides protection against the sunlight, while the increased Coating provides extra protection against rubbing and scrubbing, and the 7 x 7 construction provides a stiffness and low stretch that is required for guard rails. When applying swaging sleeves or other swaged products, the PVC coating must be stripped and the wire rope is to be free of the coating.

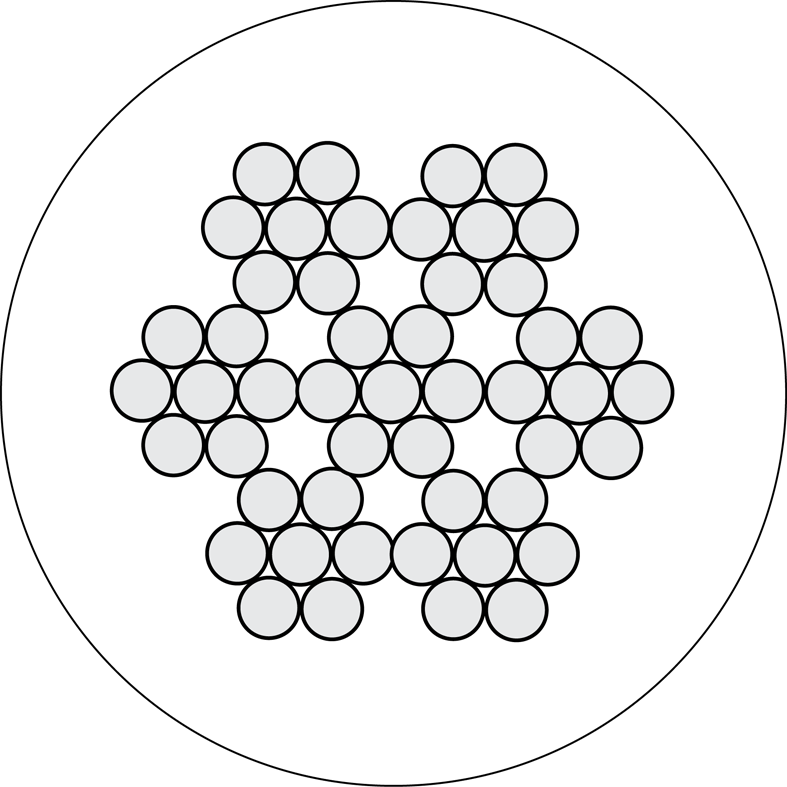

Construction: 7x7 (6+1) WSC
Finish: Stainless steel 316 & PVC Coated
Lay: Right Hand Regular Lay
Load Bearing Outer Wires: 42
Fill Factor: 0.55
Tensile Grade: 316
Minimum Breaking Strength: 3,100 lbs.
* Use of swivel is Not Permitted.
Available cut to order from a bulk length.
For PVC Lifeline catalogue page: Click Here
For complete PowerStrand Wire Rope Catalogue: Click Here (13.3 MB)
! ! ! Not to be used for Aircraft ! ! !
Country of Origin
Made in China
Compliance & Restrictions
US Federal Specification RR-W-410
