ProCraft Grade 100 2-Leg Adjustable Chain Slings
These chain slings feature the Yoke GrabEX-100 master links with integrated shortening hooks. There is no reduction in working load limit when these shortening hooks are used.
|
|
Working Load Limit of New Sling | Length (Reach) | ||||||||
|
Chain Size |
Description/End Fitting | @ 60° to Load | @ 60° to Load in Choker Hitch | 6 FT | 8 FT | 12 FT | 16 FT | 20 FT | 24 FT | 30 FT |
|

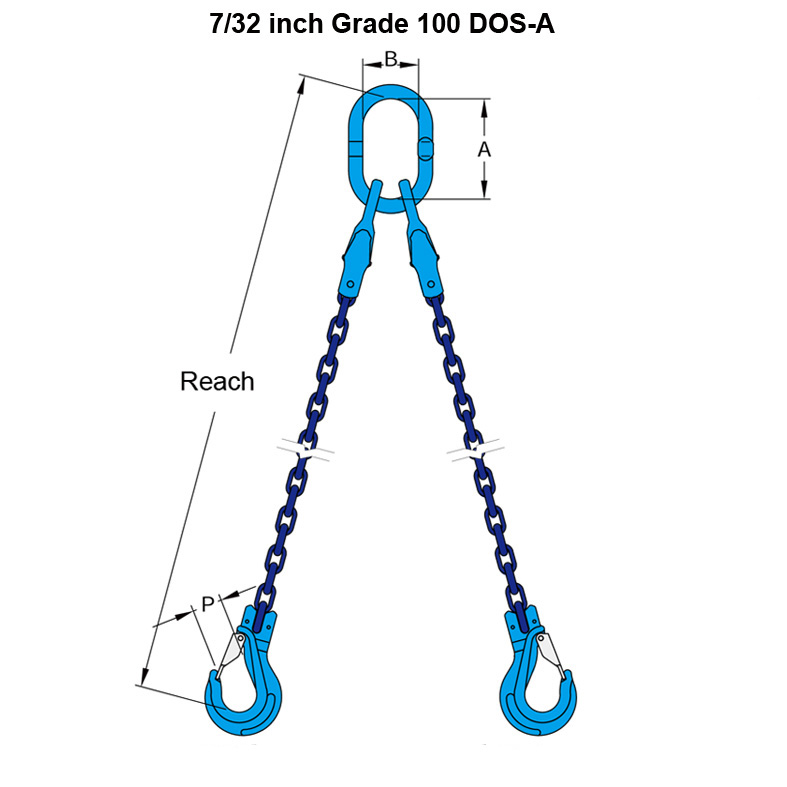

7/32 inch (6mm) |
Master Link with Adjusters on Top, Latched Sling Hooks on Bottom ends | 4,500 lbs. | 3,500 lbs. | $267.00 | $312.00 | $364.00 | $410.00 | $455.00 | $523.00 | |
|

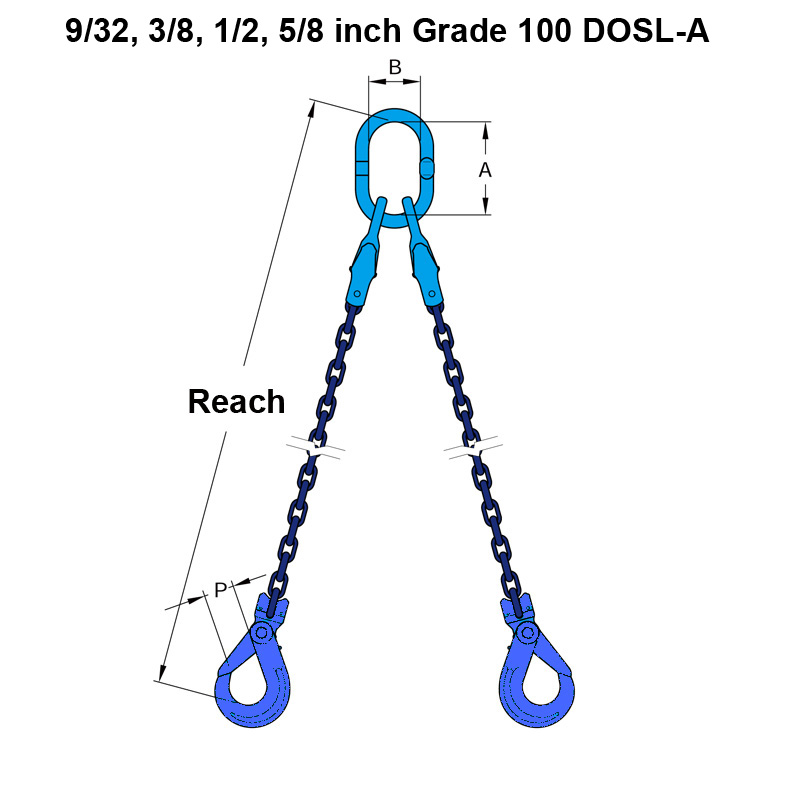

9/32 inch (7mm) |
Master Link with Adjusters on Top, Self Locking Sling Hooks on Bottom ends | 7,400 lbs. | 6,100 lbs. | $341.00 | $359.00 | $395.00 | $438.00 | $474.00 | $510.00 | $564.00 |
|
3/8 inch (10mm) |
Master Link with Adjusters on Top, Self Locking Sling Hooks on Bottom ends | 15,200 lbs. | 12,300 lbs. | $468.00 | $495.00 | $549.00 | $611.00 | $666.00 | $720.00 | $801.00 |
|
1/2 inch (13mm) |
Master Link with Adjusters on Top, Self Locking Sling Hooks on Bottom ends | 26,000 lbs. | 20,800 lbs. | $772.00 | $819.00 | $913.00 | $1,010.00 | $1,104.00 | $1,197.00 | $1,337.00 |
|
5/8 inch (16mm) |
Master Link with Adjusters on Top, Self Locking Sling Hooks on Bottom ends | 39,100 lbs. | 31,300 lbs. | $1136.00 | $1196.00 | $1316.00 | $1442.00 | $1562.00 | $1682.00 | $1862.00 |
Working Load Limit based on 4 to 1 safety factor
