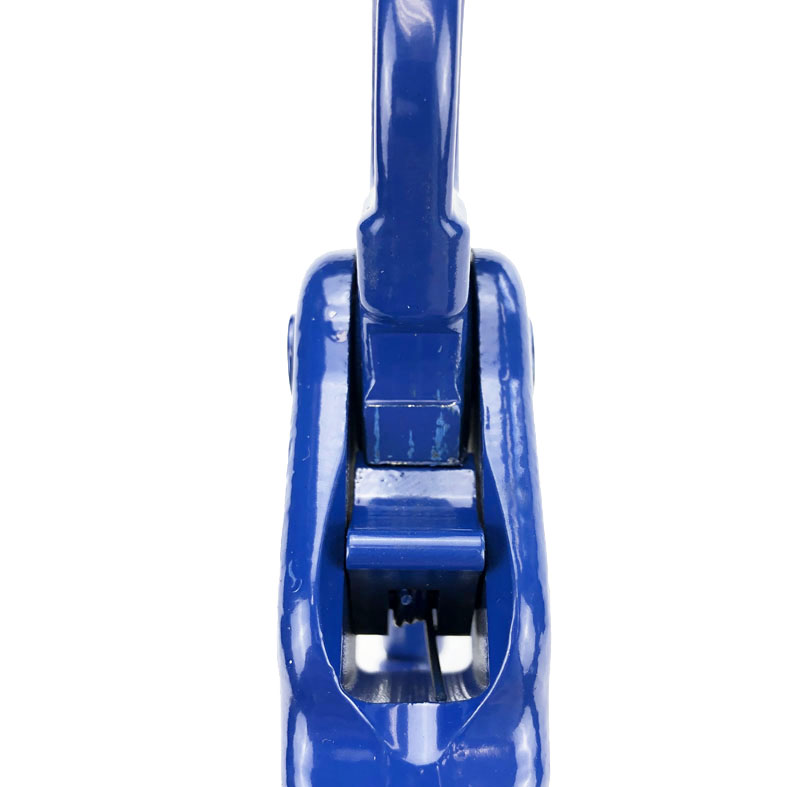

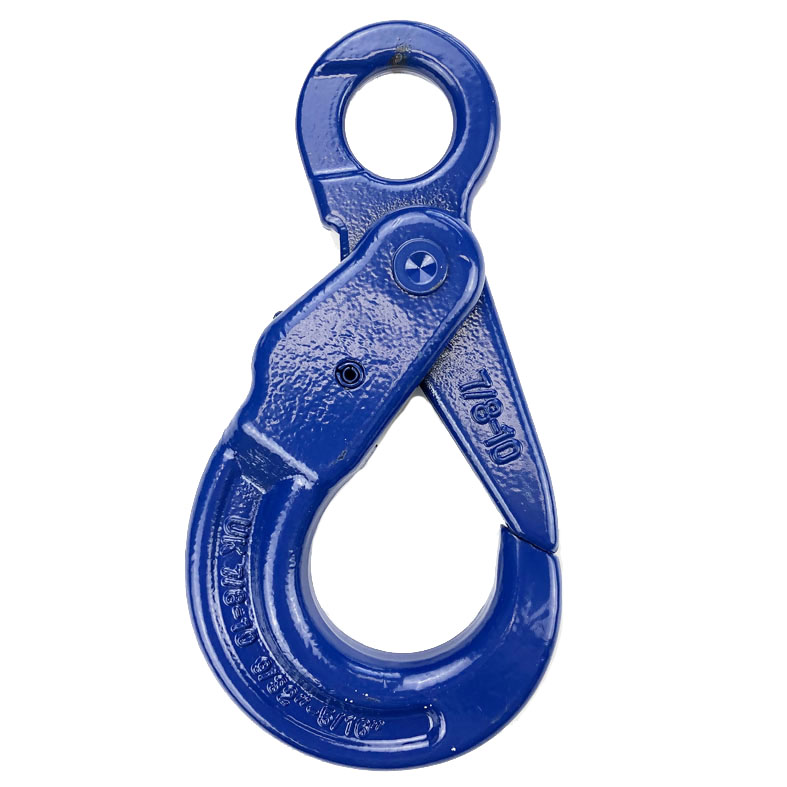

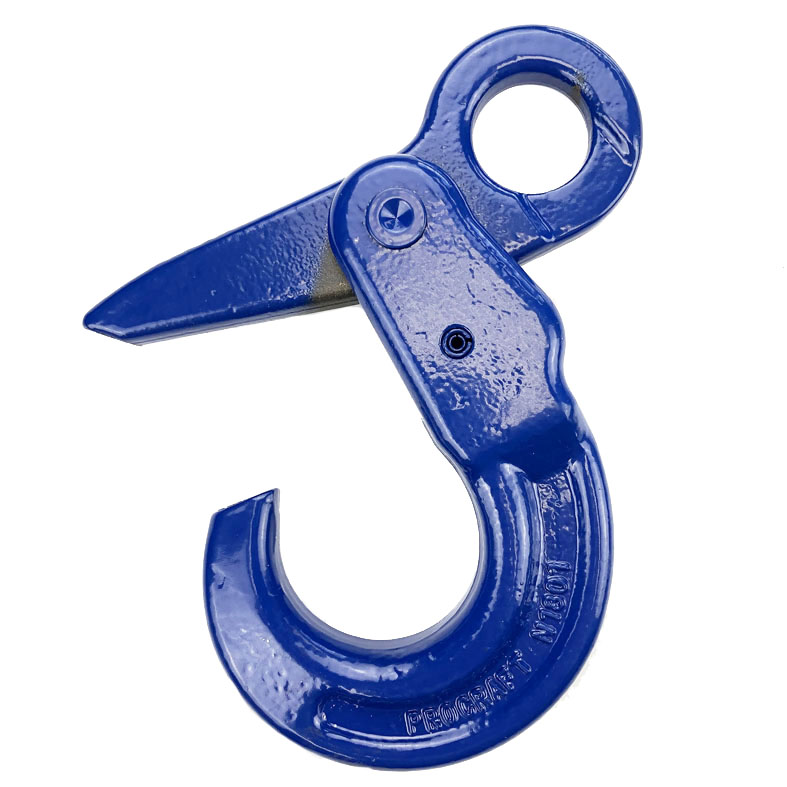

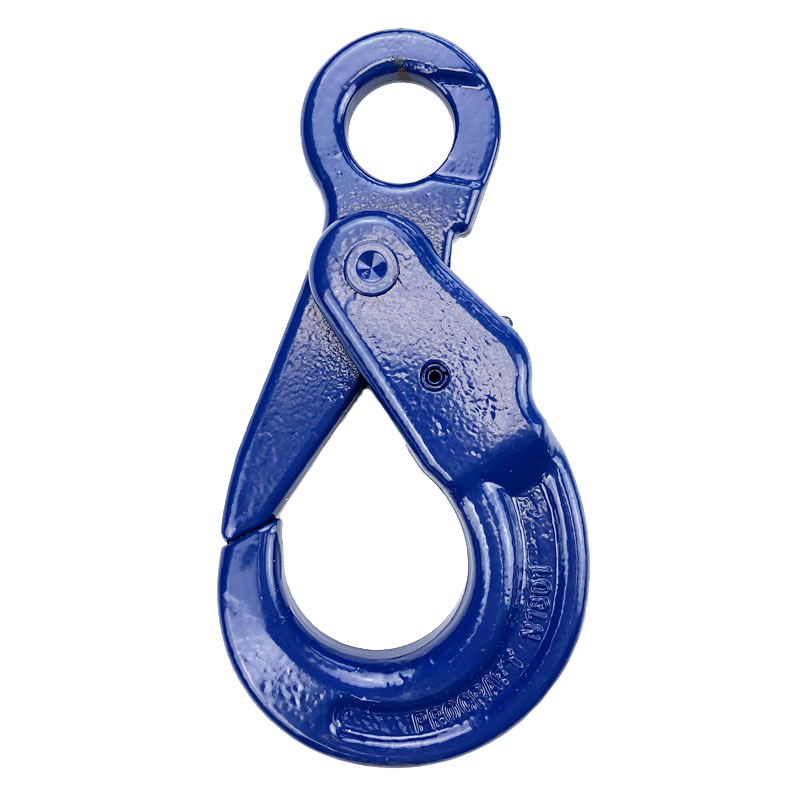

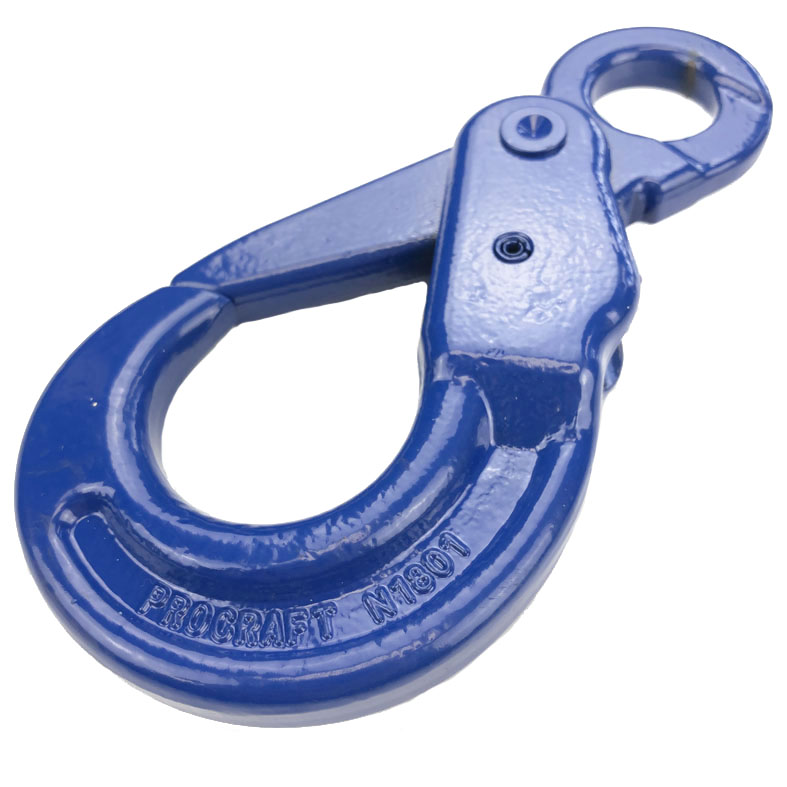

HOOK EYE G100 P620H 9/32-5/16"
PROCRAFT EYE SELF LOCKING HOOK
Tech Specs
9/32 & 5/16 inch ProCraft Grade 100 Eye Type Self Locking Hooks
These self locking hooks are suitable for overhead lifting in a wide variety of applications. Commonly used with overhead lifting chain assemblies, but with the oversized eye it can be used for wire rope bridles, web slings bridles and synthetic rope assemblies. The trigger kit is recessed for increased safety, and will only release when unloaded. The hook will close when loaded and will remained closed until unloaded. Manufactured and proof load tested to EN 1677-4, and individually marked with manufacturer and batch code numbers that complies with or exceeds ASTM standards.
WLL 5,700 Pounds for chain with a 4:1 factor of safety
WLL 4,560 Pounds for wire rope and synthetic slings with a 5:1 factor of safety
Dimension sheet Click Here
Country of Origin
Made in Taiwan
Repair Parts
Trigger kit replacement part Click Here
