Gas-Powered Pulling Winch - Maximum Pulling Force: 1545 lbs.
Winch Applications: Forestry, Hunting
Compact Power

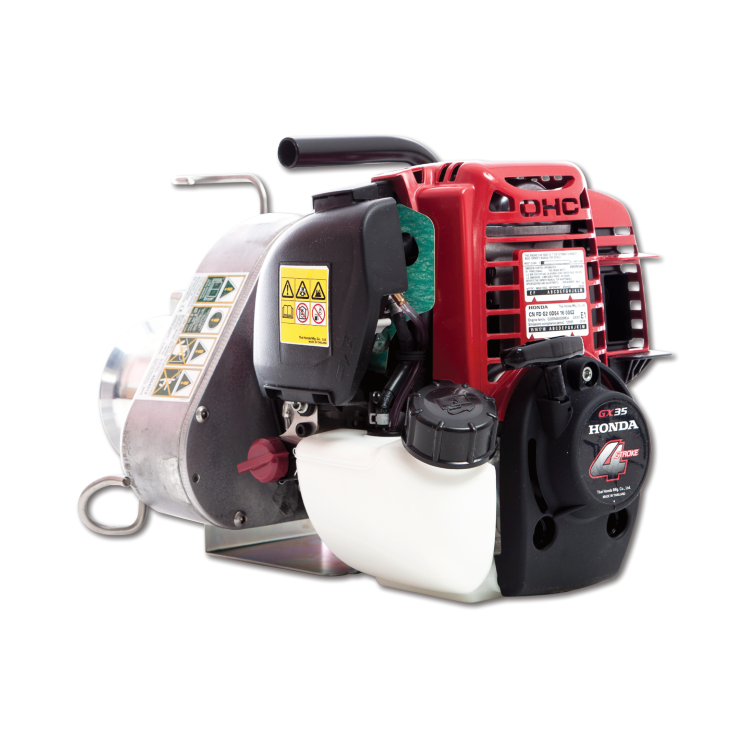

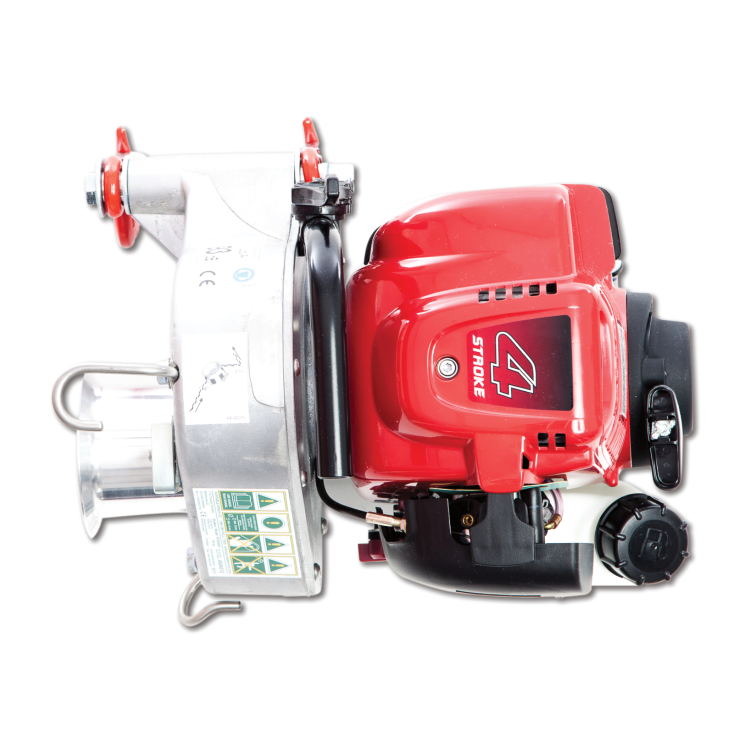

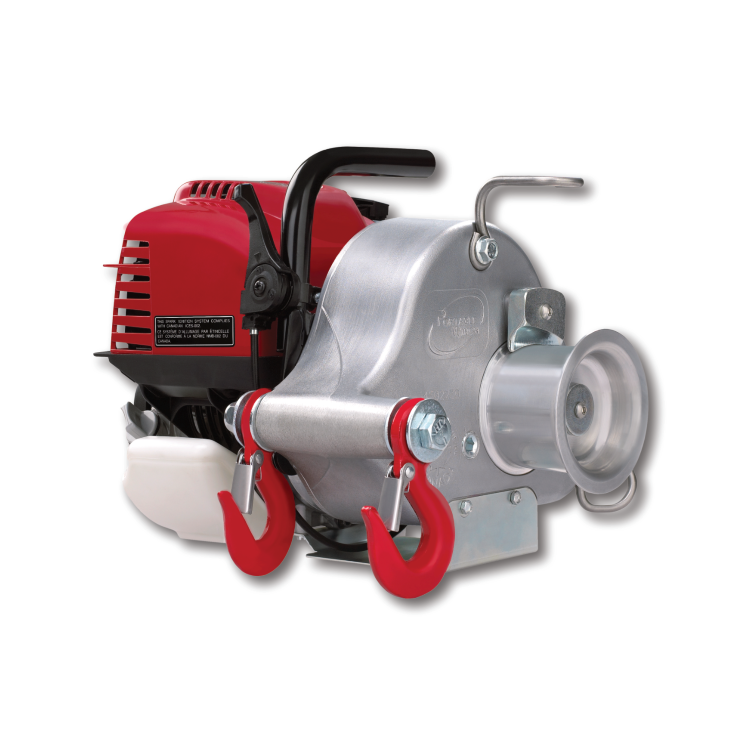

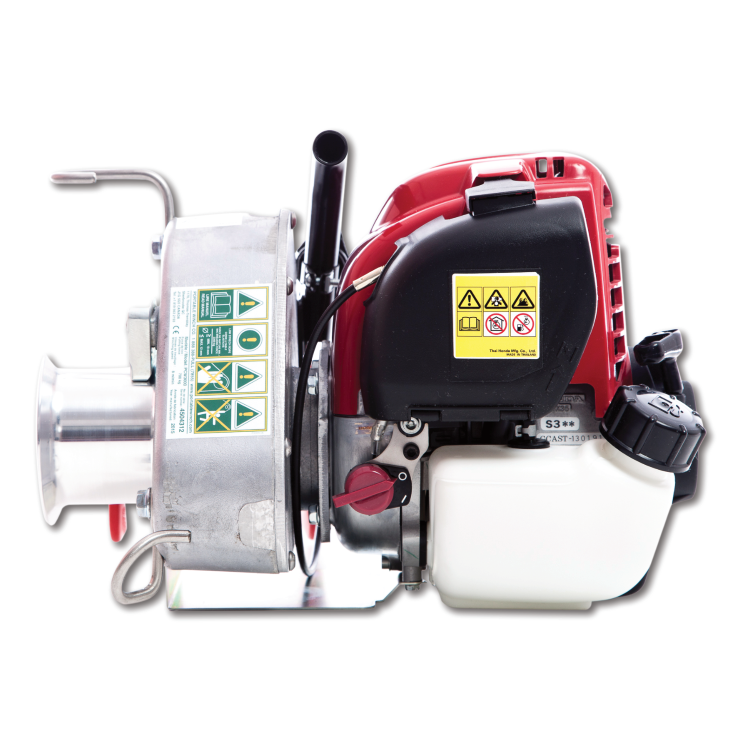

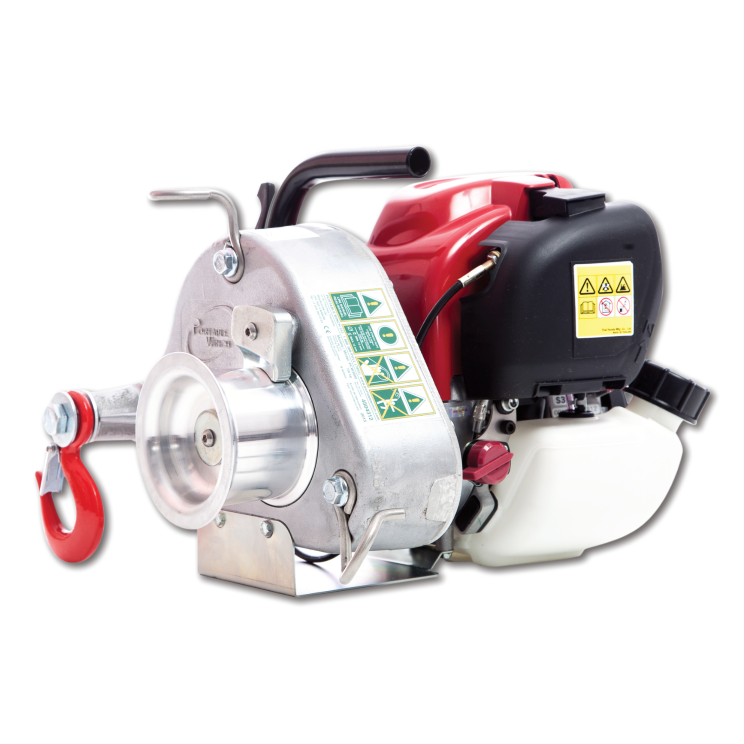

The PCW3000 capstan winch is nothing short of a tour de force to deliver incredible pulling power, in the smallest format designed by Portable Winch Co. Coupled with the 360° inclinable GX35 Honda engine, it will be your best companion no matter where your next mission is.
Design
The PCW3000 was designed to meet the demand for an even more portable model than the original winch PCW5000. Its capstan drum concept allows users to pull loads over an unlimited length of rope, without loss of power, in a simple, effective, and safe way. In addition, a wide range of accessories has been designed specifically to carry it over long distances such as the Molded Pack Frame and Transport Case!
Performance
The proven reliability of Honda engines, combined with Portable Winch ingenuity, makes the PCW3000 a formidable competitor on the market. The winch can pull up to 700 kg without mechanical advantage. By adding a pulley system, you can go up to five times (5x) the pulling force. That means, with two double pulleys, you could move up to 3,500 kg!
Details:
Maximum Pulling Force: 1545 lbs.
Weight: 20.9 lbs.
Speed: 33ft/minute
Engine: Honda 4-stroke GX-35 CC - ALL POSITIONS Air Cooled 1.0 kW - 1.3 HP @ 7000 tr/min
The ideal winch for hunters!
This winch is powered by Honda’s 4-stroke GX-35cc engine. In addition to being extremely popular with hunters looking for a lighweight, compact tool, this model is also appreciated by occasional loggers.
Weighing only 9,5 kg, it offers 700 kg of pulling power single line. EFFICIENT and very easy to carry, you’ll be equipped to retrieve your game, no matter the conditions.
Use the PCW3000 Portable Capstan Winch with any length of 3/8 inch double braided polyester low stretch rope!
It is so easy to use! The rope is tied to the object to be moved and wound three (or four) times around the capstan drum. When the engine is running, the capstan drum rotates continuously and the friction created by pulling on the free end of the rope pulls the object.
Portable Winch Co. also offers a range of transport accessories in order to facilitate your movements, even over long distances! Whether you use the molded case (PCA-0102*) attached to the backpack (PCA-0104*) or strapped onto your off-road vehicle, your outing in the woods will be enhanced.
*Accessories sold seperately.

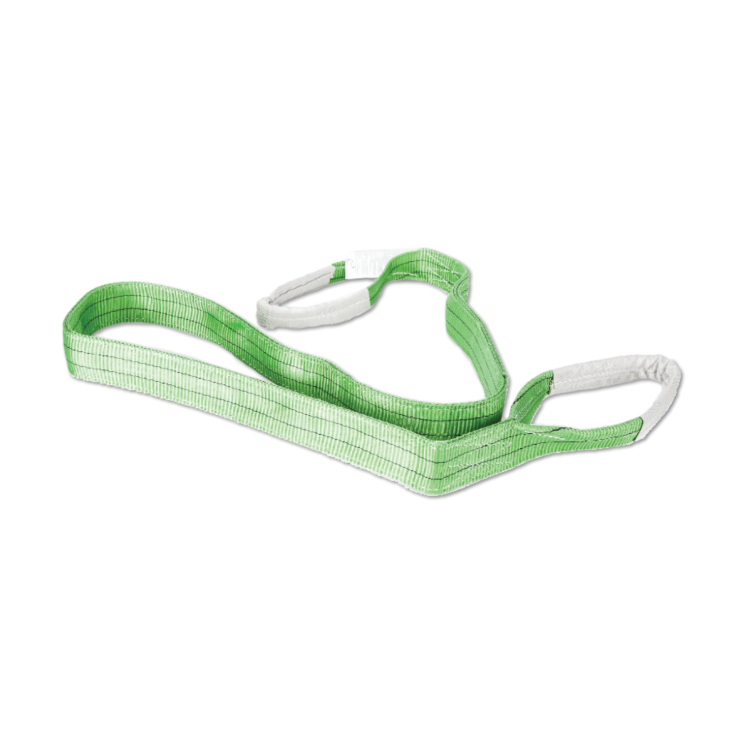

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch.
