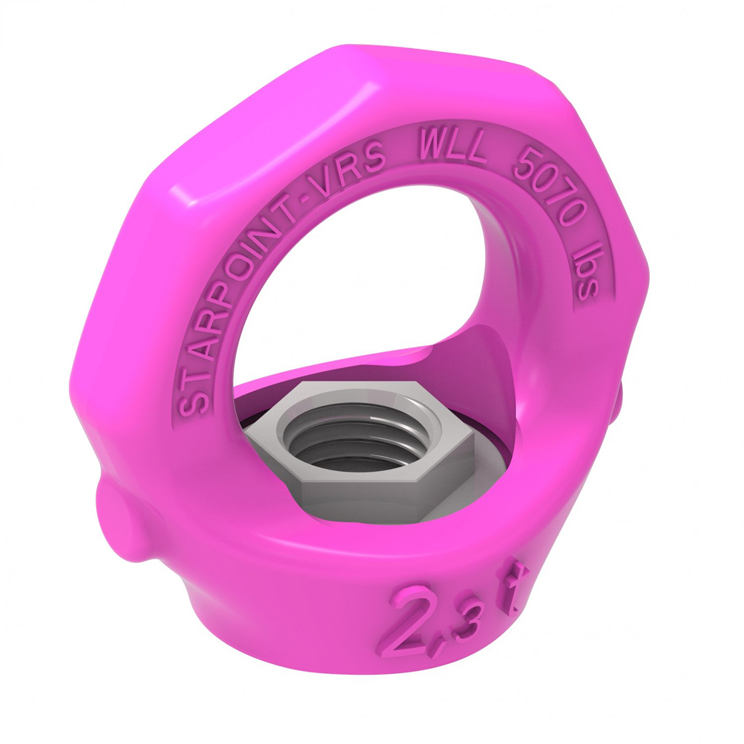

12mm Rud VRM Starpoint Eye Nut
EYE NUT RUD VRM 12mm
STARPOINT 12mm RUD EYENUT
SKU
28RUD-VRM-M12
Weight
0.4 lb
Price
$129.88
Brand
Mfg. Part #
7990312
Product Type
Tech Specs
12mm RUD VRM Starpoint Eye Nut
- Pivots 360° for an easy adjustment in load direction.
- Quick and easy installation with just one bolt connection, hand tightening with appropriate wrench is sufficient for a singular lift
- Clear marking of the minimum WLL.for all directions
- Working load limit 1,650 pounds (750kgs)
- 4:1 Safety factor.
- Full working load in all directions.
- Range of rotation 360°.
- Maximum operation temperature range WITHOUT reduction of WLL -40°–100°C
The WLL statement corresponds to the minimum WLL in all loading directions. Higher WLL possible when location and installation is optimised (compare WLL chart/product information).
Component according to the test criterias of BG/DGUV “GS-OA-15-04”.
NOTE: WLL of the VRM are only in effect when using a quality grade 10.9 threaded bolt.min.

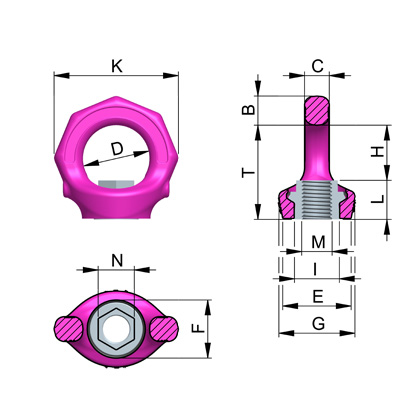

Dimension details Click Here
User instructions including WLL Chart Click Here
Country of Origin
Made in Germany
