SQC330 Square Link Singles with Cams
TIRE SIN SQUARE WC SQC330
SQUARE LINK SINGLES WITH CAMS
Price per Pair
SKU
14T1-SQ33009C
Weight
51 lb
Price
$182.63
Brand
Mfg. Part #
SQC330
Tech Specs

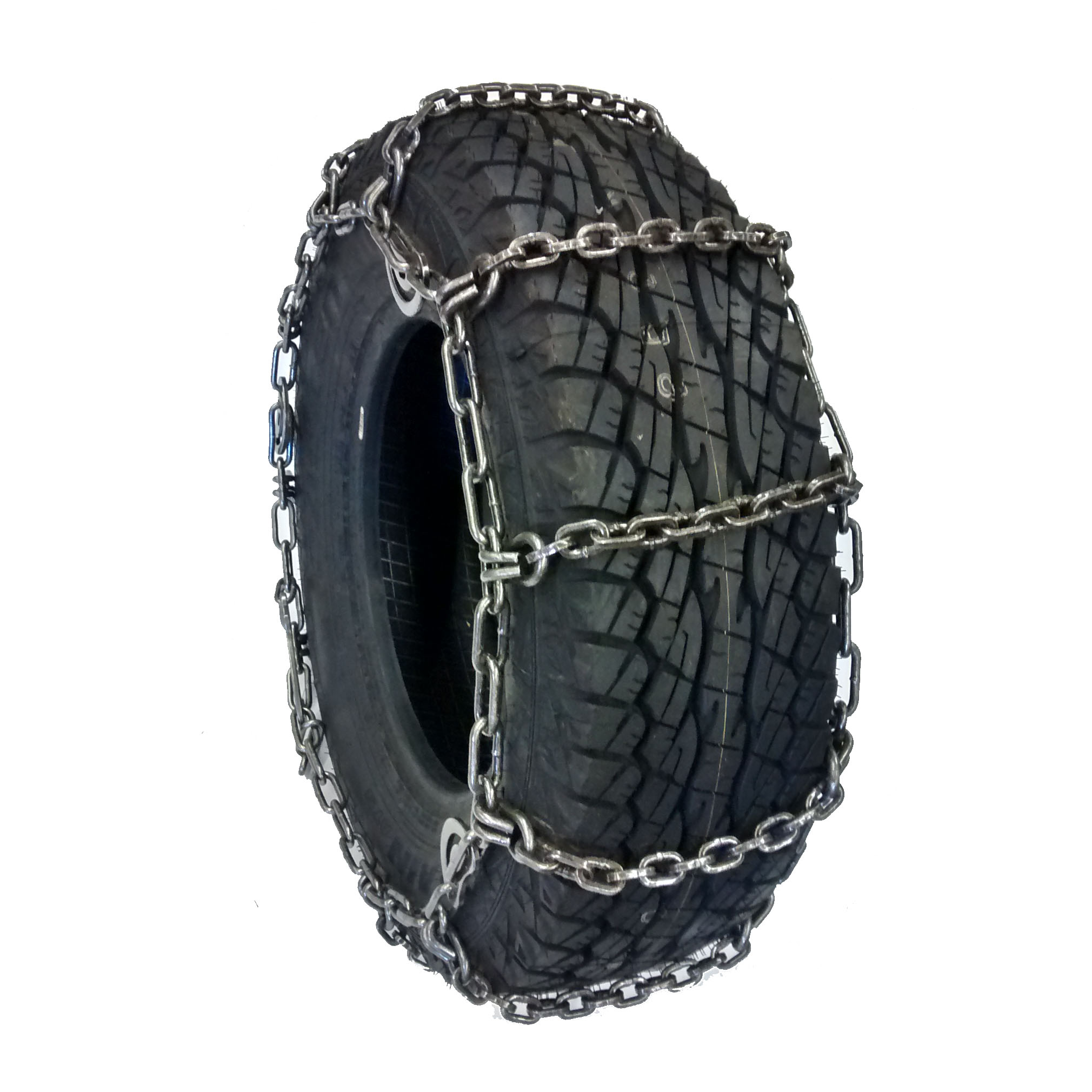

9/32 inch (7mm) SQC330 Procraft Alloy Square Link Singles with Cams
These chains are made from alloy steel drawn to square profile and intended for use in snow, ice, and mud. Chains come equiped with cams. Cams allow for easy tensioning of chains.
Made to Canadian specifications, these chains do not conform to an SAE class as they are overbuilt, and components used are all oversized. Ensure vehicle has sufficient clearance to use these chains. Made from Alloy steel and case hardened, these chains are made to last. The oversized material make for a good height profile off the tire, ride is not as rough as V-bar, but still rough compared to a pattern chain.
Typical uses would be for extended highway use in snow and ice. Industrial applications would be for highway tow trucks, and road clearing. The square profile is perfect for grip on ice, and the case hardened alloy steel will yield the longest service life. Chains are also reversible for extended service life.
This item fits the following tires:
33x12.5-15
285/75-16, 295/75-16, 315/70-16
33X12.50-16.5
305/60-17, 305/70-17
285/75-18, 295/70-18, 305/60-18, 305/65-18, 305/70-18, 325/60-18, 34x12.50-18
265/60-20, 275/60-20, 275/65-20, 285/60-20, 305/55-20
These chains are fitted with 3 cams per tire for easier tensioning of chains. Simply install chain tight with cams in extended position, then close the cams as necessary to take up any residual slack. It is not neccessary to close all the cams. Just close cams to fit chains snuggly, but not so tight that chains exert pressure on the tire itself.
Cam in Open Position Insert Cam T-wrench Turn Clockwise to Close Cam in Closed Position
!!! Due to variations in tire manufactures, and the geometry of the suspensions in many cars - it is imperative that you find out that there is enough clearance for chains to be used. It is also important to install chains prior to actual use and examine for proper fit. If using on front wheel drives it is neccessary to turn wheels all the way to the left, and right to make sure chains will clear all components, and body work when car is in motion. !!!
Country of Origin
Made in China
