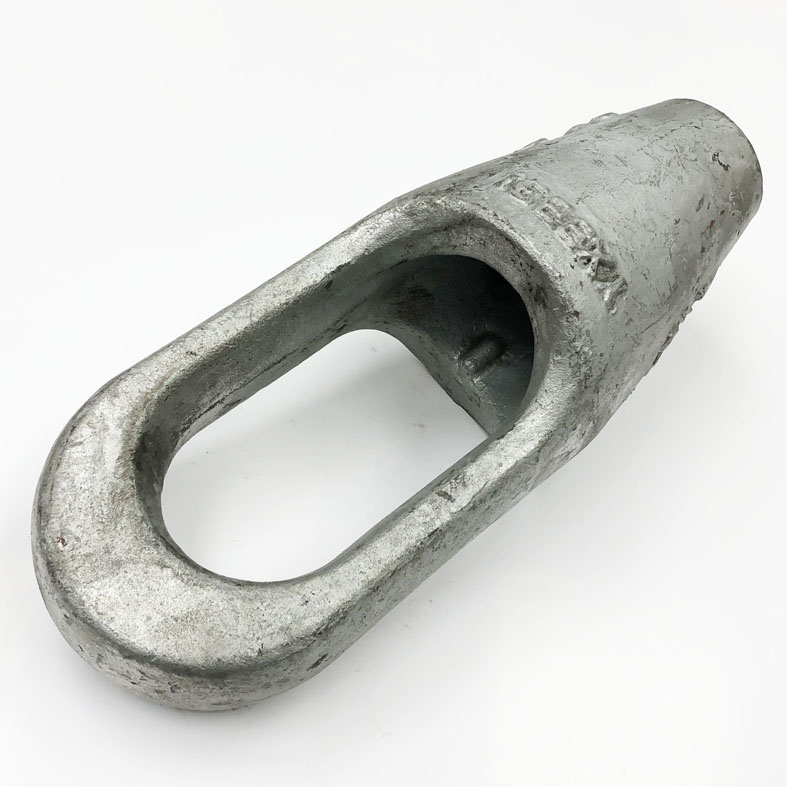

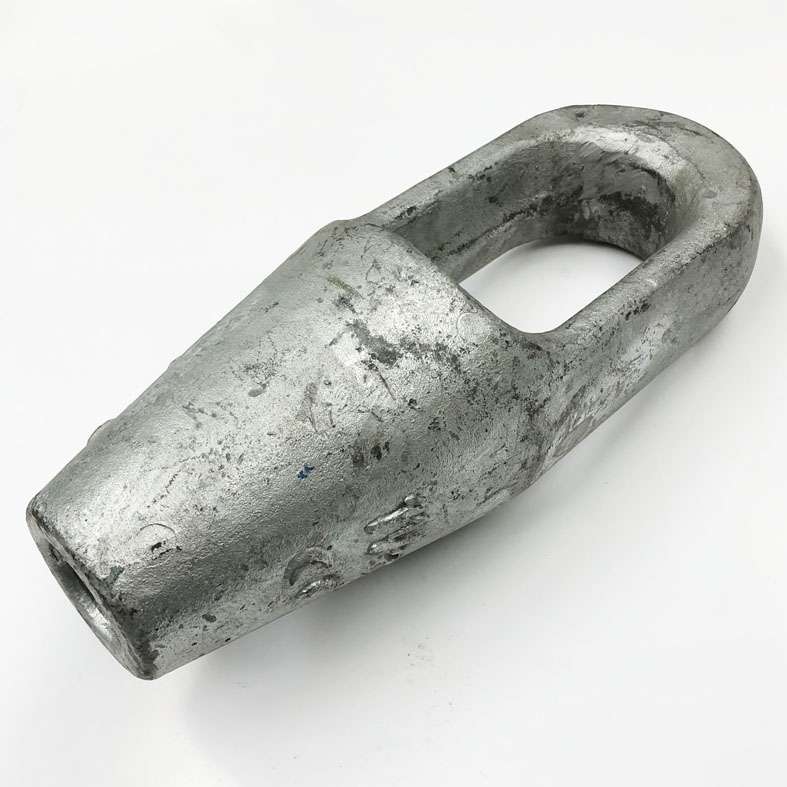

1-1/2 inch RopeBlock Galvanized Closed Spelter Sockets

1-1/2 inch (37-39mm) RopeBlock Galvanized Closed Spelter Sockets

Design
Spelter socket loading mechanisms characterize themselves as very complex and was researched intensively by Ropeblock using strain gauge testing and Finite Element research. A true and full understanding of the non-linear behavior is required to pursue the engineering optimum. This optimum was completed in geometry with our market first anti-rotation and negative force nose and low notch factor design for improved fatigue service. The full range of Ropeblock sockets are type approved by DNV GL and LRS.

Material

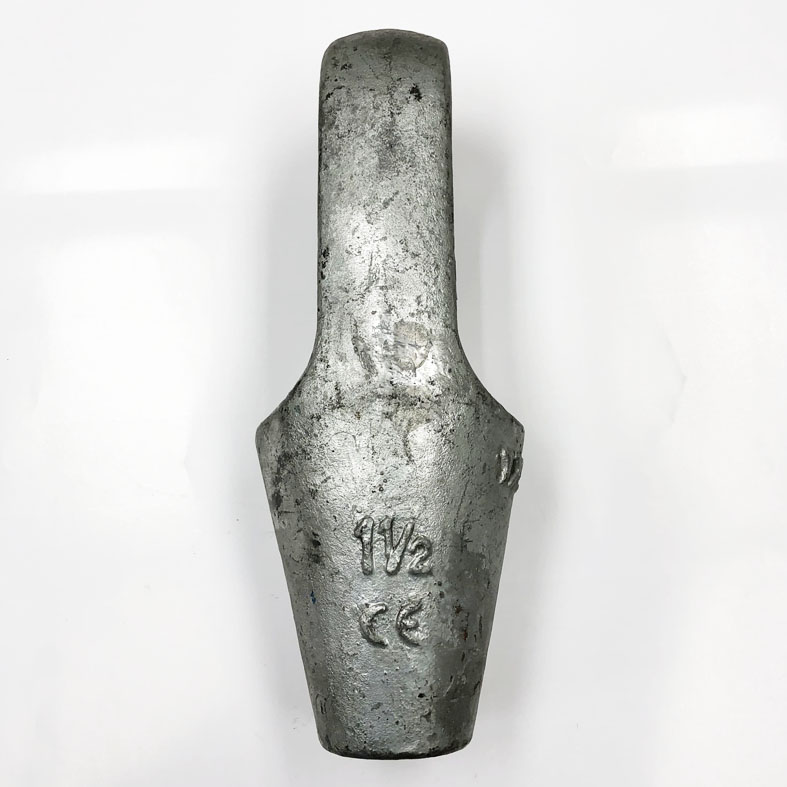

Our standard socket range is available in quenched and tempered cast steel with mechanical properties meeting today’s tough market requirements. All our sockets are suitable for usage in a sub-zero temperature environment. Materials meet or exceed an impact value of > 42 Joule / -20°C Charpy-V. The Ropeblock socket is marked with size, wire rope diameter and batch or serial number. All parts are fully traceable to their certificate by batch or serial number marked on each component.

Size:  1-1/2 inch (37-39mm)

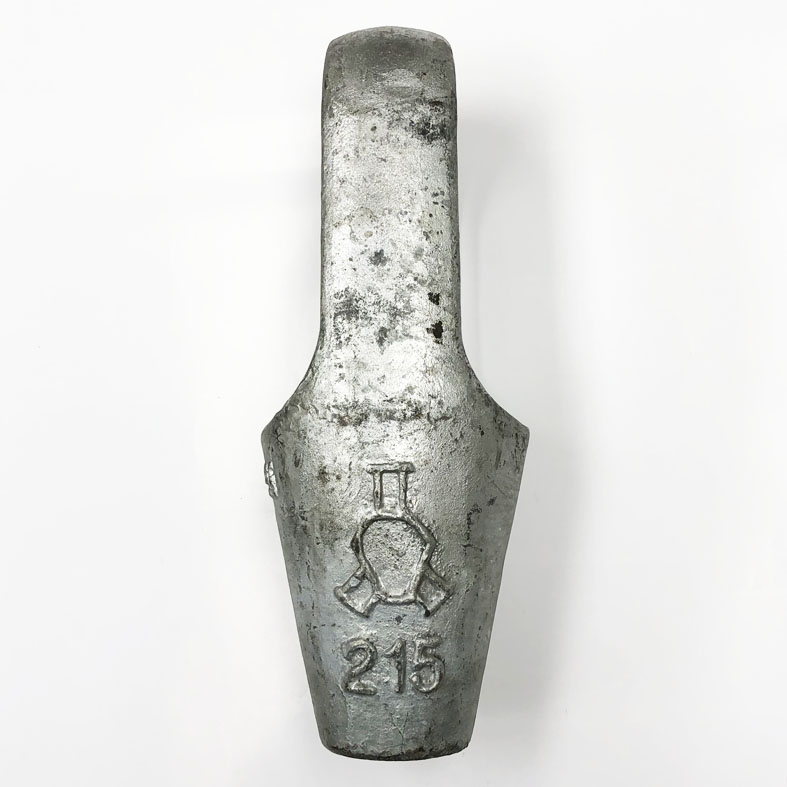

Model Number: CSS 215
Minimum Breaking Load: 150 metric tons

Approximate Socket Resin Volume Required:  426 cc

For Dimensions:  Click Here

For Full RopeBlock Socket Catalogue:  Click Here(4.3 MB)
