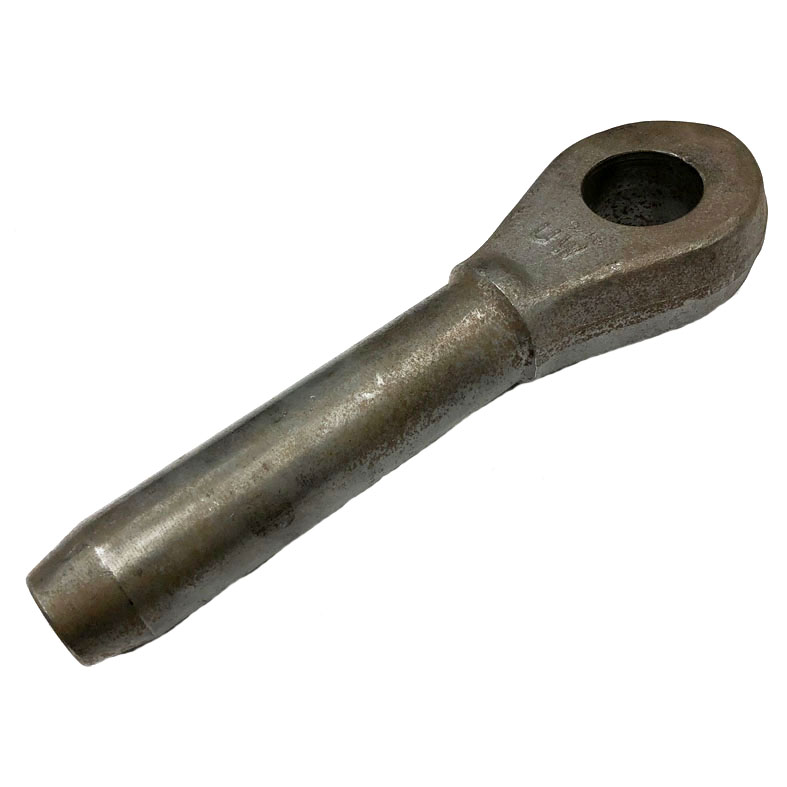

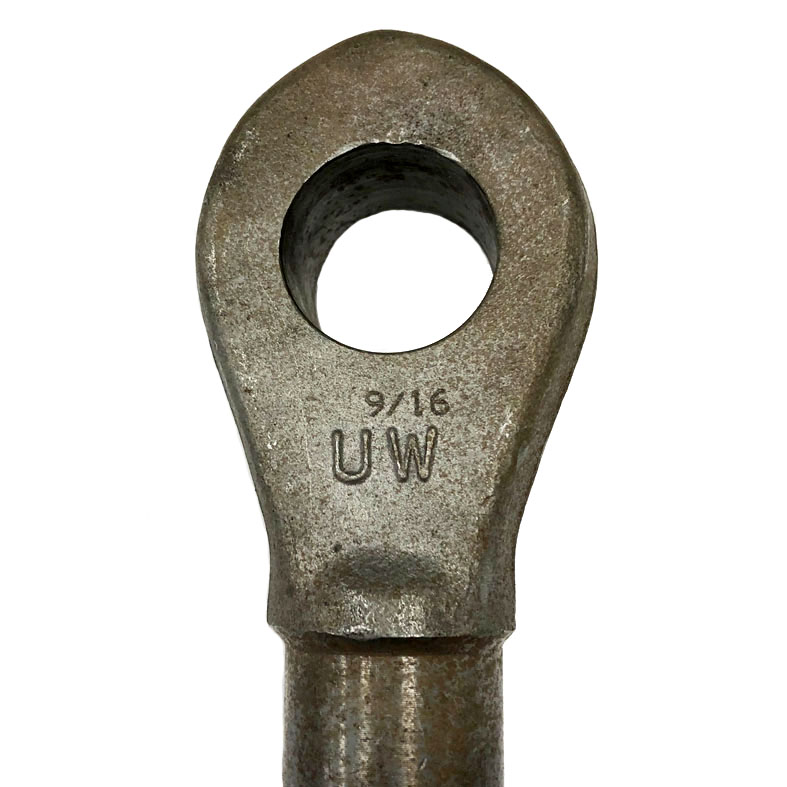

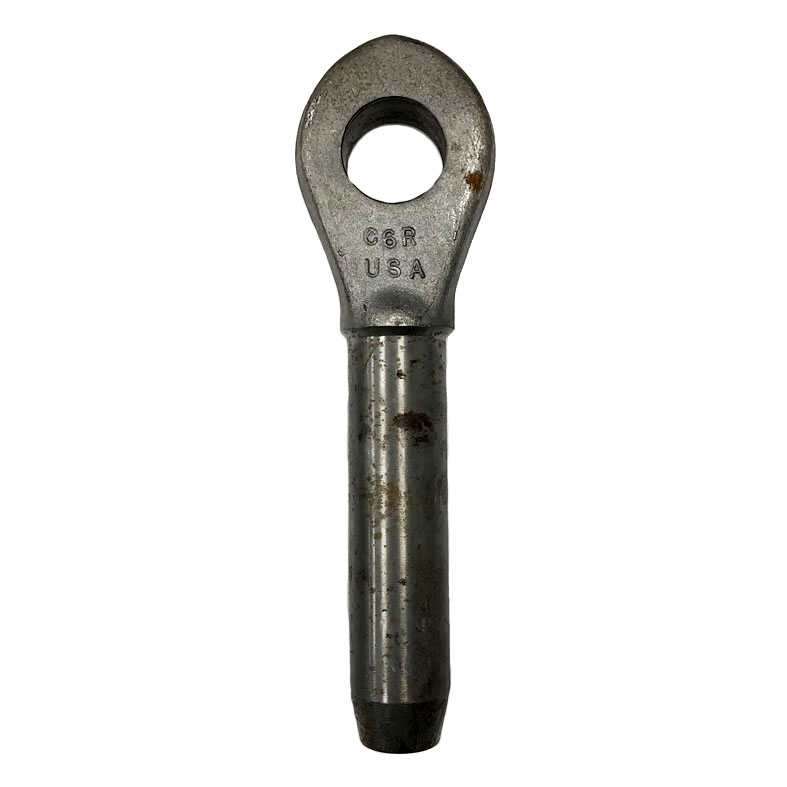

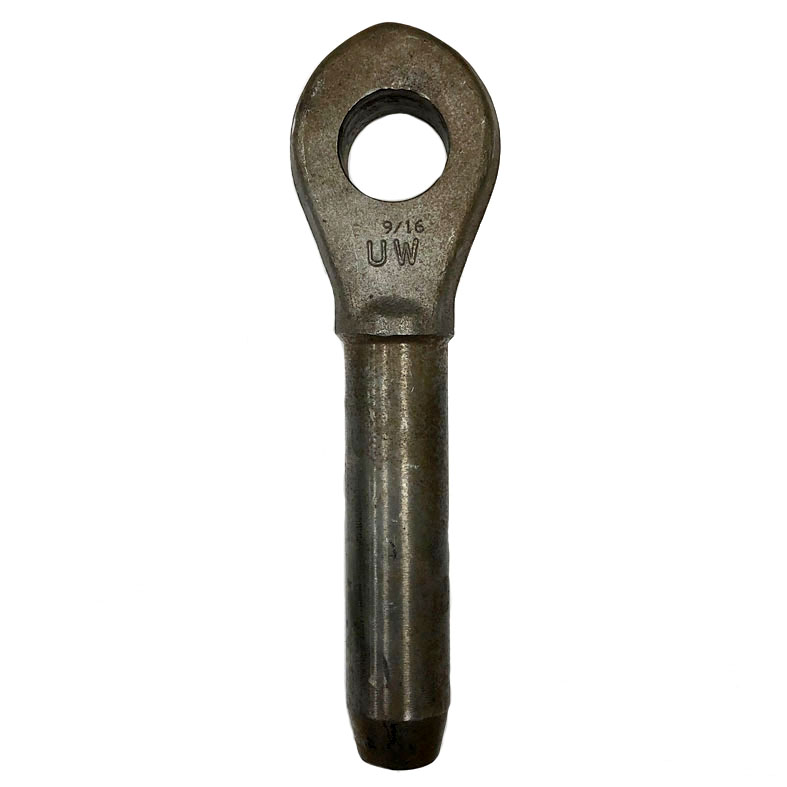

9/16 inch Closed Swage Sockets

9/16 inch Closed Swage Sockets - Carbon Steel

Upson-Walton™ Closed Swage Sockets
-Forged from special C-1035 steel, fine grain, special bar quality.
-Spheroidized annealed for cold swaging.
-Sockets properly applied have an efficiency rating of 100%. This rating is based on the catalog strength of wire rope.

After Swage Diameter:
Minimum:  1.115 inches
Maximum:  1.160 inches

For Dimensions:  Click Here

CAUTION

Swage Sockets are recommended for use on 6 x 19 or 6 x 37 IPS or XIP (EIP), XXIP (EEIP), RRL, or IWRC wire ropes. They are also approved for use on galvanized bridge rope. Before using swage sockets with other type lay, construction or grade of wire rope, it is recommended that the termination be destructive tested and documented to prove the adequacy of the assembly.  It is also recommended that all swage socket terminations be proof loaded.  Proof Load shall not exceed 50% of rope catalogue breaking strength.
